- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
C90T, FCP 200
-
Place of Origin:
-
Henan, China
-
Power:
-
9.6KW
-
Dimension(L*W*H):
-
965*600*1370mm
-
Weight:
-
360 kg
-
Engine:
-
9.6kw, Gasoline/Diesel
-
Product Name:
-

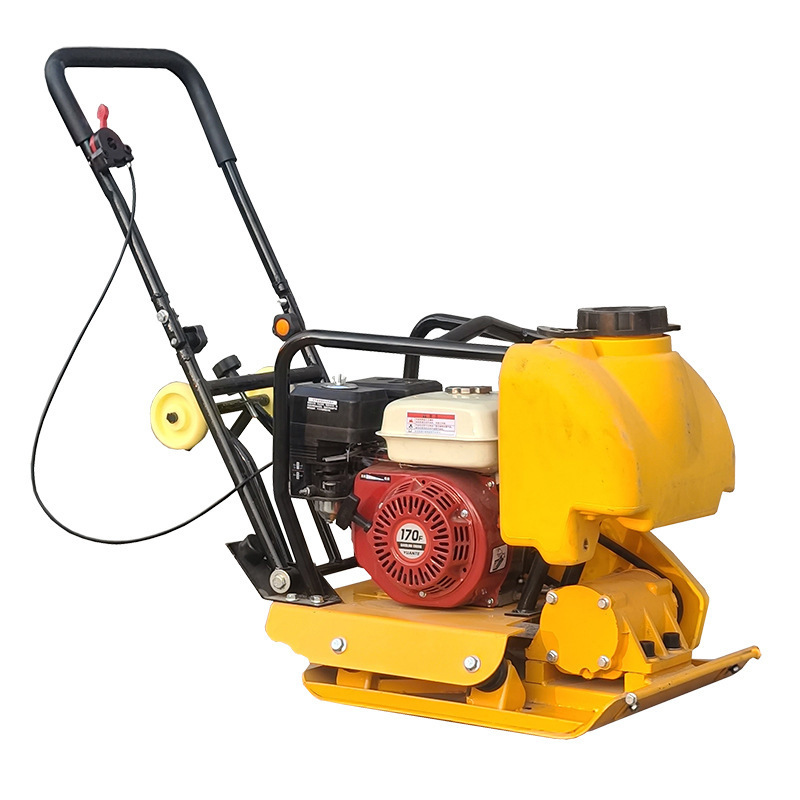

Vibratory Plate Compactor
-
Engine type:
-
Air-cooled 4-cycle Gasoline
-
System:
-
Mechanical control
-
Speed:
-
22m/ min
-
Plate Size mm(in):
-
600*890mm
-
Max Speed:
-
3600rpm
-
Fuel Tank:
-
5.5L
-
Vibrating Frequency:
-
2800-5500vpn
-
working Area:
-
500*520 mm
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
Ground compaction
-
Brand Name:
-
BE-Focus
-
Model Number:
-
C90T, FCP 200
-
Place of Origin:
-
Henan, China
-
Power:
-
9.6KW
-
Dimension(L*W*H):
-
965*600*1370mm
-
Weight:
-
360 kg
-
Engine:
-
9.6kw, Gasoline/Diesel
-
Product Name:
-
Vibratory Plate Compactor
-
Engine type:
-
Air-cooled 4-cycle Gasoline
-
System:
-
Mechanical control
-
Speed:
-
22m/ min
-
Plate Size mm(in):
-
600*890mm
-
Max Speed:
-
3600rpm
-
Fuel Tank:
-
5.5L
-
Vibrating Frequency:
-
2800-5500vpn
-
working Area:
-
500*520 mm
Product Description
Plate compactor is suitable for tamping the engineering foundation, curb and asphalt pavement when building roads, streets, buildings, canals and bridges in highways, municipal administration, construction, water conservancy and other areas. In a narrow working environment, it is convenient to move, stable to operate, and does not leave dead ends in work.
Specification
|
Metric
|
|
|
||
|
model
|
C90T
|
FCP 200
|
||
|
type
|
single-direction vibratory plates
|
reversible vibratory plates
|
||
|
tamping depth
|
30 cm
|
30 cm
|
||
|
power type
|
gasoline/diesel
|
gasoline/diesel
|
||
|
vibration intensity
|
15kn
|
15kn
|
||
|
vibration frequency
|
2800-5500vpn
|
5500vpn
|
||
|
gradeability
|
<25°
|
<25°
|
||
|
walking speed
|
15-30 m/min
|
15-30 m/min
|
||
|
working area
|
500*520 mm
|
370*690 mm
|
||
|
weight
|
90 kg
|
126 kg
|
||
|
size
|
1050*500*520 mm
|
1050*370*690 mm
|
||
Product details
Product Advantages
1. Foldable handle design and walking wheel are convenient for transportation.
2. Wear-resistant bottom plate: prolong service life, open design reduces dirty buildings.
3. Heavy shock absorber reduces vibration of upper deck.
4. Excellent quality, low fuel consumption, simple operation and quick construction.
Packaging & Delivery
We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.
