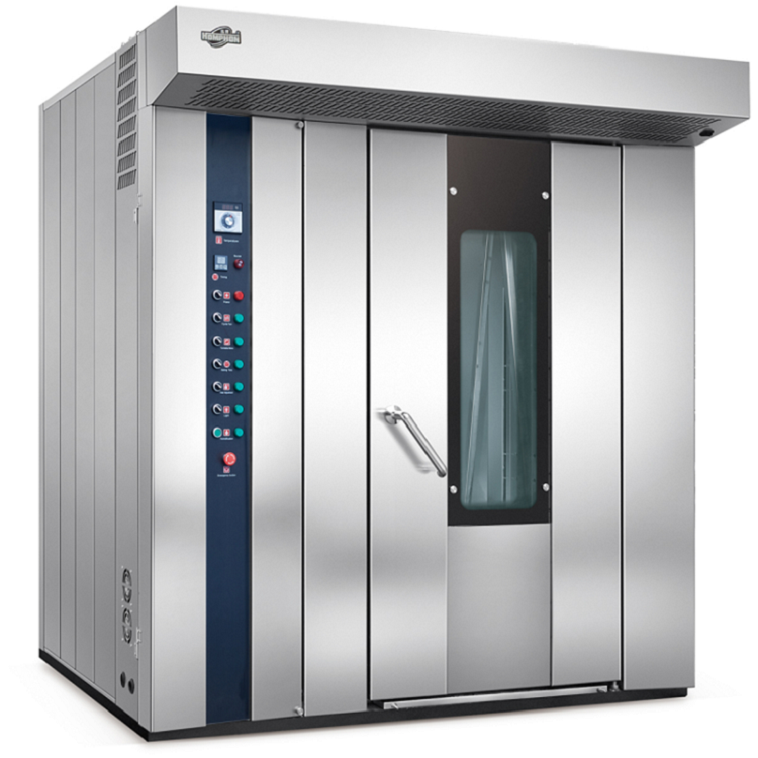

32 64 Tray Rotary Oven Price Gas Electric Big Rotating Bakery Rotary Rack Baking Oven

32 64 Tray Rotary Oven Price Gas Electric Big Rotating Bakery Rotary Rack Baking Oven

FOB Reference Price: Get Latest Price

≥1 Pieces

US $7700

≥5 Pieces

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 3000

Dimension(L*W*H):: 2000*2100*2250mm

Weight:: 1500 KG

Machinery Function:: Toast Cake

Output product name:: Bread

Capacity:: 32 trays

Tray size:: 400*600mm

Power Source:: Gas/Electric/Diesel Oil

Package:: Fully sealed plywood box

After Warranty Service:: Spare parts

Local Service Location:: None

After-sales Service Provided:: Video technical support

Certification:: ce

Product name:: Commercial Bakery Oven

Quick Details

Brand Name:: homphon

Place of Origin:: guangdong

Voltage:: 380V

Power:: 3000

Dimension(L*W*H):: 2000*2100*2250mm

Weight:: 1500 KG

Machinery Function:: Toast Cake

Output product name:: Bread

Capacity:: 32 trays

Tray size:: 400*600mm

Power Source:: Gas/Electric/Diesel Oil

Package:: Fully sealed plywood box

After Warranty Service:: Spare parts

Local Service Location:: None

After-sales Service Provided:: Video technical support

Certification:: ce

Product name:: Commercial Bakery Oven

Model	Power Source	Rated Voltage	Rated Power	Net Weight	Gross weight	Dimension (cm)	Packing Size (cm)
WFC-D16	Electric	380V	36+3kw	1.2t	1.3t	130×210×225	140×224×234
WFC-R16	Gas	380V	3kw	1.2t	1.3t	130×210×225	140×224×234
WFC-C16	Diesel Oil	380V	3kw	1.2t	1.3t	130×210×225	140×224×234
WFC-D32	Electric	380V	48+3kw	1.5t	1.6t	180x200×225	230×195×234
WFC-R32	Gas	380V	3kw	1.5t	1.6t	180x200×225	230×195×234
WFC-C32	Diesel Oil	380V	3kw	1.5t	1.6t	180x200×225	230×195×234
WFC-D64	Electric	380V	98+3kw	1.8t	1.9t	260x235x242	272x220x246
WFC-R64	Gas	380V	3kw	1.8t	1.9t	260x235x242	272x220x246
WFC-C64	Diesel Oil	380V	3kw	1.8t	1.9t	260x235x242	272x220x246

Product Details

Top Rotation design.

1. Total structure is divided into three parts.

2. The back box is heating part, front and middle box is roasting part.

3. Heating is circulated within three boxes through special air conduit so that the heat is under well convection and the temperature is

even.

SS201 Champer Design .

There are also multi band air adjustments so satisfy different usage due to seasonal reasons. “Sliding” type is adopted for the
installation of external decoration penal, so that the dismantling is quite convenient. can be adjust 5 period of the wind.

Stainless steel material.

The whole body is made of stainless steel 201 ，thickness 1.5mm . And 4mm bottom plate . Low trouble happening rate, firm and durable and convenient maintenance.

Upper grade material, imported stainless steel and electronic components.
