Quick Details
-
Blade Length (mm):
-
3200 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
SAMET
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
5500 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4000*1800*1800
-
Year:
-
new
-
Product Name:
-

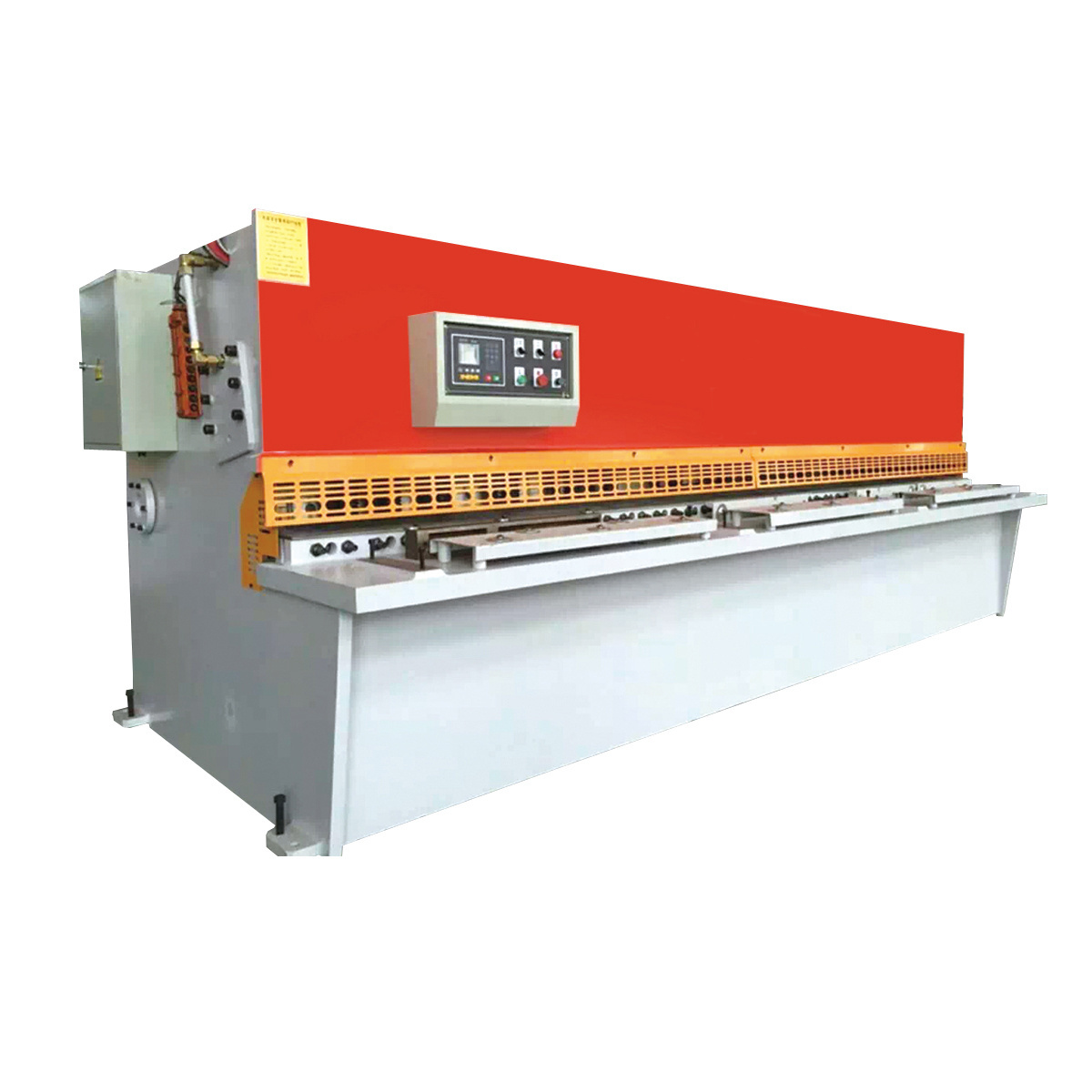

Hydraulic Swing Beam Shearing Machine
-
Material Strength (N/mm2):
-
450
-
Strokes (min-1):
-
15
-
Table Height above Floor (mm):
-
800
-
Material of Blade:
-
6CrW2Si
-
Control System:
-
ESTUN E21S
-
Color:
-
Can be customized
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Metal Sheet Cutting
Quick Details
-
Max. Cutting Width (mm):
-
3600 mm
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
1°30'
-
Blade Length (mm):
-
3200 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
SAMET
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
5500 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4000*1800*1800
-
Year:
-
new
-
Product Name:
-
Hydraulic Swing Beam Shearing Machine
-
Material Strength (N/mm2):
-
450
-
Strokes (min-1):
-
15
-
Table Height above Floor (mm):
-
800
-
Material of Blade:
-
6CrW2Si
-
Control System:
-
ESTUN E21S
-
Color:
-
Can be customized
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Metal Sheet Cutting
Product Description
Introduction
This machine is the latest generation of hydraulic shearing machine. With advanced hydraulic integrated valve blocks and less
pipeline connections, the compact structure with is more reliable and easier to maintain. The machine is composed of frame, tool
holder, hydraulic system, material pressing device, blade clearance adjustment, front support and electrical system.
Features
1. All steel welded structure with good rigidity and stability, vibrating treatment for removal of internal stress.
This machine is the latest generation of hydraulic shearing machine. With advanced hydraulic integrated valve blocks and less
pipeline connections, the compact structure with is more reliable and easier to maintain. The machine is composed of frame, tool
holder, hydraulic system, material pressing device, blade clearance adjustment, front support and electrical system.
Features
1. All steel welded structure with good rigidity and stability, vibrating treatment for removal of internal stress.
2.The structural components are removed rust by shot blasting and coated with anti-rust paint.
3. Easy operation and reliable performance.
4. Diamond-shaped top blade and rectangular bottom blade, with long service life.
5. Light alignment device and electric mechanical back gauge.
6.The rolling support balls on worktable reduces scratches and frictions of plates.
7. The clearance between the top and bottom blade is adjusted by the handle and the dial indicates the value.
8. The safety fence is interlocked with the electrical system to ensure the safe operation.
3. Easy operation and reliable performance.
4. Diamond-shaped top blade and rectangular bottom blade, with long service life.
5. Light alignment device and electric mechanical back gauge.
6.The rolling support balls on worktable reduces scratches and frictions of plates.
7. The clearance between the top and bottom blade is adjusted by the handle and the dial indicates the value.
8. The safety fence is interlocked with the electrical system to ensure the safe operation.
Specification
|
item
|
value
|
|
Max. Cutting Width (mm)
|
3600 mm
|
|
Max. Cutting Thickness (mm)
|
6mm
|
|
Automatic Level
|
Fully Automatic
|
|
Shearing Angle
|
1°30'
|
|
Blade Length (mm)
|
3200mm
|
|
Throat Depth (mm)
|
150mm
|
|
Power (kW)
|
7.5kW
|
|
Weight (KG)
|
5500KG
|
|
Place of Origin
|
China
|
|
Voltage
|
380V 50HZ
|
|
Dimension(L*W*H)
|
4000*1800*1800
|
|
Product Name
|
Hydraulic Swing Beam Shearing Machine
|
|
Material Strength (N/mm2)
|
450
|
|
Strokes (min-1)
|
15
|
|
Table Height above Floor (mm)
|
800
|
|
Material of Blade
|
6CrW2Si
|
|
Control System
|
ESTUN E21S
|
|
Color
|
Can be customized
|
|
Cutting Material
|
Metal Stainless Steel Carbon Steel
|
Details Images
Main Motor and Gear Pump
With less noise and prolonging the service life.
With less noise and prolonging the service life.
Hydraulic Valve
Hydraulic transmission with high reliability.
Hydraulic transmission with high reliability.
Blade Clearance Adjustment
Manual mechanism for adjusting blade clearance rapidly.
Manual mechanism for adjusting blade clearance rapidly.
Schneider Main Electrical Components
Reliable and safe, with long service life.
Reliable and safe, with long service life.
ESTUN E21S Control System
Easy control system to ensure operation precision.
Easy control system to ensure operation precision.
Rolling Steel Balls
Rolling steel balls on worktable reduce friction of workpiece.
Rolling steel balls on worktable reduce friction of workpiece.
Machine Parameters
|
Model
(QC12Y Series) |
Plate Thickness
(mm) |
Cutting Length
(mm) |
Shear Angle
(°) |
Back Gauge Range
(mm) |
Strokes
(min-1) |
Main Motor Power
(KW) |
Overall Dimensions
(L/mm×W/mm×H/mm) |
|
QC12Y-4×2500
|
4
|
2500
|
1°30’
|
20-500
|
15
|
4
|
3000×1600×1700
|
|
QC12Y-4×3200
|
4
|
3200
|
1°30’
|
20-600
|
15
|
5.5
|
3800×1700×1800
|
|
QC12Y-4×4000
|
4
|
4000
|
1°30’
|
20-600
|
15
|
5.5
|
4800×1800×1800
|
|
QC12Y-6×2500
|
6
|
2500
|
1°30’
|
20-600
|
15
|
7.5
|
3200×1700×1800
|
|
QC12Y-6×3200
|
6
|
3200
|
1°30’
|
20-600
|
15
|
7.5
|
4000×1800×1800
|
|
QC12Y-6×4000
|
6
|
4000
|
1°30’
|
20-600
|
15
|
7.5
|
4800×1800×1800
|
|
QC12Y-6×6000
|
6
|
6000
|
1°30’
|
20-600
|
15
|
11
|
7200×2200×2200
|
|
QC12Y-8×2500
|
8
|
2500
|
1°30’
|
20-600
|
15
|
11
|
3200×1800×1800
|
|
QC12Y-8×3200
|
8
|
3200
|
1°30’
|
20-600
|
15
|
11
|
4000×1800×1850
|
|
QC12Y-8×4000
|
8
|
4000
|
1°30’
|
20-600
|
15
|
11
|
4800×1800×1800
|
