Low Water Head Hydro Power Turbine Generator 3kw 5kw 8kw 10kw 20kw 30kw Hydro Power Generator Water Turbine/

Low Water Head Hydro Power Turbine Generator 3kw 5kw 8kw 10kw 20kw 30kw Hydro Power Generator Water Turbine/

FOB Reference Price: Get Latest Price

≥1 Sets

US $950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certification:: ISO;CE

Rated Power:: 3KW--30KW

Name water turbine generators:: hydro generator

Certificate water turbine generators:: CE ISO9001

Warranty water turbine generators:: 1 Year

Frequency:: 50Hz

Voltage water turbine generators:: 220V/240/380/415V options

COLOR water turbine generators:: Green options

Function:: Hydraulic direct drive generator

Phase water turbine generators:: single phase/three phase

Material water turbine generators:: Copper wire

Quick Details

Place of Origin:: Fujian, China

Brand Name:: GENCIRCLE

Model Number:: WG-5

Certification:: ISO;CE

Rated Power:: 3KW--30KW

Name water turbine generators:: hydro generator

Certificate water turbine generators:: CE ISO9001

Warranty water turbine generators:: 1 Year

Frequency:: 50Hz

Voltage water turbine generators:: 220V/240/380/415V options

COLOR water turbine generators:: Green options

Function:: Hydraulic direct drive generator

Phase water turbine generators:: single phase/three phase

Material water turbine generators:: Copper wire

Product Description

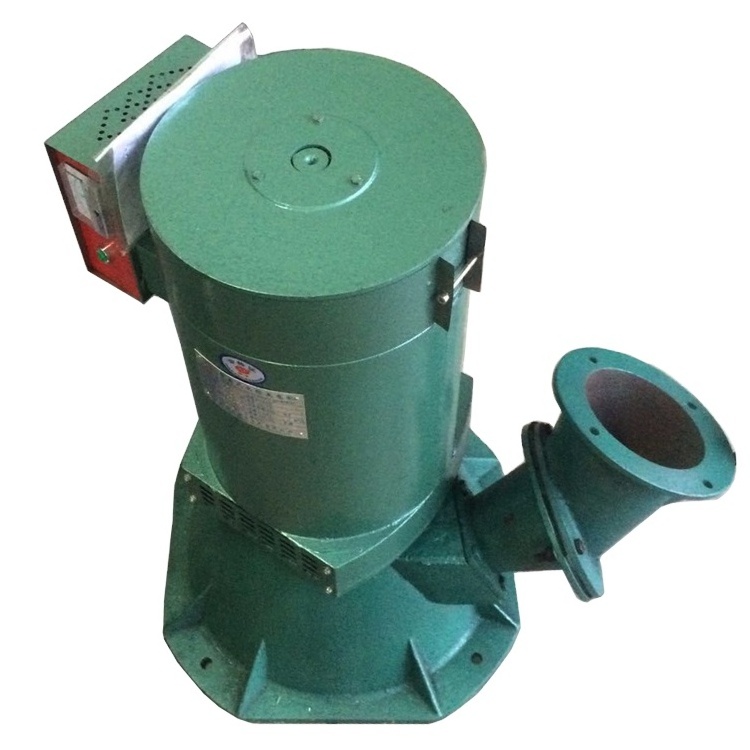

Turgo turbine generator suit for water head over 8m, flow over 0.003m3/s. The main features are:

1. Turbine and generator are integrated, which is more easy to install and maintain 2. Hydraulic direct drive generator, without more drive mechanism and efficiency is much higher, Extremely low failure rate. 3. Auto voltage rectifier is installed within generator, the voltage is more stable. 4. Optional single-phase voltage 220-240V or 3-phase voltage 380V-415V. The generator's unique voltage excitation design, be suitable for provide long-distance voltage transmission. 5. Mainly used in: mountainous water sources sufficient and water head more than 8 meters

Model	Rated Output	Max.Output	Voltage / 1 phase / 3-phase	Frequency	Water head/Altitude	Water Flow
WG-3KW	3KW	3.3KW	220-240V / 380-415V	50Hz ± 5%	15M-30M	0.015 - 0.03（m3/s)
WG-5KW	5KW	5.5KW	220-240V / 380-415V	50Hz ± 5%	15M-40M	0.015 - 0.04（m3/s)
WG-8KW	8KW	8.8KW	220-240V / 380-415V	50Hz ± 5%	25M-55M	0.025 - 0.05（m3/s)
WG-10KW	10KW	11KW	220-240V / 380-415V	50Hz ± 5%	30M-60M	0.035 - 0.06（m3/s)

Detailed Images

After Sales Service

Warranty Service

1.Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.

2.During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.

3.After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
