Quick Details
-
Warranty:
-
1 year, 1 Year
-
Brand Name:
-
USUN
-
Model Number:
-
XT130
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
None
-
Cable Length:
-
None
-
Outlet Size:
-
None
-
Power:
-
None
-
motor:
-
None
-
Drive power range:
-
Compressed air of 3-8 Bar
-
Weight:
-
9 KGS
-
Driven piston:
-
100mm
-
Material:
-
Stainless steel and alluminum alloy
-
Pump ratio:
-
156:1
-
Pressure capacity:
-
1200 Bar base on 8 bar air driven pressure
Quick Details
-
Application:
-
Automotive Industry, Industrial Utilities, Machining, Metal and Equipment Manufacturers
-
Pressure:
-
1200 Bar Maximum
-
Voltage:
-
None
-
Warranty:
-
1 year, 1 Year
-
Brand Name:
-
USUN
-
Model Number:
-
XT130
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
None
-
Cable Length:
-
None
-
Outlet Size:
-
None
-
Power:
-
None
-
motor:
-
None
-
Drive power range:
-
Compressed air of 3-8 Bar
-
Weight:
-
9 KGS
-
Driven piston:
-
100mm
-
Material:
-
Stainless steel and alluminum alloy
-
Pump ratio:
-
156:1
-
Pressure capacity:
-
1200 Bar base on 8 bar air driven pressure
WHY CHOOSE OUR PUMP?
This brochure introduces pneumatic driven air /Hydraulic boosters and Complete booster system.
These air liquid pump offer a flexible and efficient source for delivering high pressure liquids
1 . Costing savings : An alternative to the purchase of High Pressure compressor ,our air driven liquid are
Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify
and can mounted in any position
2 . High Flow rates at High pressure : W hen High flow rates at high pressure are needed ,the Air Liquid pump
can charge a receiver to an even higher pressure level ,thus storing a volume of air aviable for rapid release at a constant
pressure through a pressure reducing valve
3.Safety Operation : Sa fe Pneumatic Operation-No Heat, Flame or Spark Rish and No need electricity .
1.6 KW /2KW air compressor powered 1000 Bar high pressure Air hydraulic pumps
It C an be used for pressure testing ,cylinder positiong for valves ,super critical fluid extraction for food
preservation . Chemical metering /Injection ,hydrostatic testing for liquid pump .
| Item numbe |

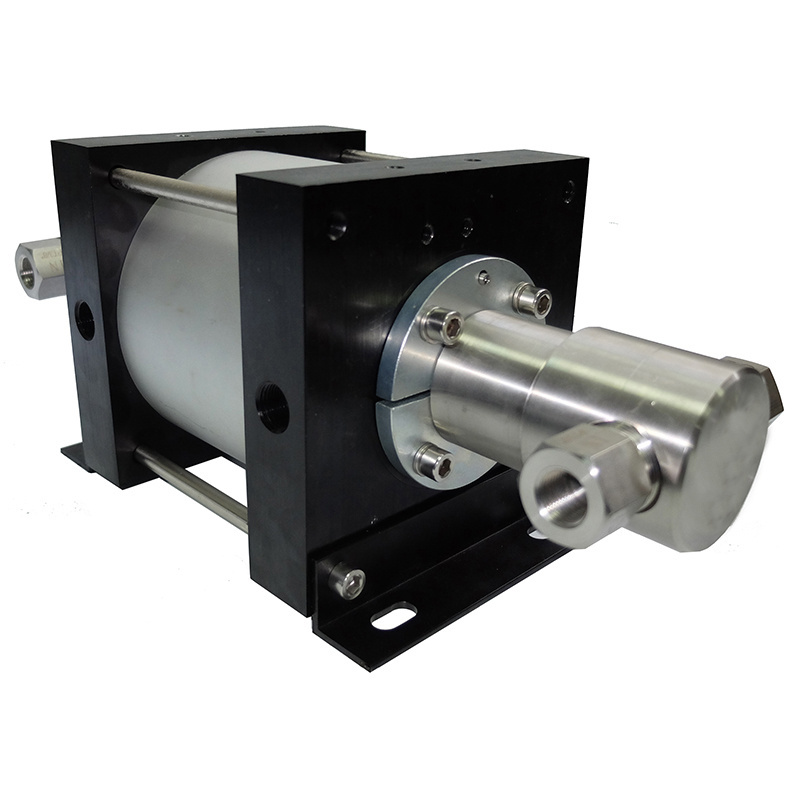

XT130 1000 Bar double acting high pressure Air driven hydraulic testing pump
|
|
|
Air driven Pressure |
3-8 Bar | |
| Dealing with air source | PT3/8 ''size air regulator | |
| lubrication | Non-lubricated | |
| Theory of operation |
The Air liquid pump consist of a large reciprcating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operates in a high pressure air barrel section .Each barrel end contains high pressure inlet and outlet check valves |
|
| Air consumption | 0.7-0.8M3/Min | |
| Installation | Any |
Product features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and options
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized liquid pump systems
