Quick Details
-
Dimension(L*W*H):
-
5800*900*1300mm
-
Weight:
-
1800 KG
-
Name:
-
ZH-800 Series High Speed Automatic Folding Carton Box Gluing Equipment
-
Line Speed:
-
220m/min
-
Paperboard:
-
210-600gsm
-
Box Forming:
-
One side and two sides gluing.
-
Glue Type:
-
Cold glue
-
Max. Paper width:
-
560mm
-
Min. Paper width:
-
106mm
-
Feeding:
-
Auto continuous feeding.
-
Certification:
-
CE
Quick Details
-
Voltage:
-
220V, single phase
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PRINTYOUNG
-
Dimension(L*W*H):
-
5800*900*1300mm
-
Weight:
-
1800 KG
-
Name:
-
ZH-800 Series High Speed Automatic Folding Carton Box Gluing Equipment
-
Line Speed:
-
220m/min
-
Paperboard:
-
210-600gsm
-
Box Forming:
-
One side and two sides gluing.
-
Glue Type:
-
Cold glue
-
Max. Paper width:
-
560mm
-
Min. Paper width:
-
106mm
-
Feeding:
-
Auto continuous feeding.
-
Certification:
-
CE

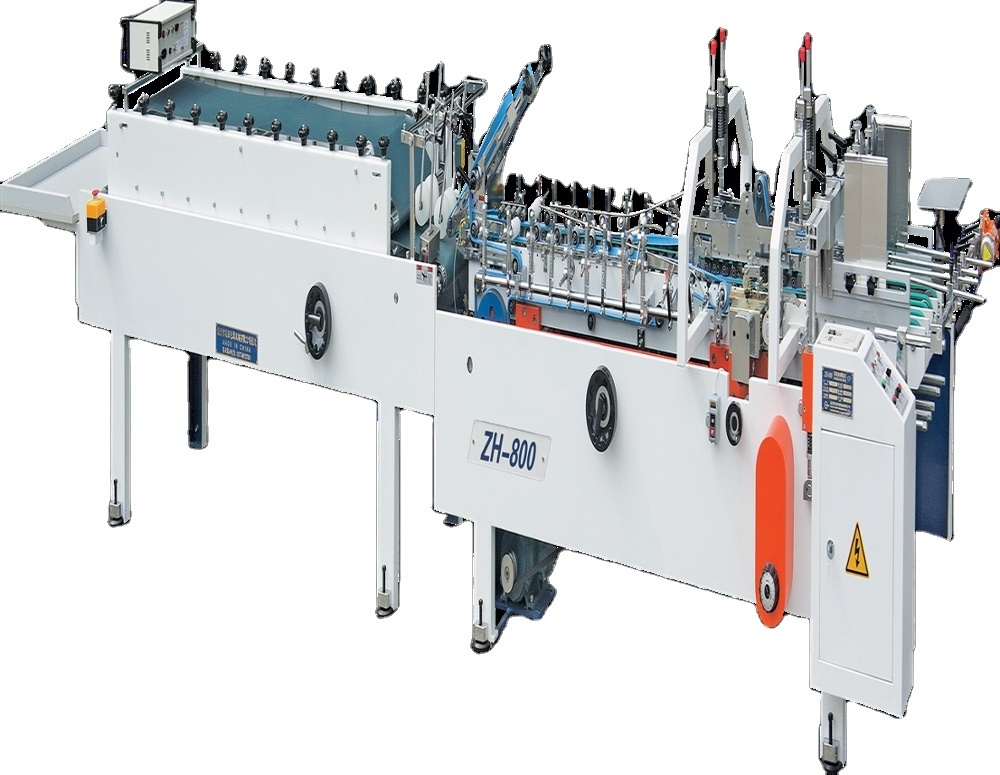

ZH-800/800C/880/1000 High Speed Automatic Folding Carton Box Gluing Machine
This model is our regular model. It is known as stable , flexible and user-friendly and has good reputation among our customers. It can glue from small boxes to large boxes. For small boxes, it can make 20000 to 50000pcs per hour. It is ideal equipment for printing industry.
FEATURES
1. Line speed:0220m/min continuous adjustment.
2. Usage paper:210-600g/ Paperboard
3. The box forming: Either sides folds, the both sides prefold and either side glue.
4. Paper feeding: Automatic feeding
5. Binder: Dissolve the type.
6. Electric: Single-phase AC220V 2.2KW
7. Weight:1800kg
8. Dimension:5800×900×1300(mm)
9. The counting range:0999999(full-automatic)
Technical Data:
| Model | (A Max) | (A Min) | (B Max) | (B Min) | (C Max) | (C Min) | Power | Speed | Weight | Dimension |
| ZH-800 | 560mm | 105mm | 550mm | 50mm | 270mm | 50mm | 220v 2.2kw | 0~220 | 1.5t | 5800*900*1300mm |
| ZH-800C | 450mm | 65mm | 550mm | 50mm | 170mm | 30mm | 220v 2.2kw | 0~220 | 1.5t | 5800*900*1300mm |
| ZH-880 | 660mm | 105mm | 550mm | 80mm | 330mm | 50mm | 220v 2.2kw | 0~220 | 2.0t | 5800*900*1300mm |
| ZH-1000 | 760mm | 130mm | 600mm | 80mm | 380mm | 60mm | 220v 2.2kw | 0~220 | 2.0t | 5800*900*1300mm |
Plane Chart:
1. 24 hours online service.
2. Engineers available to service overseas if necessary.
3. One year warranty.
4. W
ith CE and ISO-9001 certificate
