Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RELA
-
Voltage:
-
Three phase voltage
-
Dimension(L*W*H):
-
Depend on model
-
Weight (KG):
-
1000 KG
-
Product name:
-

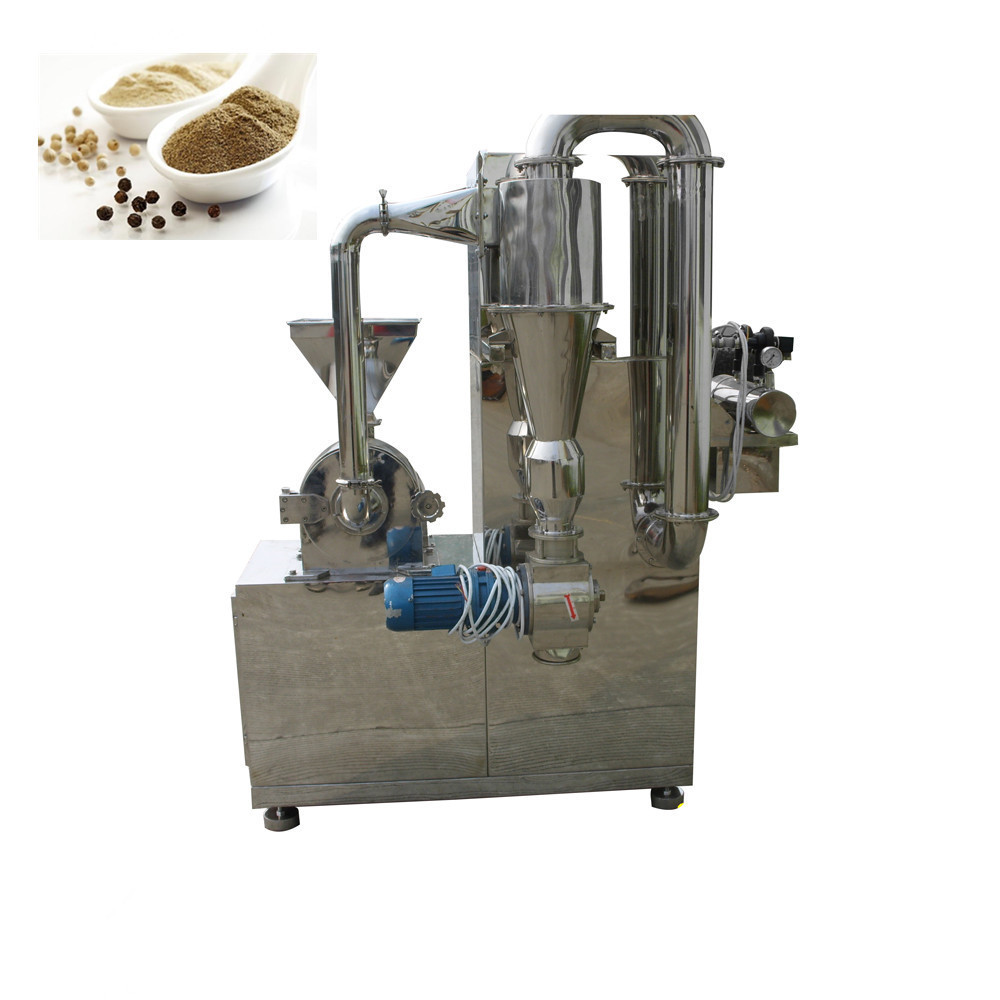

Red dry chili pepper grinding machine chili powder grinding machin
-
Machine type:
-
KFL series industrial spice mill
-
Capacity:
-
50-2000kg/h
-
Power(W):
-
7.5-35KW
-
Fan motor:
-
2.2-15KW
-
Unload Motor:
-
0.75-1.5kw
-
Speed:
-
2140-4800 rpm
-
Speed control:
-
Siemens VFD
-
Control:
-
Electric control
Quick Details
-
Output (kg/h):
-
50 - 200 kg/h
-
Feeding Size (mm):
-
1 - 10 mm
-
Output Size (mesh):
-
12 - 120 mesh
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RELA
-
Voltage:
-
Three phase voltage
-
Dimension(L*W*H):
-
Depend on model
-
Weight (KG):
-
1000 KG
-
Product name:
-
Red dry chili pepper grinding machine chili powder grinding machin
-
Machine type:
-
KFL series industrial spice mill
-
Capacity:
-
50-2000kg/h
-
Power(W):
-
7.5-35KW
-
Fan motor:
-
2.2-15KW
-
Unload Motor:
-
0.75-1.5kw
-
Speed:
-
2140-4800 rpm
-
Speed control:
-
Siemens VFD
-
Control:
-
Electric control
Product Description
Technical Parameter
|
Model
|
KFL-400
|
KFL-500
|
KFL-600
|
KFL-700
|
KFL-800
|
|
Capacity (kg/h)
|
50-400
|
100-800
|
300-1500
|
400-1800
|
500-2000
|
|
Output size (mesh)
|
10-120
|
10-120
|
10-120
|
10-120
|
10-120
|
|
Rotary speed (rpm)
|
4800
|
4200
|
3500
|
3050
|
2140
|
|
Main motor (kw)
|
7.5
|
15
|
18.5
|
22
|
30
|
|
Fan motor (kw)
|
2.2
|
4
|
11
|
11
|
15
|
|
Unload motor (kw)
|
0.75
|
0.75
|
1.1
|
1.5
|
1.5
|
|
Weight (kg)
|
420
|
650
|
1000
|
1200
|
1600
|
Detailed Images
Material: Stainless Steel
The inline blower is placed between the main machine and cyclone to enhance the airflow in the system. Thus the powder can be sucked out the grinding chamber through the sieve quickly. So the capacity is much higher and the temperature in the chamber is low.
The fan is made by Stainless Steel to meet Food standard.
