Quick Details
-
Place of Origin:
-
Guangdong, China
-
Gain:
-
34dBi
-
Frequency Range:
-
4800-6500MHz
-
VSWR:
-
1.8 Max
-
Connector:
-
SMA
-
Polarization:
-
±45°
-
Dimensions:
-
Dia.720
-
Application:
-
Wi-Fi
-
Mounting:
-
Pole
-
Product name:
-
34dBi MIMO dish antenna
-
Keywords:
-
34dBi MIMO dish antenna
Quick Details
-
Type:
-
2.4GHz & 5GHz Antenna
-
Brand Name:
-
XJS
-
Model Number:
-
XJS-DP-D4865-33X
-
Place of Origin:
-
Guangdong, China
-
Gain:
-
34dBi
-
Frequency Range:
-
4800-6500MHz
-
VSWR:
-
1.8 Max
-
Connector:
-
SMA
-
Polarization:
-
±45°
-
Dimensions:
-
Dia.720
-
Application:
-
Wi-Fi
-
Mounting:
-
Pole
-
Product name:
-
34dBi MIMO dish antenna
-
Keywords:
-
34dBi MIMO dish antenna

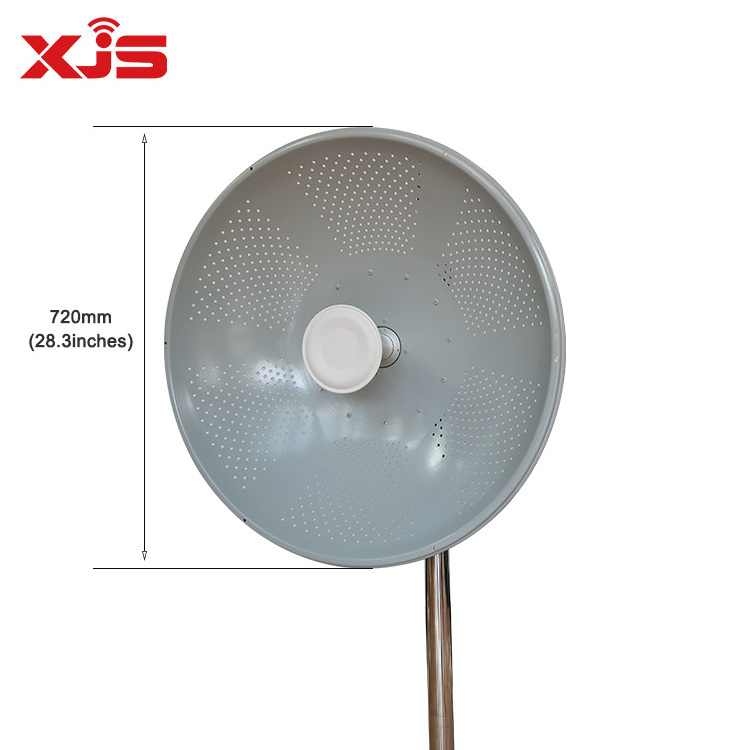

The model TDD-4865-34 is a high performance broadband dual polarized solid dish antenna. After years of research and development, this antenna finally carries 34dBi high gain good performance with a small size--Dia.720mm.
The parabolic dish antenna can be used in a wide variety of high performance 4.8 GHz to 6.5 GHz range wireless applications. The wide band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.
Features
* 2×SMA connectors
* Aluminum reflector dish
* 2×SMA connectors
* Aluminum reflector dish
* High gain 34dBi with small size Dia.720mm
Application
* 4.8-6.5GHz Band Applications
Application
* 4.8-6.5GHz Band Applications
* 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications
* Long Distance Backhaul and Point to Point Data Links
* MIMO and 802.11 n Applications
* WiMAX Applications
* 4.9 GHz Public Safety Band
* Long Distance Backhaul and Point to Point Data Links
* MIMO and 802.11 n Applications
* WiMAX Applications
* 4.9 GHz Public Safety Band
|
Model
|
XJS-DP-D4865-33X
|
|
Frequency Range
|
4800-6500 MHz
|
|
Gain
|
34dBi
|
|
VSWR
|
≤1.8
|
|
Polarization Type
|
±45°
|
|
Input Impedance
|
50Ω
|
|
Horizontal Beamwidth
|
3.4°
|
|
Vertical Beamwidth
|
3.4°
|
|
Isolation
|
>25dB
|
|
Front-to-Back Ratio
|
≥45dB
|
|
Maximum Power
|
50W
|
|
Connector Type
|
2*SMA
|
|
Lighting Protection
|
DC Ground
|
|
Dimension
|
ø72cm
|
|
Weight
|
14kg/2pcs
|
|
Rated Wind Velocity
|
180km/h
|
|
Working Temperature
|
-40℃~+60℃
|
Radiation Pattern
+45°
-45°
Details Images
