Quick Details
-
Brand Name:
-
PRINTYOUNG
-
Model Number:
-
PRY-520PB
-
Working Speed:
-
800 - 2000 books/hr
-
Punching Thickness (One-Time):
-
1 - 6 mm
-
Max. Punching Thickness:
-
13 mm (16mm for special product)
-
Max Times of Punching for One Book:
-
5 times
-
Max. Book Size:
-
510 mm (punched side) * 800 mm
-
Min. Book Size:
-
100 mm (punched side) * 140 mm
-
Max. Book Size for Feeding Belt:
-
420 mm * 420 mm
-
Size of Double Loop Wire:
-
1/4" - 5/8"
-
Width of Paper for Binding:
-
100 - 520 mm
-
Air Pressure:
-
0.7 - 0.8 Mpa
Quick Details
-
Type:
-
Wire Binding Machine
-
Power:
-
Electricity
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PRINTYOUNG
-
Model Number:
-
PRY-520PB
-
Working Speed:
-
800 - 2000 books/hr
-
Punching Thickness (One-Time):
-
1 - 6 mm
-
Max. Punching Thickness:
-
13 mm (16mm for special product)
-
Max Times of Punching for One Book:
-
5 times
-
Max. Book Size:
-
510 mm (punched side) * 800 mm
-
Min. Book Size:
-
100 mm (punched side) * 140 mm
-
Max. Book Size for Feeding Belt:
-
420 mm * 420 mm
-
Size of Double Loop Wire:
-
1/4" - 5/8"
-
Width of Paper for Binding:
-
100 - 520 mm
-
Air Pressure:
-
0.7 - 0.8 Mpa

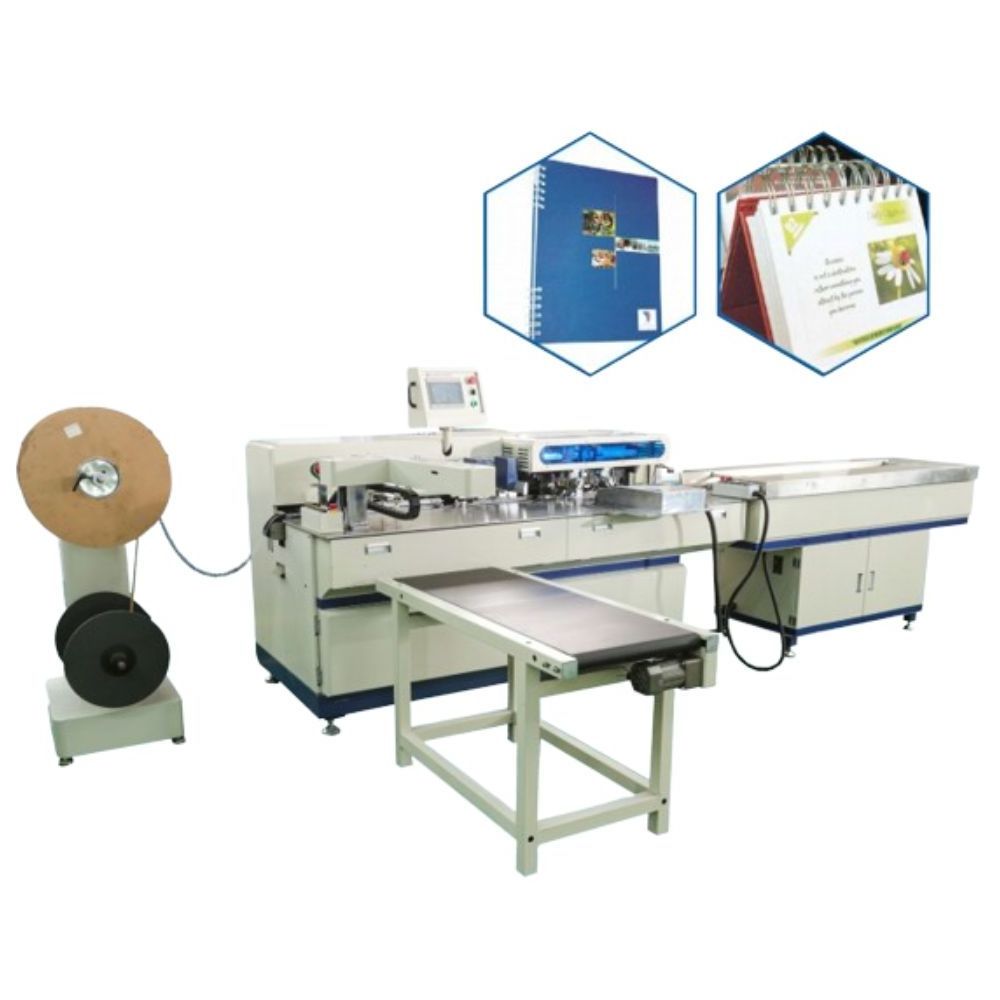

PRY-520PB Automatic Wire Punching and Binding Machine
Features
PRY-520PB Automatic double loop wire punching and binding machine is an automatic machine that combining punching and binding function.We are the first one whom design and manufacture this machine in China.So we have many patents of this machine.
High speed and stable,only need 1-2 person to opetate and very easy to adjust.
High speed and stable,only need 1-2 person to opetate and very easy to adjust.
Highly improve efficiency and save cost.
1.Automatic feeding,paper / cover punching and binding in one machine;
2.Only need 1-2 person to operate;
3.High quality mould,can punch 6mm for one time.And can choose punching times for one to five times.
4.Automatic oil delivery system,two working sides of punching mould.Can be changed in a very short time and long lift time than normal mould;
5.Can finish the product even though the cover is bigger than the inner sheets;
6.Automatic alarm and display function,engineer can act promptly.
1.Automatic feeding,paper / cover punching and binding in one machine;
2.Only need 1-2 person to operate;
3.High quality mould,can punch 6mm for one time.And can choose punching times for one to five times.
4.Automatic oil delivery system,two working sides of punching mould.Can be changed in a very short time and long lift time than normal mould;
5.Can finish the product even though the cover is bigger than the inner sheets;
6.Automatic alarm and display function,engineer can act promptly.
Technical Parameters
|
PRY-520PB Punching and Binding Machine
|
|
|
|
Model
|
PRY - 520PB
|
|
|
Working Speed
|
800 - 2000 books/hr
|
|
|
Punching Thickness (One-Time)
|
1 - 6 mm
|
|
|
Max. Punching Thickness
|
13 mm (16 mm for special product)
|
|
|
Max Times of Punching for One Book
|
5 times
|
|
|
Max. Book Size
|
510 mm (punched side) * 800 mm
|
|
|
Min. Book Size
|
100 mm (punched side) * 140 mm
|
|
|
Max. Book Size for Feeding Belt
|
420 mm * 420 mm
|
|
|
Size of Double Loop Wire
|
1 / 4" - 5 / 8"
|
|
|
Pitch
|
2 : 1 , 3 : 1
|
|
|
Width of Paper for Binding
|
100 - 520 mm
|
|
|
Air Pressure
|
0.7 - 0.8 Mpa
|
|
|
Power
|
220 V / 50 - 60 Hz / 1 PH / 4.5 kw
|
|
|
Net Weight
|
2000 kg
|
|
|
Machine Dimension
|
4800 * 2600 * 1600 mm
|
|
Applications
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.
We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give
spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:
The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.
We have agents in South Africa,Morocco and Italy.
