Quick Details
-
Weight (KG):
-
68
-
Voltage:
-
220V±10V
-
Current:
-
5.4 KVA
-
Rated Capacity:
-
Max 5200W
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
680*700*920mm
-
Use:
-
BGA Rework Station
-
PCB size(Max):
-
460*430mm
-
PCB size(Min):
-
10*10mm
-
Placement accuracy:
-
±0.01mm
-
PCB thickness:
-
0.5-8mm
-
Thermocouple Ports:
-
4 units
-
Power supply:
-
(singal Phase)AC 220V±10V 50Hz
-
Upper Heating Power:
-
1200W
-
Temperature Controlling:
-
K-type thermocouple closed loop control
-
Positioning Way:
-
V-shape card slot, PCB holder can be adjustable by X and Y axes
Quick Details
-
Core Components:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZENS
-
Weight (KG):
-
68
-
Voltage:
-
220V±10V
-
Current:
-
5.4 KVA
-
Rated Capacity:
-
Max 5200W
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
680*700*920mm
-
Use:
-
BGA Rework Station
-
PCB size(Max):
-
460*430mm
-
PCB size(Min):
-
10*10mm
-
Placement accuracy:
-
±0.01mm
-
PCB thickness:
-
0.5-8mm
-
Thermocouple Ports:
-
4 units
-
Power supply:
-
(singal Phase)AC 220V±10V 50Hz
-
Upper Heating Power:
-
1200W
-
Temperature Controlling:
-
K-type thermocouple closed loop control
-
Positioning Way:
-
V-shape card slot, PCB holder can be adjustable by X and Y axes
Automatic BGA rework station ZS-650 thermocouple motherboard repair machine
ZS-650 automatic motherboard repair machine
Detail information:
|
Total power |
5200W |
|
Upper heating power |
1200W |
|
Bottle heating power |
1200W |
|
Infrared heating power |
2700W (1200W controlled) |
|
Power supply |
(Single Phase) AC 220V±10 50Hz |
|
PCB positioning |
V-shaped slots fixed PCB, the laser alignment system to quickly locate, manipulate Motors by joystick can move the X and Y axis. |
|
Temperature control |
High-precision K-type thermocouple (K-type sensor) closed-loop control (Closed Loop), independent temperature measurement. Temperature accuracy of plus or minus 1 degree. |
|
Electrical material |
High sensitive touch screen+temperature control module+PLC+stepper drives |
|
Max PCB size |
460×430mm |
|
Min PCB size |
10×10mm |
|
Measuring interface quantity |
3 |
|
Chip amplification |
2-50 times |
|
PCB thickness |
0.5-8mm |
|
Applicable chip |
0.8mm-8cm |
|
Applicable chip minimum spacing |
0.15mm |
|
Mount maximum load |
1000G |
|
Placement accuracy |
±0.01mm |
|
Dimension |
L680×W700×H920mm |
|
Net weight |
68kg |

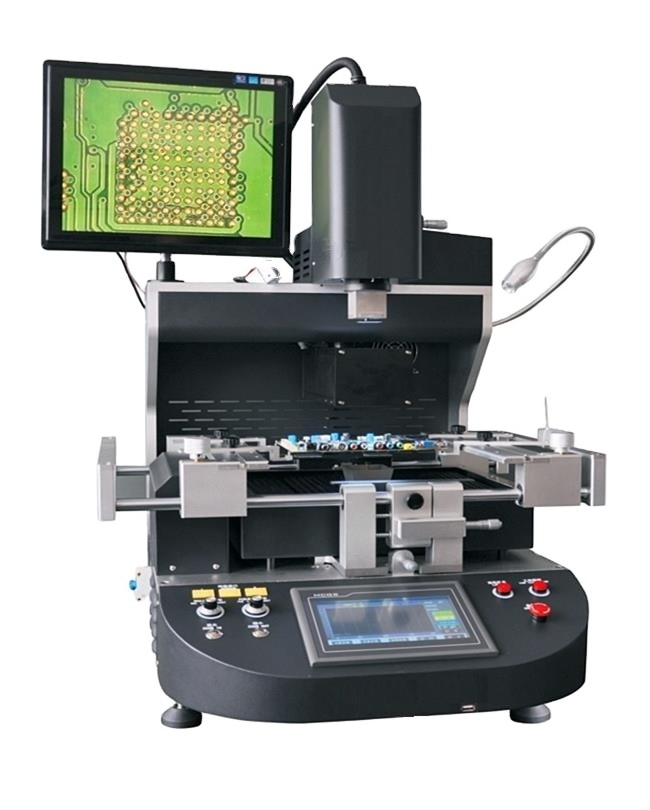

Product show:
