Quick Details
-
Model Number:
-
LNK-IMC005GP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial Gigabit Ethernet Switch
-
Backplane bandwidth:
-
20Gbps
-
Packet forwarding rate:
-
14.88Mpps
-
Standard:
-
IEEE802.3af/at
-
Port:
-
RJ45
-
Power Pin Assignment:
-
4/5(+), 7/8(-)
-
Operating Temperature:
-
-40°C to 80°C (-40°F to 176°F)
-
Input Power:
-
12~48VDC
-
Casing:
-
Aluminum Case
-
Mounting Options:
-
DIN-Rail / Wall-mount
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
E-link
-
Model Number:
-
LNK-IMC005GP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial Gigabit Ethernet Switch
-
Backplane bandwidth:
-
20Gbps
-
Packet forwarding rate:
-
14.88Mpps
-
Standard:
-
IEEE802.3af/at
-
Port:
-
RJ45
-
Power Pin Assignment:
-
4/5(+), 7/8(-)
-
Operating Temperature:
-
-40°C to 80°C (-40°F to 176°F)
-
Input Power:
-
12~48VDC
-
Casing:
-
Aluminum Case
-
Mounting Options:
-
DIN-Rail / Wall-mount
Products Description

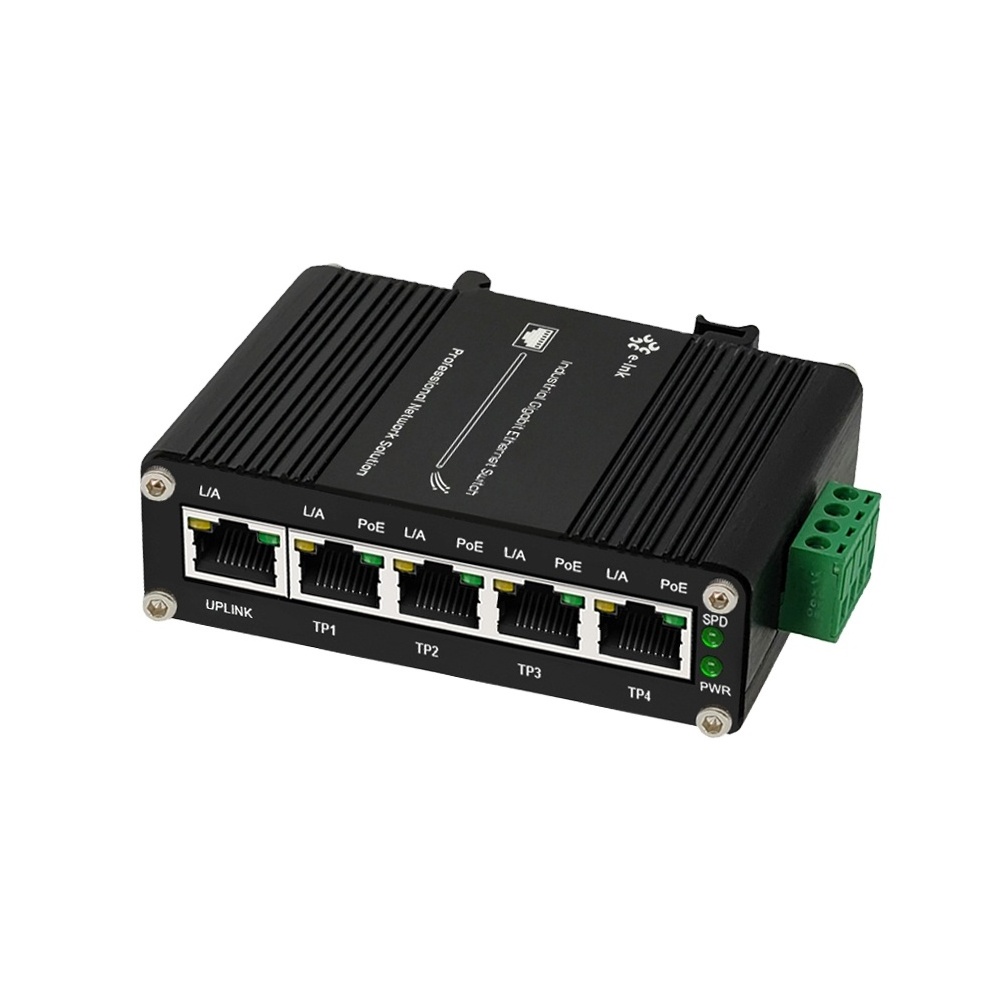

LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T
Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed
to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide
operation temperature range, it could match a variety of harsh environment. The switch complies with CE and
FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It
is a good choice for an economical solution for industrial Ethernet connections.
Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed
to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide
operation temperature range, it could match a variety of harsh environment. The switch complies with CE and
FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It
is a good choice for an economical solution for industrial Ethernet connections.
|
Product Name
|
Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
|
|
|
|
|
Connector
|
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
|
|
|
PoE Budget
|
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
|
|
|
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
|
|
|
Input Power
|
12~48VDC Redundant Power Input (Terminal Block)
|
|
|
|
|
Casing
|
IP40 Aluminum Case
|
|
|
|
|
Installations
|
DIN-Rail / Wall-mount
|
|
|
|
|
Dimensions (WxDxH)
|
95 x 70x 29mm
|
|
|
|
|
Weight
|
0.25Kg
|
|
|
|
