Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Meiruido
-
Model Number:
-
SY-FS2090
-
Gross Weight:
-
10.00kgs
-
Net Weight:
-
9kg
-
Color:
-
Customized
-
Tire:
-
Wanda
-
Frame:
-
Hi-Ten
-
Style:
-
FREESTYLE
-
Rim:
-
Alloy Rim
-
Brake:
-
Brake
-
Size:
-
20 Inch
-
Saddle:
-
Comfortable Saddle
-
Gears:
-
Sigle Speed
Quick Details
-
Fork Material:
-
Steel
-
Wheel Size:
-
20"
-
Frame Material:
-
Steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Meiruido
-
Model Number:
-
SY-FS2090
-
Gross Weight:
-
10.00kgs
-
Net Weight:
-
9kg
-
Color:
-
Customized
-
Tire:
-
Wanda
-
Frame:
-
Hi-Ten
-
Style:
-
FREESTYLE
-
Rim:
-
Alloy Rim
-
Brake:
-
Brake
-
Size:
-
20 Inch
-
Saddle:
-
Comfortable Saddle
-
Gears:
-
Sigle Speed

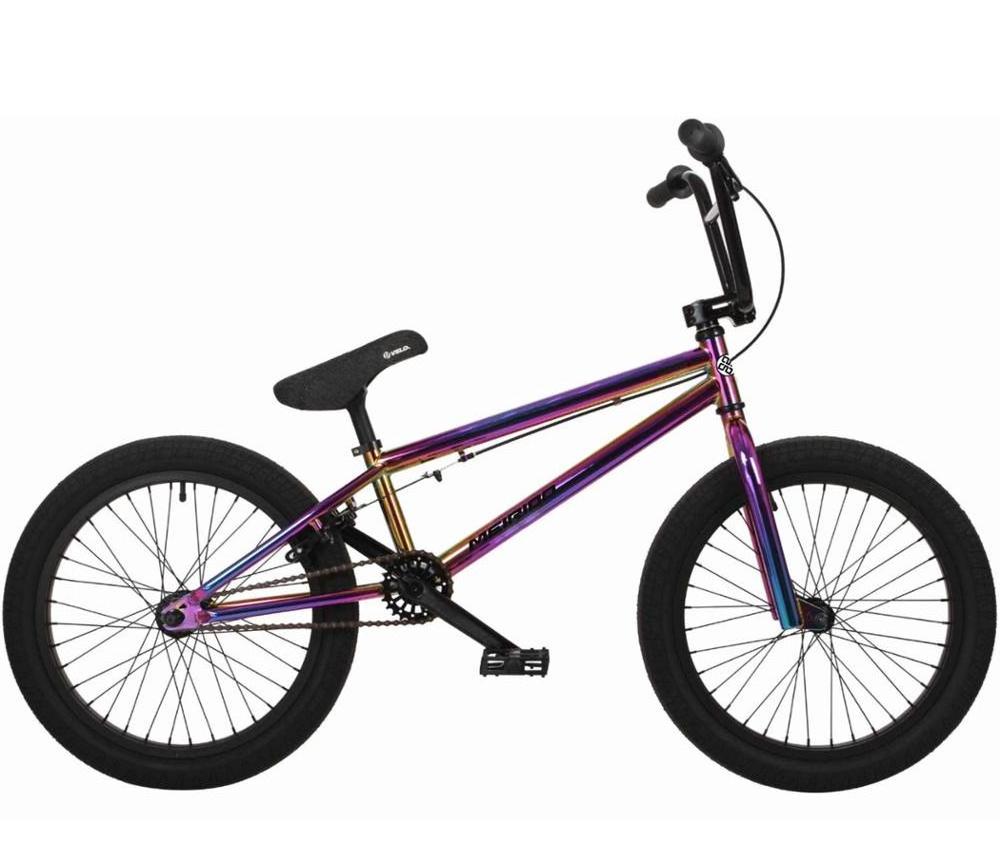

Freestyle Bicycle:
SY-FS2090
Frame: HI-TEN Tube (TT) 20.1" top tube length
Fork:20" HI-TEN
Handlebar: HI-TEN 1"TH
Stem: FRAMED ALUMINUM FRONT LOAD
Chain wheel : Kencycle spacely desige steel ½"* 1 / 8 "* 40T
Hub: Aluminum
Free wheel:½"* 1 / 8 "* 16T
Brake: R: u- brake
Rim :20"*1.75" Doudle Wall Aluminum
Crack set: ONE-PC HOT FORGED CRANK 170mm
Bottom Braket : ONE PC CRANK
Pedals: P P BODY Pedals ,
Brake levers : Promax Aluminum LEVER .w/reach adjust
Brakes: Promax 907 U-brake Rear .
| SPC | VENDOR | Component | COMPONENT COLOR |
| DECAL/NAME PLATE | BLUESKY | WATER TRANSFER DECAL | |
| FRAME | KENCYCLE | 20 INCH HI-TEN (TT) 21" top tube length , | PAINTI NG |
| FORK | KENCYCLE | THREADLESS 1-1/8" HI-TEN | PAINTING |
| HEAD SET | FPD | HEAD SET THREADLESS 1-1/8" | BLACK |
| HEADSET SPACERS | NECO | ALLOY BLACK | BLACK |
| TOP CAP/STAR NUT | NECO | TOP CAP W/STAR NUT | BLACK |
| SPROCKET/SPIDER | CW | CHUAN WEI MODEL 1/8"x 40T ALLOY CHAINRING | SU |
| CRANK SET | CW | 1PC 6-1/2" HOT FORGED CRANK | BLACK |
| BB-SET | CW | B.B PARTS 9PCS | BLACK |
| HANDLEBAR | EVG | BMX Hbar 8" Rise HI-TEN | MATTE BLACK |
| STEM | EVG | 28.6*55MM EXT; BAR BORE 22.2MM | BLACK |
| GRIP | VELO | VELO GRIP 130MM LENGTH | BLACK |
| H/BAR END PLUG | N/A | N/A | |
| F/HUB | RT | STEEL 3/8"x36H HI FLANGE | BLACK |
| R/HUB | RT | STEEL 3/8"MMx36H HIFLANGE W/9T DRIVE | BLACK |
| FRONT RIM | SAM | SINGLE Wall rim. 20"*1.75" | BLACK |
| REAR RIM | SAM | SINGLE Wall rim. 20"*1.75" | BLACK |
| SPOKES | SLE | 14 GAUGE STEEL; LACED 3 CROSS | BLACK |
| FRONT TIRE/TUBE/STRIP | WANGDA | BK; TUBE 20"X2.125" A/V RIM STRIP 20"*16W | BLACK |
| REAR TIRE/TUBE/STRIP | WANGDA | BK; TUBE 20"X2.125" A/V RIM STRIP 20"*16W | BLACK |
| F/BRAKE | PR | ALLOY CALIPER BRAKE | |
| R/BRAKE | PR | BMX V-BRAKE | BLACK |
| BRAKE LEVER | PR | Melt Forged alloy | BLACK |
| BRAKE CABLE/CASING | LEE CHI | LEE CHI 2P 2C | BLACK |
| ROTOR | NIL | ||
| FREEWHEEL | RT | LMA-8 ½"* 1 / 8 "*16T | BLACK |
| CHAIN | KMC | KMC Z410A | BROEN |
| CHAINGUARD | NIL | ||
| SADDLE | HC | PIVOTALASTIC NO FOAM AND NO COVER | BLACK PLASTIC |
| SEAT POST | PREMETEC | ALLOY PIVOTAL POST 25.4 X 250MM | BLACK |
| SEAT CLAMP | Promax | Promax MX-38-RT; 31.8MM | BLACKANO JY-002 |
| PEDALS | HY | HP-565 P.P; Ball Bearing; 9/16" | BLACK |
| CHAIN TENSIONER | PMT | YES | |
| PEGS | QH | STEEL 38 *110MM Color :ED 4PCS | ED |
| REFLECTORS | CATEYE | AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL; WHITE FORWARD FACING; RED REAR FACING | |
| MISC | N/A | N/A | |
| F/REF. BRKT | YF | FOR HANDLEBAR CROSS BAR | BLACK |
| R/REF. BRKT | YF | FOR SEAT POST | BLACK |
| F. AXLE SAFETY RET | BLACK | BLACK | |
| BOLTS | SG | STAINLESS | BLACK |
| MANUAL | AS CLIENT REQUIRE | ||
| PACKING MATERIAL | CARDBOARD PAPER WRAP | ||
| CARTON | 5 PLY EXPORT STANDARD | ||
| FRAME/FORK FINISH: | AS ORDER | PAINTI NG | |
| HANDLEBAR FINISH | AS ORDER | MATTE BLACK | |
| PACKING | SKD 85% | 1SET/CARTON | |
| CKD | A+B CARTON PACKING | ||
| OEM | FRAME&FORK 4SETS/CARTON REST PARTS OEM PACKING |
| Geometry--SY-FS2093 | ||
| 1 | Head Tube Angle | 74 |
| 2 | Seat Tube Angle | 71 |
| 3 | Top Tube Center to Center | 520 (20.5") |
| 4 | Seat Tube to Top | 230 (9.05") |
| 5 | Bottom Bracket Height | 296 (11.65") |
| 6 | Chainstay Length | 343 (13.5") |
| 7 | Seat Post Diameter | 25.4 |
Our Service
- OEM service is welcome.
-
We will provide all the details to you during the mass production.
- Customize your mould according to your need.
- Your requirements are highly respected.
- Necessary test and certification can be obtained as you request.
FAQ:
1
. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q : How long can I receive my sample?
A: It usually takes 15 business days for samples. If the size in stock, we will ship your item immediately.
3. Q : What's the MOQ?
A: The MOQ is 300 PCS.The colors can be mixed in one container,but the quantity should not less than 75 PCS.
4. Q : How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very beginning of manufacturing.
5. Q : What's the delivery time?
A:Generally speaking,it will take about 45days to finish an order from MOQ to 40'HQ.But the extra time is according to your quantity.
6. Q : Can I push the delivery time?
A:Just like mom give birth to baby, preterm child is not healthy and need you take more care for him.We take longer time making perfect products for you.
Don't hesitate to contact us if you have any questions.
Thank you!
