Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LONGJION
-
Model Number:
-
JR-240A
-
Contact meta:
-
Phosphor copper
-
Product Nam:
-
7pin nema socket
-
IP Rating:
-
IP66
-
Ambient Temp:
-
-40℃ ~ +70℃
-
Material:
-
PBT
-
Line length specifications:
-
18AWG,16AWG Line length 30cm
-
Wire type:
-
0-10V dimming/ Dali dimming
Quick Details
-
Rated Voltage:
-
0-480v
-
Rated Current:
-
0-15AMP, 0-15AMP
-
Application:
-
Residential / General-Purpose
-
WIFI:
-
NO
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LONGJION
-
Model Number:
-
JR-240A
-
Contact meta:
-
Phosphor copper
-
Product Nam:
-
7pin nema socket
-
IP Rating:
-
IP66
-
Ambient Temp:
-
-40℃ ~ +70℃
-
Material:
-
PBT
-
Line length specifications:
-
18AWG,16AWG Line length 30cm
-
Wire type:
-
0-10V dimming/ Dali dimming
Products Description

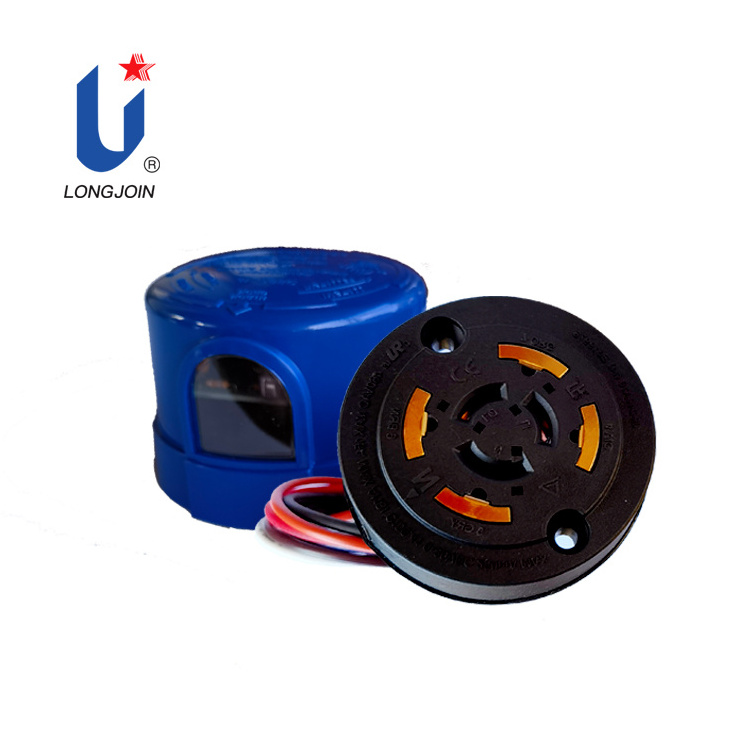

This product conforms to ANSI C136.41-2013 specification and UL773 standard. It is widely used in road lighting and area lighting products with pre-installed light controller socket.JR-240A socket products obtained the UL certification (file number E519978) and IEC standard CE/CB and TUV mark related certification.
Main material is high strength PBT, good stability and reliability, suitable for indoor and outdoor lighting scenes.
According to ANSIC136.41, except 3 power pins, the JR-240A series also provides 4 additional gold-plated signal contacts, which transmit internal microprocessor-generated control signals based on detected local lighting data feedback or receiving operation instructions issued by the cloud intelligent management system。
Details Images
Product Paramenters
|
Model No
|
JR-240A
|
|
Nominal Voltage
|
0-480Vac
|
|
Frequency
|
50/60 HZ
|
|
Power loading
|
Load Rating:15A/Signal Control:0-30 VDC, 250 mA Max
|
|
Wire specifications
|
18AWG,16AWG Line length 30cm
|
|
Ambient temperature
|
-40°C ~ +70°C
|
|
High protection
|
IP65/IP66
|
|
Safety certification
|
UL/CB/
TUV mark
/ClassII
|
Installation Instructions
lamp body. 2.Connect the leading wire as shown below a.The black wire is connected to the L wire of power b.The red wire is
connected to the L wire of lamp c.The white wire is connected to the N wire of power and the N wire of lamp; big pin against big
holes, Install the light controller socket and turn it clockwise about 30 degrees to lock. d.The purple wire is connected to the
positive pole of the power supply, and the gray line is
connected to the negative pole of the power supply. Install the light controller/short circuit
cap or light controller 3.Matters need attention a.Depending on the type of washer and mounting screws used, and in order to meet
the
waterproof performance, it is recommended that the installer use the appropriate torsion to
install screws to ensure a tight fit between the socket, seal ring and the lamp housing. b.The controller with special functions
has special requirements for the location and direction
of the socket installation. Please position the socket direction so that the N indicator points
north. For example: If the light controller is located in a place that receives direct sunlight, it is
recommended to adjust the direction by referring to the north arrow on the top surface of
the socket or the light controller
