Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingshi
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3500*2300*1850mm
-
Power (kW):
-
25
-
Weight (KG):
-
2000
-
Transmission:
-
Taiwan TBI Ball Screw
-
Table Surface:
-
Vacuum Table Surface
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor and driver:
-
Leadshine Servo Driver
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Product name:
-
ATC CNC Router Machine
-
Application:
-
CNC Router Wood Door Making
-
Keywords:
-
ATC Woodworking Cnc Router
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Color:
-
Customer Needing
Quick Details
-
Working Table Size(mm):
-
1250×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingshi
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3500*2300*1850mm
-
Power (kW):
-
25
-
Weight (KG):
-
2000
-
Transmission:
-
Taiwan TBI Ball Screw
-
Table Surface:
-
Vacuum Table Surface
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor and driver:
-
Leadshine Servo Driver
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Product name:
-
ATC CNC Router Machine
-
Application:
-
CNC Router Wood Door Making
-
Keywords:
-
ATC Woodworking Cnc Router
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Color:
-
Customer Needing

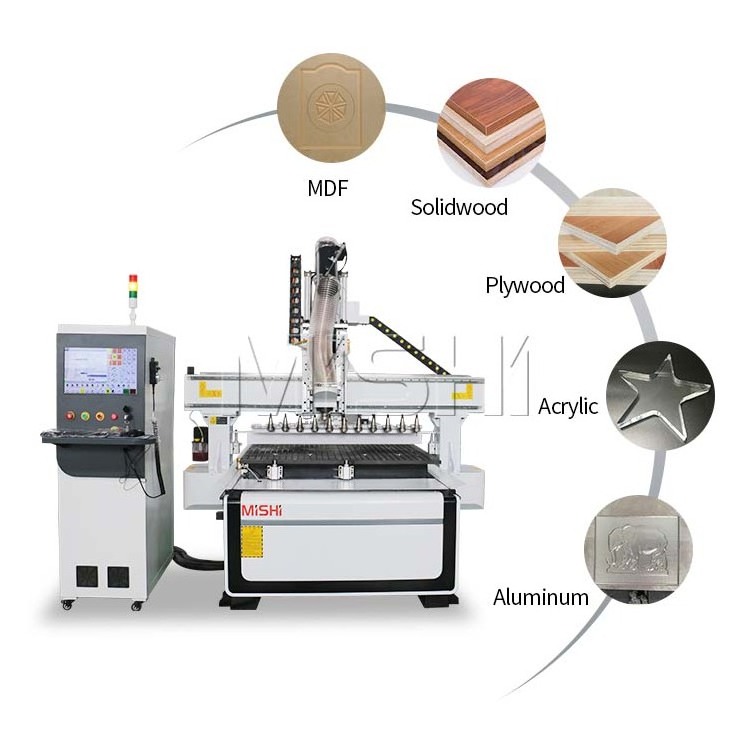

MISHI 4 axis furniture 1325 atc wood cnc machine price cnc router with automatic tool changer
Product Show
ATC CNC Router Furniture Cutting Machine Features
1. Main Function：Widely used in the furniture industry. Its main functions are cutting, engraving, drilling, and grooving.
2. Application：Wood / MDF / Plywood / Aluminum / Acrylic / Density board / Composite board / Particle board / Aluminum honeycomb panel / Eco board / WPC, etc composite materials.
1. Main Function：Widely used in the furniture industry. Its main functions are cutting, engraving, drilling, and grooving.
2. Application：Wood / MDF / Plywood / Aluminum / Acrylic / Density board / Composite board / Particle board / Aluminum honeycomb panel / Eco board / WPC, etc composite materials.
Technical Parameters
|
ATC Cnc Router Furniture Making Machine
|
|
|
|
Machine Type
|
MSW1325/1530/2040/2140/2050 Inline ATC CNC Router
|
|
|
Operating Voltage
|
AC380V 50HZ 3HP Three Four-Wire
|
|
|
Work Plan
|
1300*2500*200/1500*3000*200/2000*4000*200MM
|
|
|
Maximum Empty Travel Speed
|
XY50000mm/min Z20000mm/min
|
|
|
Working Speed
|
15000-30000mm/min
|
|
|
Table Structure Size
|
Vacuum Table 1260*2480 6 Partitions 24 Holes
|
|
|
Bed Structure
|
Heavy-Duty Double-Layer Unloading Trapezoidal Bed
|
|
|
Transmission
|
Rail 25 Square Rail
|
|
|
|
Rack High Precision 1.5M Helical Gear
|
|
|
|
Reducer Japan SHIMPO
|
|
|
|
Screw Taiwan TBI
|
|
|
Tool Library
|
12-Tool Follow-up Tool Magazine ISO30
|
|
|
Frequency Converter
|
11kw inverter
|
|
|
Spindle
|
JST 9kw ATC Spindle
|
|
|
Spindle Speed
|
0-18000rmp
|
|
|
Motor
|
Leadshine Servo Motor
|
|
|
Run Command
|
G code
|
|
|
Operating System
|
Taiwan LNC control System
|
|
|
Total Weight
|
1.5T
|
|
|
Plate Fixing
|
7.5kw Water Circulation Vacuum Pump
|
|
|
Dust Removal
|
5.5kw High Power Dust Collector
|
|
|
* The size, color, configuration and design can all be customized according to customer's requirements
|
|
|
Detailed Images
ATC Auto Tool Change Spindle
Adopt 9kw air cooling spindle, which is with high speed and working efficiency.
Vacuum Adsorption Table
Stable and smooth engraving process with good adsorption.
Make the cut material more flat, and the engraved pattern is more delicate.
Make the cut material more flat, and the engraved pattern is more delicate.
Control System
We use Taiwan LNC control system, which quality is very stable. Specially used in furniture manufacturing.
Bed Structure
Heavy duty body structure with thick steel welded, will not be deformed when hold heavy materials.
Auto Tool Magazine
8-12 pcs linear tools.
Don't need to change tools manually when machine works. Saves a lot of time and
improves the efficiency.
Oil Mist Lubrication Pump
Used to lubricate knives to prevent them from sticking when cutting acrylic and metal.
Application
Inline ATC CNC Wood Router For MDF cutting wooden furniture cabinet door making
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet desig-n, relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
After sales service
We have professional pre-sales and after sales service MISHI team .
1. Provide CNC Router machine using videos, installation training, and usage training before shipment. Remote online technical support, installation training, usage training
2. 3 years warranty for machine accessories，1 year warranty for cnc router main part.
3. 24/7 online service.
4. Free spare parts without shipping cost.
5. Engineers can go abroad for after-sales service
1. Provide CNC Router machine using videos, installation training, and usage training before shipment. Remote online technical support, installation training, usage training
2. 3 years warranty for machine accessories，1 year warranty for cnc router main part.
3. 24/7 online service.
4. Free spare parts without shipping cost.
5. Engineers can go abroad for after-sales service
Company Introduction
Jinan Mingshi Machinery Equipment Co., Ltd
was established in 2010 is a professional CNC enterprise integrating R&D, design, sales and production. We have CE, SGS, Germany EPR. Main products include: CNC Router, Laser cutting machine, etc. Also we can provide one-stop solutions for
woodworking, metal,
and
stone
industries.
Shipping and Packing
Packaging Details
1. Outside package: Standard marine export plywood casefor CNC router.
2. Inner package: Three layers in total:Special PE bubble film + stretch film + plastic film to prevent moisture.
Improved package, much more strong and environmental protection.
The standard export package that can protect CNC routers very well.
Port
Qingdao / Yiwu / Guangzhou / Ningbo / Tianjin / Shenzhen / Shanghai / Dalian
1. Outside package: Standard marine export plywood casefor CNC router.
2. Inner package: Three layers in total:Special PE bubble film + stretch film + plastic film to prevent moisture.
Improved package, much more strong and environmental protection.
The standard export package that can protect CNC routers very well.
Port
Qingdao / Yiwu / Guangzhou / Ningbo / Tianjin / Shenzhen / Shanghai / Dalian
FAQ
Q: How to choose a suitable CNC Router machine?
A: We need to know some information, such as effective processing area , materials , etc, to determine the main parameters. We will according to your requirement recommend the suitable machine for you.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How long is the delivery time?
A: For standard machines, it will be 3-7 days : For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
Q: Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
Q: How should I pay for my order?
A: 1. We can build an Alibaba order, and then send you the link.
2.T/T, means international bank transfer.
You could pay 30% as prepayment at first ( The specific price can be discussed ), then we will start to make production. We will send you pictures and videos during the machine production process. When the machine is completed, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
A: We need to know some information, such as effective processing area , materials , etc, to determine the main parameters. We will according to your requirement recommend the suitable machine for you.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How long is the delivery time?
A: For standard machines, it will be 3-7 days : For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
Q: Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
Q: How should I pay for my order?
A: 1. We can build an Alibaba order, and then send you the link.
2.T/T, means international bank transfer.
You could pay 30% as prepayment at first ( The specific price can be discussed ), then we will start to make production. We will send you pictures and videos during the machine production process. When the machine is completed, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 14 years.
The response will be within 1 minute during working time, And within 2 hours during off duty time. We provide 24 hours service.
We specialize in CNC routers and laser machines for 14 years.
The response will be within 1 minute during working time, And within 2 hours during off duty time. We provide 24 hours service.
you haven't found the machine you need, don't hesitate to contact us too.
We will do best to give you the best suggestion.
We can also supply products related to our machines
