Quick Details
-
Application:
-
USB control transmission
-
Type:
-
standard
-
Series:
-
standard
-
Features:
-
2500V USB HUB isolator
-
Mounting Type:
-
standard
-
Description:
-
2500V USB HUB isolator
-
Manufacturing Date Code:
-
New
-
Shipment Terms:
-
DHL FedEx EMS
-
MOQ:
-
Sample
-
Warranty:
-
3 Months
-
Package Type:
-
Electrostatic Bag
-
Quality:
-
High-quality
-
Payment:
-
1.T/T 2.Western Union 3.Paypal
-
Lead time:
-
1-3days
-
Price:
-
please contact us
-
Skype:
-
+8615323400276
-
Distributor:
-
BoyiDa
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ADUM3160
-
Model Number:
-
ADUM3160
-
Application:
-
USB control transmission
-
Type:
-
standard
-
Series:
-
standard
-
Features:
-
2500V USB HUB isolator
-
Mounting Type:
-
standard
-
Description:
-
2500V USB HUB isolator
-
Manufacturing Date Code:
-
New
-
Shipment Terms:
-
DHL FedEx EMS
-
MOQ:
-
Sample
-
Warranty:
-
3 Months
-
Package Type:
-
Electrostatic Bag
-
Quality:
-
High-quality
-
Payment:
-
1.T/T 2.Western Union 3.Paypal
-
Lead time:
-
1-3days
-
Price:
-
please contact us
-
Skype:
-
+8615323400276
-
Distributor:
-
BoyiDa
Product Description

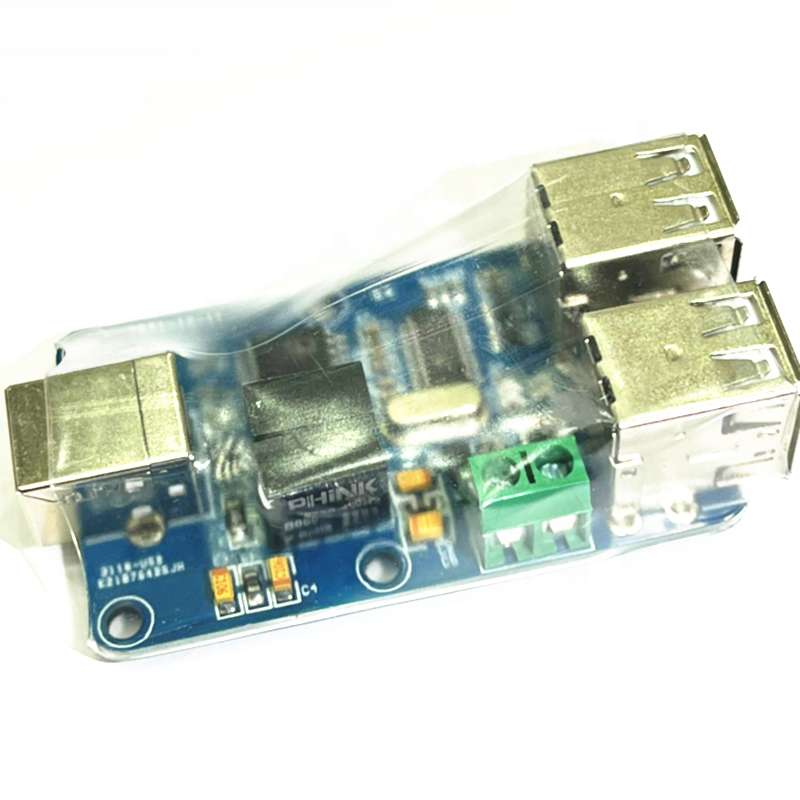

2500V USB HUB isolator, USB isolation board,ADUM3160 Support USB control transmission
USB 4-way isolation module compatible with USB 2.0,
Provide fully isolated 1.5 Mbps and 12 Mbps data rates, isolated 1500V voltage, no external power
Source, no driver required. USB port from external strong power supply, strong signal interference, USB for the computer
Port, computer motherboard escort. Second, functional features
1. Compatible with USB2.0
2. Isolation voltage of ADUM3160:2500V
3. Power module isolation voltage: 1500V
4. Support USB low speed 1.5mbps and full speed 12Mbps, not pure high-speed equipment
5. Support USB control transmission, batch transmission, interrupt transmission, synchronous/isochronous transmission
6. Power supply: from USB port of computer host
7. External power supply DC5v, with reverse connection protection
8. On-board output power of jinshengyang B0505S is 1x2W. When the total operating current of USB device is >400mA, External DC5V power supply is required
9. Drive free, support hot plug, plug and play
10. Each USB port is equipped with USB dedicated ESD protection chip
11. The output four USB ports are not isolated from each other, and each output channel is equipped with USB status indicator
Hardware introduction and description
Board size: 63*37mm
Weight: 54 g
Provide fully isolated 1.5 Mbps and 12 Mbps data rates, isolated 1500V voltage, no external power
Source, no driver required. USB port from external strong power supply, strong signal interference, USB for the computer
Port, computer motherboard escort. Second, functional features
1. Compatible with USB2.0
2. Isolation voltage of ADUM3160:2500V
3. Power module isolation voltage: 1500V
4. Support USB low speed 1.5mbps and full speed 12Mbps, not pure high-speed equipment
5. Support USB control transmission, batch transmission, interrupt transmission, synchronous/isochronous transmission
6. Power supply: from USB port of computer host
7. External power supply DC5v, with reverse connection protection
8. On-board output power of jinshengyang B0505S is 1x2W. When the total operating current of USB device is >400mA, External DC5V power supply is required
9. Drive free, support hot plug, plug and play
10. Each USB port is equipped with USB dedicated ESD protection chip
11. The output four USB ports are not isolated from each other, and each output channel is equipped with USB status indicator
Hardware introduction and description
Board size: 63*37mm
Weight: 54 g
Scope of application:
(1) contain strong electricity, strong interference in the working environment
Part of the circuit contains strong electricity, strong interference (such as high voltage, frequency converter, motor drive, etc.) environment, involving computers
Connection of the occasion, must be isolated to ensure computer, personal safety.
(1) contain strong electricity, strong interference in the working environment
Part of the circuit contains strong electricity, strong interference (such as high voltage, frequency converter, motor drive, etc.) environment, involving computers
Connection of the occasion, must be isolated to ensure computer, personal safety.
The field of noise sensitivity
Computers are a big source of noise. In noise-sensitive areas, we can connect USB port through this device
Isolation. Such as high - precision USB data acquisition system, HIFI sound system.
USB debugging equipment
Such as a variety of USB JTAG/SWD emulator, ISP/ASP/IAP/ICP downloaders. When you've been debugging
The process is often unable to connect, simulation exception, you can use USB isolator to try to improve.
Various kinds of industrial control USB devices
In industrial environment, USB devices often crash, such as USB mouse, keyboard, USB serial port and other communication equipment. USB
Isolators can effectively reduce the industrial environment of these equipment crash and damage. Sometimes you need to extend the USB cable, USB
The isolator ACTS as an excellent USB repeater and isolates the differential pressure between upstream and downstream devices.
5. Other common USB peripherals, such as mouse, keyboard,USB sound card,USB flash disk, printer, digital camera,USB HUB,
USB camera.
· medical equipment
The safety of the human body is the most important and primary consideration, but some medical devices are connected to computers via USB ports,
Direct electrical contact with the human body is required during data collection or treatment, and possible computer access is avoided
The high voltage transmitted to the human body through the device and the interface circuit causes electric shock, and the electrical isolation of the interface circuit becomes an important protection One of the measures.
