Quick Details
-
Marketing Type:
-
Hot Product
-
Reverse Speed(km/h):
-
25
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
6880*2375*3150mm
-
Certification:
-
ISO
Quick Details
-
Forward Speed(km/h):
-
39
-
Engine Brand:
-
imported
-
Working diameter:
-
/
-
Marketing Type:
-
Hot Product
-
Reverse Speed(km/h):
-
25
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
6880*2375*3150mm
-
Certification:
-
ISO

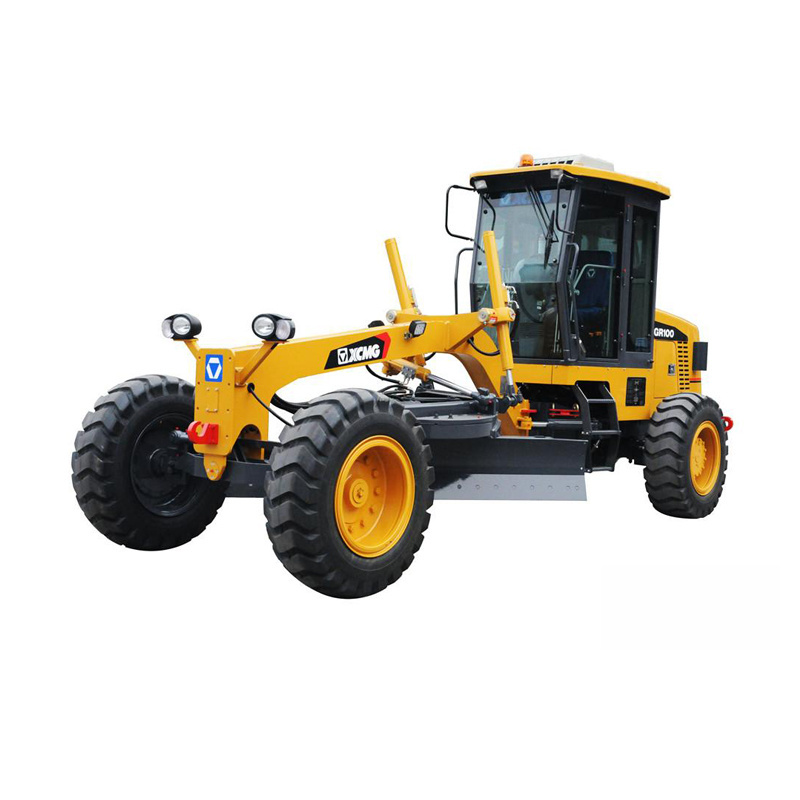

China xuzhou made 100hp new mini motor wheel road grader gr100 cheap price for sale
1.GR100 adopts Dongfeng Cummin s 4BTA3.9-C100-II (SO11847) turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2.The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3.The drive axle is a dedicated axle.
4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
5.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
6.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
Basic specification | |
Engine model | 4BT3.9 |
Rated power/speed | 75/2400kw/rpm |
Dimension(LxWxH) | 6880×2375×3150mm |
Operating weight(Standard) | 7000kg |
Performance specification | |
Travelling speed ,forward | 5,10,20,39km/h |
Travelling speed ,reverse | 8,25km/h |
Tractive force(f=0.75) | 41.6KN |
Max. gradeability | 20% |
Tire inflation pressure | 350KPa |
Working hydraulic pressure | 16MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | 17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 5.9m |
Biade | |
Maximum lift above ground | 300mm |
Maximum depth of cutting | 350mm |
Maximum blade position angle | 45° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 120° |
Moldboard width X height | 3048×500mm |
