Quick Details
-
Voltage:
-
380V/50HZ/60HZ or customize
-
Dimension(L*W*H):
-
1720*1120*1570mm
-
Weight:
-
1150kg
-
Air capacity:
-
9.3m3/min or customize
-
Product name:
-

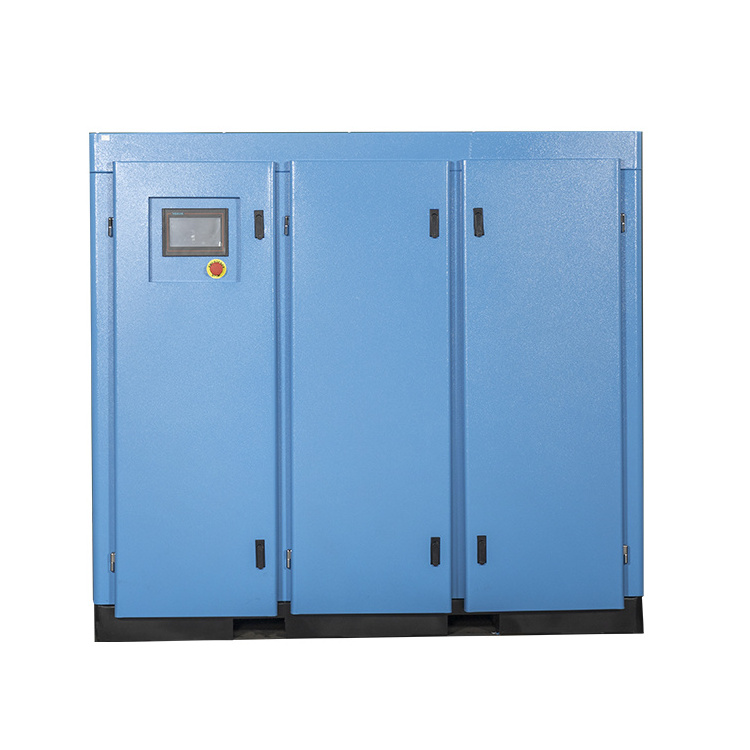

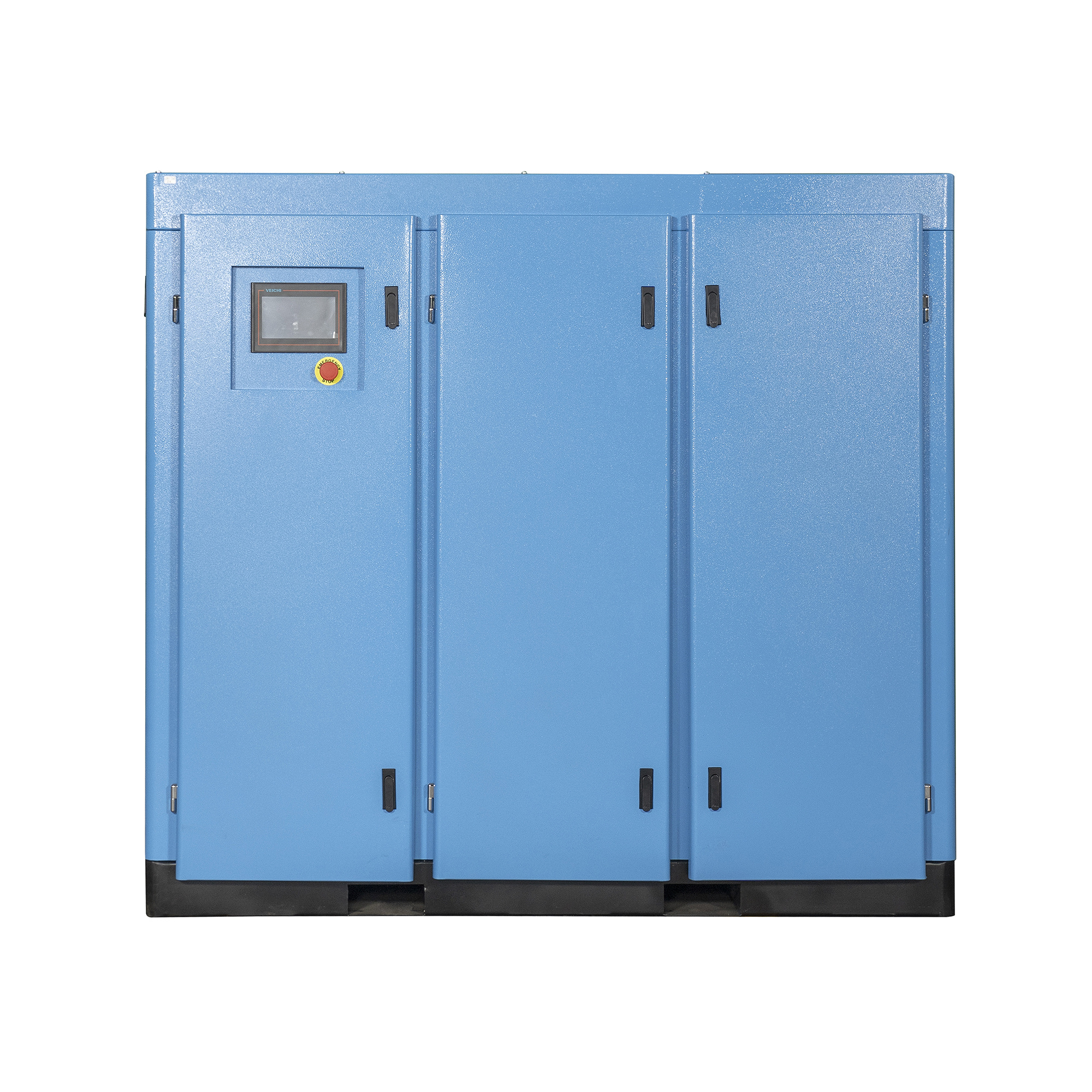

hot sale industrial 380v belt drive screw air compressor 55kw 19bar
-
Keywords:
-
belt drive air cooled screw air compressor
-
MOQ:
-
1 Set
-
Power:
-
55kw
-
Title:
-
Screw Air Compressor
-
Compressed medium:
-
Air Gas
-
Feature:
-
Easy Operation
-
Application:
-
Compressed Air
-
OEM:
-
Avaliable
-
Model:
-
OPV-75A
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ORM
-
Model Number:
-
OPV-75A
-
Voltage:
-
380V/50HZ/60HZ or customize
-
Dimension(L*W*H):
-
1720*1120*1570mm
-
Weight:
-
1150kg
-
Air capacity:
-
9.3m3/min or customize
-
Product name:
-
hot sale industrial 380v belt drive screw air compressor 55kw 19bar
-
Keywords:
-
belt drive air cooled screw air compressor
-
MOQ:
-
1 Set
-
Power:
-
55kw
-
Title:
-
Screw Air Compressor
-
Compressed medium:
-
Air Gas
-
Feature:
-
Easy Operation
-
Application:
-
Compressed Air
-
OEM:
-
Avaliable
-
Model:
-
OPV-75A
Product Description
|
name
|
Permanent magnet inverter screw compressor
|
Model
|
OPV-75A
|
|
Exhaust volume，m3/min
|
9.3
|
Exhaust pressure，Mpa
|
0.8
|
|
Safety valve opening pressure，Mpa
|
0.96
|
Cooler outlet temperature，℃
|
≤Ambient temperature+15
|
|
Exhaust oil content，mg/m3
|
2～4
|
Amount of lubricating oil，L
|
50
|
|
Compact the media
|
air
|
Transmission mode
|
Flexible coupling
|
|
Motor model
|
TYC55-3000-Z200L8
|
Motor speed，r/min
|
3000
|
|
Motor power rating，KW
|
55
|
Motor power supply specifications
|
220V/380V/50HZ/60HZ/3P
|
|
Motor protection class
|
IP54
|
Motor service factor
|
1.2
|
|
Motor insulation level
|
F
|
Motor starting mode
|
Frequency conversion start
|
|
Inverter model
|
AP100-T3-55K
|
Inverter brand
|
VEICHI
|
|
Frequency converter protection level
|
IP20
|
Maximum output current of the frequency converter
|
110A
|
|
Compressor cooling method
|
Air cooled
|
Compressor control method
|
Intelligent controller
|
|
Cooling fan power(W)
|
1100
|
Cooling air volume m3/h
|
10500
|
|
Compressor noise dB(A)
|
75±3
|
Exhaust port size
|
Rp2
|
|
Form factor（L×W×H）mm
|
1720×1120×1570
|
Weight(Kg)
|
1150
|
