Quick Details
-
Rated current:
-
25, 40, 63A
-
Rated voltage:
-
240/415V
-
Frequency:
-
50/60Hz
-
Breaking capacity:
-
6kA
-
Residual current characteristics:
-
AC type
-
Electrical life:
-
15000times/Operations
-
Mechnical Life:
-
20000times/Operations
-
Release type:
-
Electromagnetic
-
Degree of protection:
-
IP20
-
Material:
-
High Standard Plastic Sliver Copper
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EBASEE
-
Model Number:
-

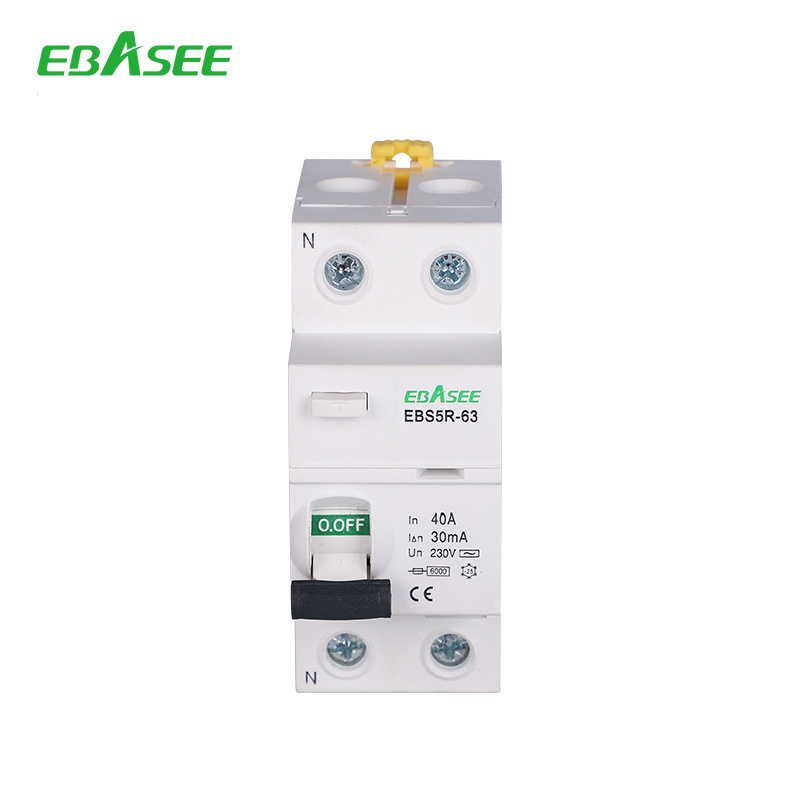

EBS5R
-
Rated current:
-
25, 40, 63A
-
Rated voltage:
-
240/415V
-
Frequency:
-
50/60Hz
-
Breaking capacity:
-
6kA
-
Residual current characteristics:
-
AC type
-
Electrical life:
-
15000times/Operations
-
Mechnical Life:
-
20000times/Operations
-
Release type:
-
Electromagnetic
-
Degree of protection:
-
IP20
-
Material:
-
High Standard Plastic Sliver Copper
Products Description
Miniature Circuit Breaker
Function
Electro-magnetic release, voltage independent.
High ability of with-standing short circuit current
Visible-trip window: fault tripping is indicated by a red mechanical indicator on the front face
Insulated terminal: 1P+N, 3P+N
Contacts position indicating:
The green “OFF” mark on the handle indicates the cut-off of the circuit, guarantees the safety of down streamoperation
|
Model name
|
EBS5R
|
|
Standard
|
IEC61008-1
|
|
Poles
|
1P+N, 3P+N
|
|
Rated current In(A)
|
25, 40,63A
|
|
Rated voltage Un(V)
|
230/400V AC 50/60Hz
|
|
Tripping sensitivities
|
AC
|
|
Insulation voltage (Ui)
|
500V
|
|
Rated impulse withstand voltage (Uimp)
|
6kV
|
|
Pollution degree
|
3
|
|
Installation
|
Installed on 35mm DIN rail
|
Applicable Working and bus bar connection
|
Ambient temperature
|
|
-5~+40℃, the average value cannot exceed to +35℃ within 24h
|
|
Altitude
|
|
≤2,000m
|
|
Relative humidity
|
|
≤95%
|
|
Pollution level
|
|
II.
|
|
Installation location
|
|
Mount on the place where has no obvious vibration or impact
|
