This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot
wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed
jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.The two vertical
manganese jaw plates create a V-shaped cavity called the crushing chamber, where the top of the crushing chamber is larger than
the bottom.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
RD
-
Dimension(L*W*H):
-
1100*860*1120MM
-
Weight:
-
1300 KG
-
Marketing Type:
-
New Product
-
inlet size:
-
220*350mm
-
Maximum feed size:
-
190mm
-
Belt wheel size (diameter * width):
-
680*120mm
-
Triangle belt specification/ quantity:
-
4 pieces
-
Number of moving jaw plates:
-
1 piece
-
Number of static jaw plates:
-
1 piece
-
Number of side lining plates:
-
2 pieces
-
power:
-
11kw
-
Discharge port adjustment range:
-
18-70mm
-
out shell thickness:
-
20mm
Quick Details
-
Application:
-
Construction
-
Capacity(t/h):
-
4-14T/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RD
-
Dimension(L*W*H):
-
1100*860*1120MM
-
Weight:
-
1300 KG
-
Marketing Type:
-
New Product
-
inlet size:
-
220*350mm
-
Maximum feed size:
-
190mm
-
Belt wheel size (diameter * width):
-
680*120mm
-
Triangle belt specification/ quantity:
-
4 pieces
-
Number of moving jaw plates:
-
1 piece
-
Number of static jaw plates:
-
1 piece
-
Number of side lining plates:
-
2 pieces
-
power:
-
11kw
-
Discharge port adjustment range:
-
18-70mm
-
out shell thickness:
-
20mm
Products Description
Jaw Crusher, also known is a crusher composed of two jaw plates, a moving jaw and a stationary jaw, which simulates the movement of two jaws of an animal to complete the crushing operation of the material.
This series of jaw crusher has the characteristics of large crushing ratio, uniform product size, simple structure, reliable work, easy maintenance and economical operation.
Product Applications
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Jaw crusher can break the waste construction waste into 10-20mm small stones, but also can separate the steel bar in the construction waste. Reuse of waste can be achieved。
* Color can be customized

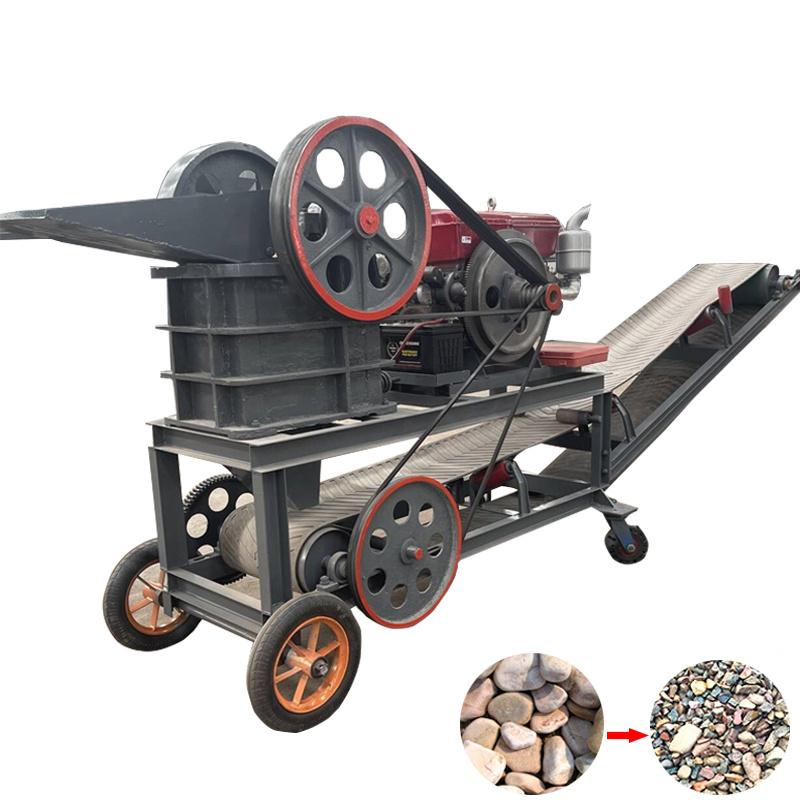

* Power can be configured with motor or diesel engine
* Can be customized single or mobile crushing production line
Product Paramenters
|
model
|
max feeding size(mm)
|
capacity(t/h)
|
output size(mm)
|
power(kw)
|
weight(kg)
|
|
pe150*250
|
125
|
1-3
|
10-40
|
5.5
|
1160
|
|
pe200*300
|
180
|
2-6
|
15-50
|
7.5
|
1240
|
|
pe200*350
|
180
|
3-10
|
18-60
|
11
|
1520
|
|
pe250*400
|
210
|
5-20
|
20-80
|
15
|
1570
|
|
pe400*600
|
340
|
14-36
|
40-100
|
37
|
5800
|
|
pe500*750
|
425
|
30-80
|
50-120
|
45
|
9000
|
|
pe600*900
|
500
|
56-192
|
75-200
|
75
|
18900
|
Our Service
1>. Assist clients to prepare for the first construction scheme;
2>. Install, debug and examine the equipment;
3>. Provide technical support through video;
4>. Offer spare parts at a best price for long term.
5>.We provide 1 years warrenty &technical support to ensure the machine run smoothly.
2>. Install, debug and examine the equipment;
3>. Provide technical support through video;
4>. Offer spare parts at a best price for long term.
5>.We provide 1 years warrenty &technical support to ensure the machine run smoothly.
