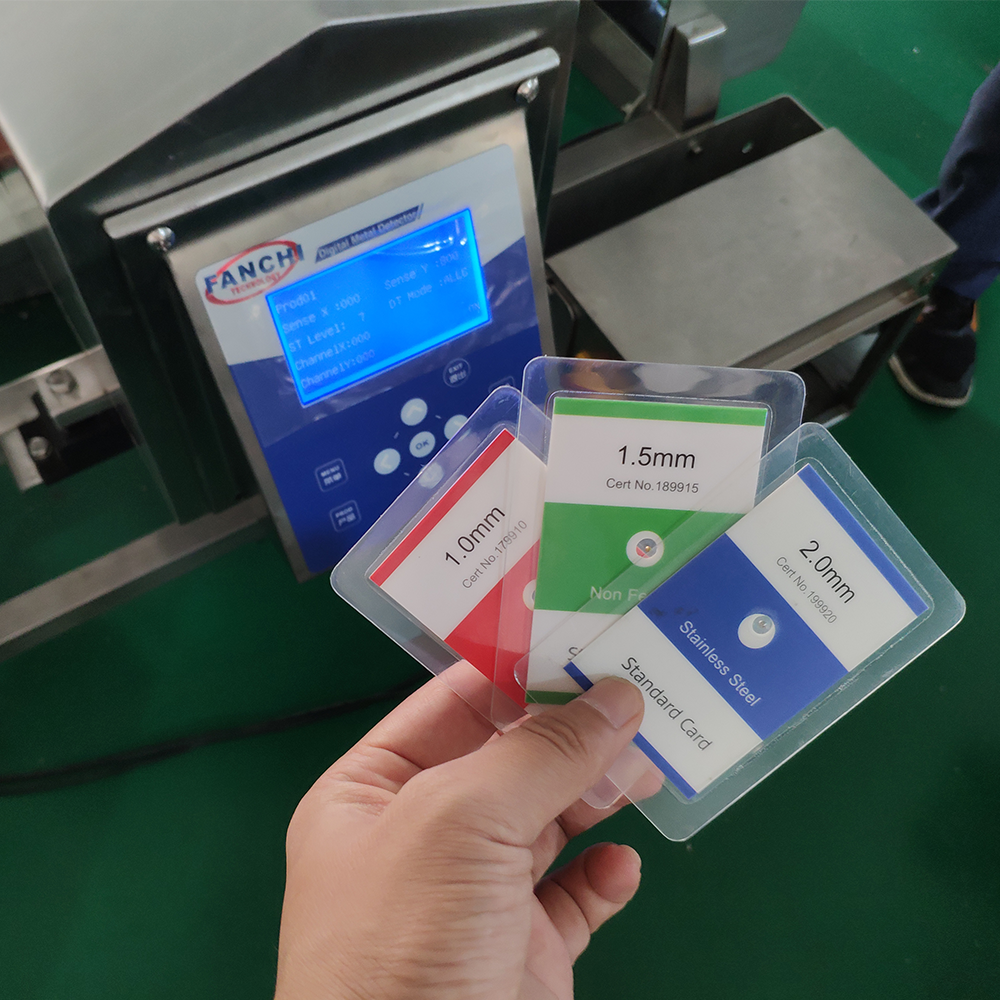

The test samples, which are available in a range of sizes, follow an internationally recognized color coding system and are
suitable for use with all metal detection and x-ray machines.
For metal detection systems, ferrous samples are marked in red, brass in yellow, stainless steel in blue and aluminum in green.
Soda lime glass, PVC and Teflon, which are used to test x-ray systems, are marked in black.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Fanchi-tech
-
Model Number:
-
FA-MD-II
-
Material:
-
Metal Ball and Plastic
-
Size:
-
78X44MM, Fe: 0.2mm--4.5, Non-Fe:0.3-4.5mm S/S304:0.4-4.5mm
-
Main Material:
-
Metal Balls&Plastic Card/Block/Wand
-
Certificates:
-
CE/ISO
-
Application:
-
Food/Chemical Industry/Pharmaceutical...
-
Name:
-
Metal Detector Test Pieces Test Sample with Certificate
-
Power Supply:
-
220V 50/60Hz(Customized)
-
Options:
-
Unique Test Sample Certificate from Authorized Organization
-
Lead Time:
-
Standard: 3-5 days; Customization: two weeks
-
Other Test pieces available:
-
Soda lime glass, PVC
-
Battery:
-
NA
-
Power:
-
N/A
Quick Details
-
Warranty:
-
1 year, 12 Months
-
Type:
-
Product Inspection
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Fanchi-tech
-
Model Number:
-
FA-MD-II
-
Material:
-
Metal Ball and Plastic
-
Size:
-
78X44MM, Fe: 0.2mm--4.5, Non-Fe:0.3-4.5mm S/S304:0.4-4.5mm
-
Main Material:
-
Metal Balls&Plastic Card/Block/Wand
-
Certificates:
-
CE/ISO
-
Application:
-
Food/Chemical Industry/Pharmaceutical...
-
Name:
-
Metal Detector Test Pieces Test Sample with Certificate
-
Power Supply:
-
220V 50/60Hz(Customized)
-
Options:
-
Unique Test Sample Certificate from Authorized Organization
-
Lead Time:
-
Standard: 3-5 days; Customization: two weeks
-
Other Test pieces available:
-
Soda lime glass, PVC
-
Battery:
-
NA
-
Power:
-
N/A
Product Overview
Fanchi-tech Conveyor Metal Detector FA-MD-II
A new line of food safety-approved x-ray and metal detection system test samples will offer the food processing sector a helping hand in ensuring that production lines meet increasingly strict food safety demands, the product developer had claimed.
Fanchi Inspection is an established supplier of metal detection and x-ray inspection solutions for industries including food, has launched a collection of approved test samples to prevent the contamination of food with materials such as plastic, glass and stainless steel.
Fanchi Inspection is an established supplier of metal detection and x-ray inspection solutions for industries including food, has launched a collection of approved test samples to prevent the contamination of food with materials such as plastic, glass and stainless steel.
FEATURES AT A GLANCE
We have to meet these criteria for certified samples in order to meet the demands of customers. The food industry demands the use of products with certified test pieces for their product inspection systems
Test Pieces
Performance testing of metal detection and x-ray inspection systems is an essential part of quality management and ensures your production line is compliant. Associations including HACCP, BRC, IFS etc. and quality management systems such as ISO 9001 requires that the systems which are installed at critical control points (CCP) are routinely QA tested with the results documented. This is achieved using full calibrated test pieces.
All of Fanchi’s test pieces are made from the highest quality food grade materials, color-coded for easy identification and are supplied with certification for full traceability
Test Pieces Certified by Domestic Third Party
Certificated issued by Fanchi-tech
Test Pieces Certified by International Established Party
Inspection Solutions for Food Indstries
Fanchi-tech is committed to continuously providing advanced Product Quality Assurance solutions for food industries. We offer a broad range of cutting edge food inspection equipment and quality assurance solutions, Moreover, Fanchi-tech closely supports our customers to build, improve, or maintain their quality assurance programs, while complying with local regulations and standards.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Product Name
|
Fanchi-Tech FA-MD-II Conveyor Metal Detector For Food
|
|
2
|
Material of Construction
|
304 Brushed stainless steel
|
|
3
|
Power Supply
|
220-240 VAC, 50-60 Hz, 1 Ph, 400W
110 VAC, 60 Hz, 1 Ph, 400W |
|
4
|
Temperature Range
|
-10 to 40° C (14 to 104° F)
|
|
5
|
Humidity
|
0 to 95% Relative Humidity (Non-condensing)
|
|
6
|
Belt Speed
|
5-45m/min(variable)
|
|
7
|
Conveyor Belt Material
|
Food level PU belt
|
|
8
|
Operation Panel
|
Key Pad(Touch Screen is optional)
|
|
9
|
Product Memory
|
100
|
|
10
|
Rejecting Mode
|
Sound and light alarm
|
|
11
|
Software Language
|
English(Spanish/French/Russian, etc optional)
|
|
12
|
Conformity
|
CE (Declaration of Conformityand Declaration of Manufacturer)
|
|
13
|
Automatic Reject Options
|
Belt-Stop / Stop On Detect, Pusher, Air-blast, Flipper, Flap, etc
|
|
14
|
Technology
|
Advanced Digital Signal Processing with Auto-Learn Settings Vibration and electrical noise Resistant
|
Key Components
● Durable EMA alarming tower
● US ferromagnetic random access memory
● Japanese Oriental motor
● SUS 304 roller bearing
● US ferromagnetic random access memory
● Japanese Oriental motor
● SUS 304 roller bearing
● Food grade PU conveyor belt
● Japanese SMC pneumatic components
● Danish Danfoss frequency converter
● Optional keypad and touch screen HMI.
● Japanese SMC pneumatic components
● Danish Danfoss frequency converter
● Optional keypad and touch screen HMI.
