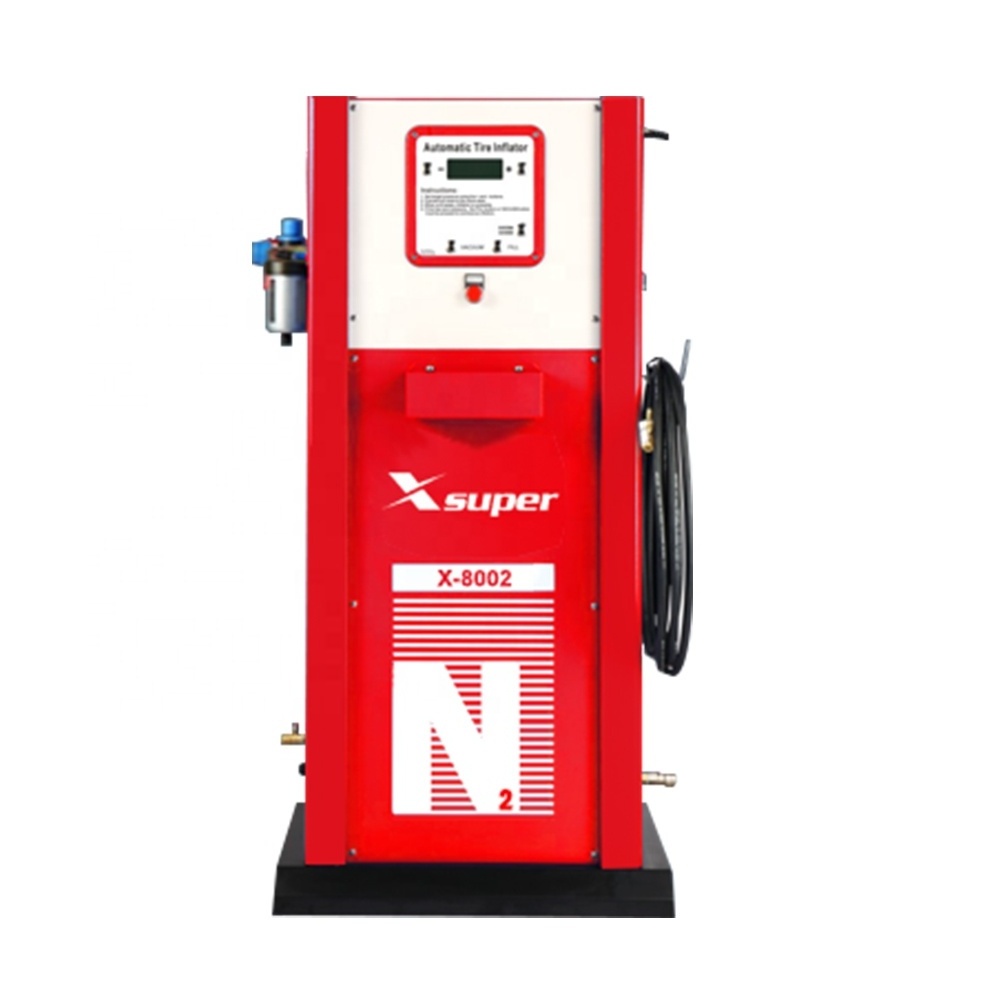

Full automatic digital Car Tire Nitrogen Generator N2 Inflatable Digital System Car Tyre Inflator

Full automatic digital Car Tire Nitrogen Generator N2 Inflatable Digital System Car Tyre Inflator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1902

≥20 Pieces

US $1802

≥40 Pieces

US $1702

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Keyword:: Nitrogen Generator

Purity:: 95-99+%

Application:: Motorcycle, Car

Power Requirement:: Power Requirement

Power Consumption:: 30VA

Operating Temperature Range:: -20°C/-4°F to 70°C/158°F

Maximum Compressed Air Input:: 123PSI/8.5bar/850kPa

Compressed Air Input Flow:: 250L/min (8.0cfm)

Nitrogen Outpu:: 58L/min (2.0cfm)

Maximum Nitrogen Pressure in Tank:: 102PSI/7bar/700kPa

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Lawrence

Weight:: 97 KG

Keyword:: Nitrogen Generator

Purity:: 95-99+%

Application:: Motorcycle, Car

Power Requirement:: Power Requirement

Power Consumption:: 30VA

Operating Temperature Range:: -20°C/-4°F to 70°C/158°F

Maximum Compressed Air Input:: 123PSI/8.5bar/850kPa

Compressed Air Input Flow:: 250L/min (8.0cfm)

Nitrogen Outpu:: 58L/min (2.0cfm)

Maximum Nitrogen Pressure in Tank:: 102PSI/7bar/700kPa

Vacuum Nitrogen Generator and Tyre Inflator

Pre-Filter/s: 1

Internal Nitrogen Storage Tank: 50L

External Nitrogen Storage Tank: No

Inflator Display: Large backlight LCD

Nitrogen Outlet/s: 1

8M/26ft Hose with Closed Chuck: No

10M/32.8ft Hose with Open Chuck: 1

10M/32.8ft Hose with Fitting: No

Nitrogen Purity Test Port: Yes

Adjustable Lower Purge Pressure Limit: Yes

Auto-Start Inflation: Yes

Automatic Zero Drift Adjustment: Yes

Vandal Resistant Mechanical Switches: Yes

Product Features

1. Suit for: Motorcycle, Car

2. Pump the air from the tyre by the internal vacuum generator before

3. Auto-Start Inflation

4. Single Tyre Application

Technical Data

Application: Motorcycle, Car

Built-in Automatic Tyre Inflator：Yes

Power Requirement: 100-240Vac 50/60HZ

Power Consumption: 30VA

Operating Temperature Range: -20°C/-4°F to 70°C/158°F

Maximum Compressed Air Input: 123PSI/8.5bar/850kPa

Compressed Air Input Flow: 500L/min (17.0cfm)

Nitrogen Purity: 95-99+%

Nitrogen Output: 42L/min (2.0cfm)

Maximum Nitrogen Pressure in Tank: 109PSI/7.5bar/750kPa

Maximum Inflator Set Pressure: 90PSI/7bar/620kPa

Minimum Inflator Set Pressure: 5PSI/0.3bar/35kPa

Application	Motorcycle, Car	Pre-Filter/s	Yes
Built-in Automatic Tyre Inflator	Yes	Internal Nitrogen Storage Tank	Yes
Power Requirement	100-240Vac 50/60HZ	External Nitrogen Storage Tank	No
Power Consumption	30VA	Inflator Display	Large backlight LCD
Operating Temperature Range	-20°C/-4°F to 70°C/158°F	Nitrogen Outlet/s	1
Maximum Compressed Air Input	123PSI/8.5bar/850kPa	8M/26ft Hose with Closed Chuck	No
Compressed Air Input Flow	250L/min (8.0cfm)	10M/32.8ft Hose with Open Chuck	1
Nitrogen Purity	95-99+%	10M/32.8ft Hose with Fitting	No
Nitrogen Output*	58L/min (2.0cfm)	Nitrogen Purity Test Port	Yes
Maximum Nitrogen Pressure in Tank	102PSI/7bar/700kPa	Adjustable Lower Purge Pressure Limit	Yes
Maximum Inflator Set Pressure	90PSI/6.2bar/620kPa	Auto-Start Inflation	Yes
Minimum Inflator Set Pressure	5PSI/0.3bar/35kPa	Automatic Zero Drift Adjustment	Yes
Over Pressure Setting (OPS)	0-29PSI/0-2.0bar/0-200kPa	Vandal Resistant Mechanical Switches	Yes
Nitrogen Purge and Fill Cycle (N2P)	0-9	Net Weight	89kg/196.2lbs
Inflator Accuracy	±1PSI/0.07bar/7kPa	Gross Weight	106kg/233.7lbs
Resolution	1PSI/0.1bar/5kPa	Dimensions (HeightWidthDepth)	1255720435(mm)
Units of Measurement	PSI/bar/kPa	Packing Size (HeightWidthDepth)	1380730510(mm)

Who We Are

More than 20 years of accumulation of four wheel alignment design and development,14 years of development and manufacturing of 3D wheel alignment,over 30 global patent technologies,over 200 technology upgrade. Lawrence provides professional equipment or service to more than 20 thousands customers in the world. Contact Information : 008617727664457 Sale Representative: Christin

Our Certifications

Our Exhibitions

Our Customers

FAQ

1.Q:Can we use 380V/50HZ as power supply ?

A:Yes,additional cost needed .

2.Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor. Welcome to join Lawrence!

3.Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.

4.Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax sowe suggest you pay in US dollars.

5.Q:What is delievery time ?
A:2 working days upon receiption of down payment .

6.Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation.
