- Product Details
- {{item.text}}
Quick Details
-
Horse Power:
-
18kw(6500r/min) 25HP
-
Brake:
-
4 wheel-hydraulic disc brake
-
Ignition System:
-
D.C.D.I
Quick Details
-
Displacement:
-
400cc, 400cc
-
Place of Origin:
-
Shandong, China
-
Transmission:
-
CVT
-
Horse Power:
-
18kw(6500r/min) 25HP
-
Brake:
-
4 wheel-hydraulic disc brake
-
Ignition System:
-
D.C.D.I
|
ENGINE
|

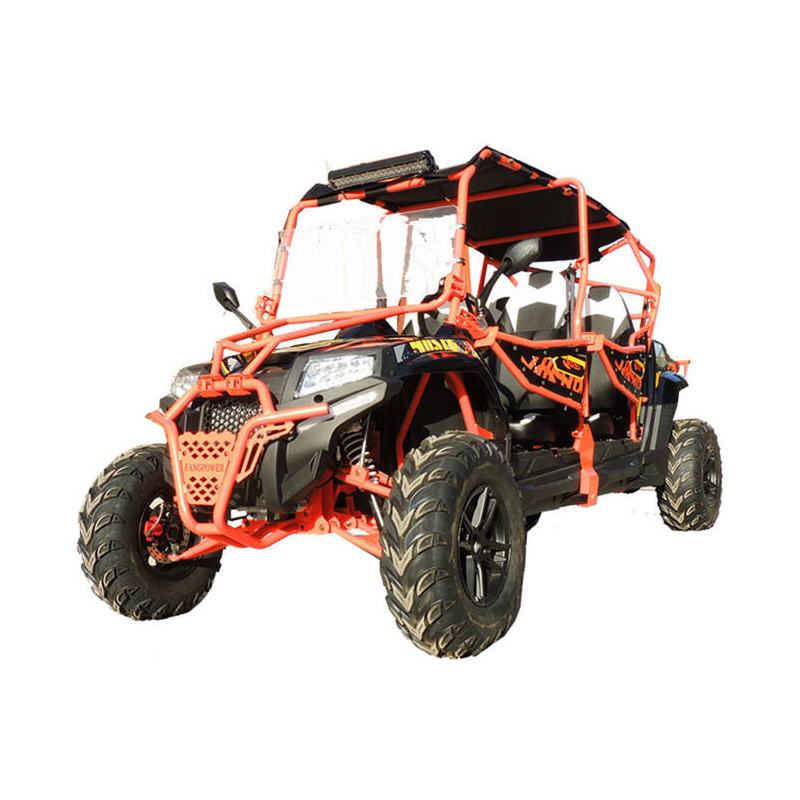

FX400- XL 4 seats
|
SUSPENSION/BRAKES
|
|
|
|
Engine type
|
4-stoke,Single-Cylinder, Water- cooled,Four value, balance axis
|
Suspension Front
|
Adjustable Double A-arm optional
|
|
|
Displacement
|
400cc
|
Suspension Rear
|
Fangpower 4-link庐bar Rear Suspension
|
|
|
Horse Power
|
18kw(6500rpm) 25HP
|
Brakes Front
|
220MM Front Dual Hydraulic Disk
|
|
|
Max Torque
|
25N.m/5000Rpm
|
Brakes Rear
|
220MM Rear Dual Hydraulic Disk
|
|
|
Value Configuration
|
SOHC
|
Steering
|
Rock and pinion steering
|
|
|
Compression ratio
|
10.3:1
|
|
|
|
|
FUEL SYSTEM
|
|
TIRES
|
|
|
|
Fuel Delivery System
|
Fuel Pump聽 Carburetor+Vacuum Diaphragm PZ 30 Carburetor
|
Front Tread
|
1250mm(49.2 in)
|
|
|
Choke System
|
Automatic
|
Rear Tread
|
1150mm(45.2in)
|
|
|
Fuel Capacity
|
9.5L(2.1 Gallon)
|
Front & Rear tire size
|
25x8-12 / 25x10-12
|
|
|
DRIVETRAIN
|
|
Front& Rear rim size(Alloy)
|
12x6/12x8
|
|
|
Drivenline Type
|
2x4
|
MISC
|
|
|
|
Final Drive
|
Shaft-drive
|
Loading information
|
2 units/20鈥
|
|
|
Transmission
|
Constantly Variable Transmission
|
Top speed
|
75km/h
|
|
|
Gear Selection
|
F-N-R
|
Dry weight
|
400kgs
|
|
|
ELECTRICAL SYSTEM
|
|
Gross weight
|
470kgs
|
|
|
Speed/Fuel meter
|
LED meter
|
Wheel Base
|
1980mm (78in)
|
|
|
Battery
|
12 AH 12V
|
Vehicle dimension(L脳W脳H)
|
3360x1450x1760mm(133x57x69in)
|
|
|
Forward Lights
|
Headlights-High&Low Beam LED LIGHT
|
Packing size
|
2980x1400x815mm
|
|
|
Rear Lights
|
Brake Lights& Left/Right Signal Lights
|
Ground clearance
|
300mm(11.8in)
|
|
|
Starting system
|
Electric start
|
Safety
|
Driver & Passenger Seat belts/ Driver and Passenger safety steel door.
|
|
|
Ignition system
|
D.C.D.I
|
|
|
|
FAQ
1: How to place an order?
1. Contact customer service to determine the freight and product model, configuration, quantity and
other detailed information (you can also arrange freight forwarding by yourself);
2. We provide you with a proforma invoice according to your final decision, which contains all product
details;
3. You need to arrange 30% of the payment to our bank account, and then we will prepare the product to start production (the
cycle is generally about 10 days, which can be shipped specifically for your order configuration quantity);
4. After the product is completed, the remaining payment is paid, and we arrange forwarder delivery (or we provide relevant
information to arrange forwarder transportation by ourselves).
5. After completing this process, the customer service will track the product location and notify you
when it is about to arrive and when it arrives, so that you can quickly prepare for customs clearance and other related
issues.
6. After getting the items,there will be a dedicated after-sales team waiting for your follow-up
feedback.
other detailed information (you can also arrange freight forwarding by yourself);
2. We provide you with a proforma invoice according to your final decision, which contains all product
details;
3. You need to arrange 30% of the payment to our bank account, and then we will prepare the product to start production (the
cycle is generally about 10 days, which can be shipped specifically for your order configuration quantity);
4. After the product is completed, the remaining payment is paid, and we arrange forwarder delivery (or we provide relevant
information to arrange forwarder transportation by ourselves).
5. After completing this process, the customer service will track the product location and notify you
when it is about to arrive and when it arrives, so that you can quickly prepare for customs clearance and other related
issues.
6. After getting the items,there will be a dedicated after-sales team waiting for your follow-up
feedback.
2.What is the warranty?
You can enjoy technical support by phone or email forever.We will provide a prompt solution.We also offer the most convenient and efficient spare parts support with competitive price.
3.What is the delivery time?
The delivery time is usually within 35 workdays after we received your prepayment.
4.Do you provide customized service?
Yes, we offer customized service as you need for the performance,including special requirements.
5. What does your FOB reference price include?
FOB price only includes cost. If you do not have your own freight forwarder,please provide us with a port near you Countries/regions, we will quote CIF prices including shipping costs.
