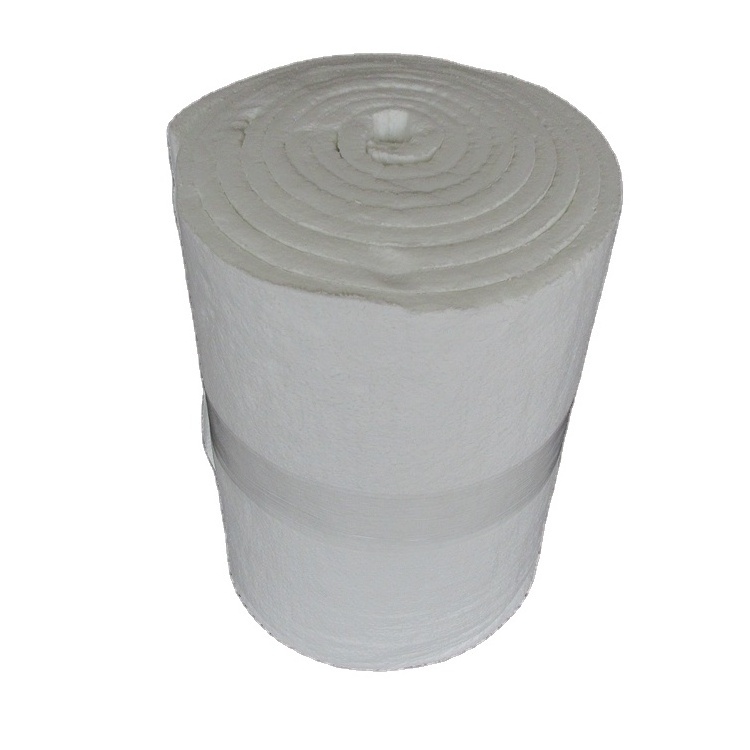

1260 ceramic fiber blanket high temperature kiln insulation blankets ceramic fiber wool

1260 ceramic fiber blanket high temperature kiln insulation blankets ceramic fiber wool

FOB Reference Price: Get Latest Price

≥1000 Square meters

US $7

≥5000 Square meters

US $6

≥10000 Square meters

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Ultimate Strength (≥ MPa):: 30/50/70

Density (kg/m³ ):: 128

Length:: 7200/3600mm(7320/3660mm)

Working Temperature:: 1260

Fiber Diameter:: 3-5μm

Shrinkage (1800 ℉, 3h):: 1050~1600 C.degree

Thermal Conductivity:: 0.06-0.12

Brand Name:: Ecoin

Place of Origin:: Tianjin, China

Material::: Ceramic Fiber Bulk Wool

Classification Temperature:: 1260

SiO2:: 62-68%

CaO:: 26-32%

MgO:: 4-7%

Permanent linear shrinkage:: 1000C*24h<1.0

Ttensile strenghth(_kPa):: 30/50/70

Density:: 64/96/128

Color:: white

Quick Details

Thickness:: 10-50mm, 1",1/2"2"

Width:: 600mm,610mm,1220mm

Chemical Composition:: Al2O3+SIO2≥99%

Ultimate Strength (≥ MPa):: 30/50/70

Density (kg/m³ ):: 128

Length:: 7200/3600mm(7320/3660mm)

Working Temperature:: 1260

Fiber Diameter:: 3-5μm

Shrinkage (1800 ℉, 3h):: 1050~1600 C.degree

Thermal Conductivity:: 0.06-0.12

Brand Name:: Ecoin

Place of Origin:: Tianjin, China

Material::: Ceramic Fiber Bulk Wool

Classification Temperature:: 1260

SiO2:: 62-68%

CaO:: 26-32%

MgO:: 4-7%

Permanent linear shrinkage:: 1000C*24h<1.0

Ttensile strenghth(_kPa):: 30/50/70

Density:: 64/96/128

Color:: white

Product Description

Biowool blanket is high strength, needled insulating blanket that ismade from
Biowool bulk.

The combination of spinning and needlingoperation produce tough,resilient and strong blankets,which havesuperior thermal and mechanical properties.

Biowool blanket is usedin a wide range of applications including thermal insulation, appliances.

Blanket can be folded,compressed and
encapsulated to producemodules.

It can meet European regulatory requirements
(Directive97/69/EC)

Standard Sizes

Nominal Density(kg) :64kg/m3, 96kg/m3, 128kg/m3
Lenght(mm) :7200/3600mm(7320/3660mm)
Width(mm) :600mm, 610mm, 1220mm
Thickness(mm) :10-50mm

Typical Applications and Application
Typical Applications
* Pipe wraps
* Furnace and kiln back-up insulation
* Annealing furnace linings
* Appliances insulation
* Expansion joint seals

Applications
* Industry furnace wall lining
* Back lining material
* Fire prevention
* High-temperature tube heat insulation material
* Module/folding block processing material
* Filling and sealing material in high temperature environment.
* Sound-absorbing/high temperature filtration materials.

Features

* Excellent thermal shock resistance
* Excellent thermal stability
* High tensile strength
* Low thermal conductivity
* Low heat storage

Specification

item	value
Grade	COM (Common)
Application	Liners Of Industrial Furnace
Thickness	6mm-50mm
Width	100mm-1220mm
Length	3.6m-14.64m
Chemical Composition	Al2O3+SIO2≥99%
Ultimate Strength (≥ MPa)	0.5Mpa (25mm thickness)
Working Temperature	1050~1600 C.degree
Fiber Diameter	3-5μm
Shrinkage (1800 ℉, 3h)	1050~1600 C.degree
Thermal Conductivity	0.06-0.12
Density (kg/m³ )	128
Brand Name	Ecoin
Place of Origin	China
	Tianjin
