Quick Details
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1950x900x1950mm
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
2.5
-

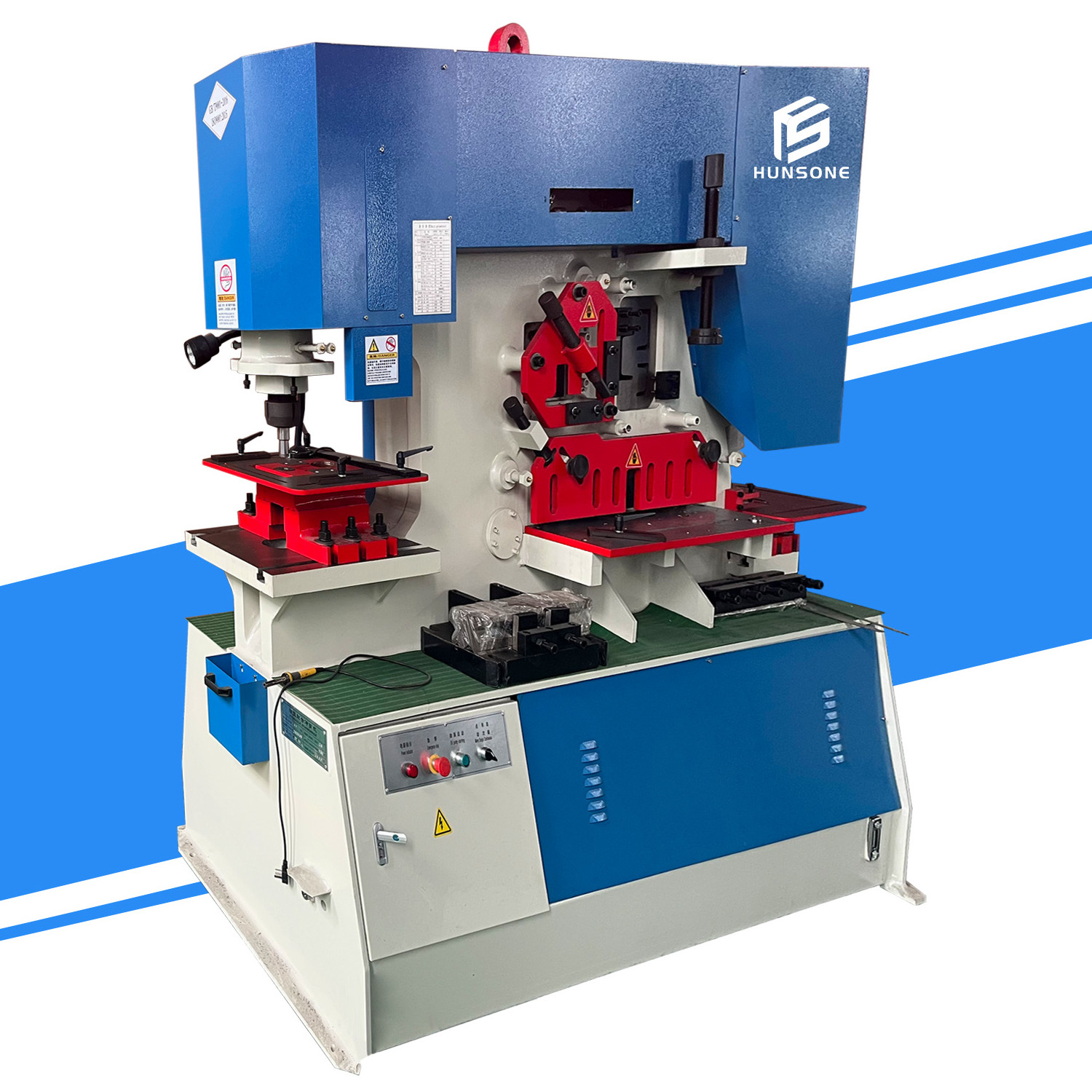

Product name:
-
Ironworker Machine
-
Function:
-
Steel Metal Punching
-
Machine Type:
-
Iron Working Machine
-
Keyword:
-
Mechanical Metal Punching Machine
-
Application:
-
Metal Sheet Stamping
-
Name:
-
Hydraulic Iron Worker Punch
-
Usage:
-
Pressing Metal Products
-
Type:
-
Multi-Function Machine
-
Model:
-
Deep Punching Machine
-
Local Service Location:
-
Korea
Quick Details
-
Nominal Force (kN):
-
900
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUNSONE
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1950x900x1950mm
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
2.5
-
Product name:
-
Ironworker Machine
-
Function:
-
Steel Metal Punching
-
Machine Type:
-
Iron Working Machine
-
Keyword:
-
Mechanical Metal Punching Machine
-
Application:
-
Metal Sheet Stamping
-
Name:
-
Hydraulic Iron Worker Punch
-
Usage:
-
Pressing Metal Products
-
Type:
-
Multi-Function Machine
-
Model:
-
Deep Punching Machine
-
Local Service Location:
-
Korea
Products Description
Details Images
Technical parameter
Related Products
|
Model
|
Q35Y-12
|
Q35Y-16
|
Q35Y-20
|
Q35Y-25
|
Q35Y-30
|
Q35Y-40
|
Q35Y-50
|
|
Punching
Pressure(T) |
35T
|
60T
|
90T
|
115T
|
145T
|
200T
|
250T
|
|
Max.cutting thickness of
steel plates(mm) |
12
|
16
|
20
|
25
|
30
|
40
|
50
|
|
Plate strength
(N/mm2) |
≤450
|
≤450
|
≤450
|
≤450
|
≤450
|
≤450
|
≤450
|
|
Angle of Shear
|
7
|
7
|
8
|
8
|
8
|
8
|
8
|
|
A trip size
(T×W)(mm) |
12x160
6x300 |
16×250
8×400 |
20×330
10×480 |
25×330
16×600 |
30×335
20×600 |
40×335
30×600 |
50×300
30×750 |
|
Trips frequency (times/min)
|
10-18
|
11-20
|
12-20
|
8-18
|
6-16
|
6-16
|
6-12
|
|
Throat depth(mm)
|
115
|
300
|
355
|
400
|
600
|
530
|
600
|
|
Punch depth(mm)
|
12
|
16
|
20
|
25
|
28
|
35
|
40
|
|
Max.punching diameter(mm)
|
25
|
25
|
30
|
35
|
38
|
40
|
45
|
|
Main Motor
Power(KW) |
4
|
5.5
|
7.5
|
11
|
15
|
18.5
|
18.5
|
|
Overall diamensions (L× W×H) (mm)
|
950×550×1800
|
1740×810×1830
|
1950×900×1950
|
2355×960×2090
|
2800×1050×2450
|
2900×1100×2500
|
3200×1440×2500
|
