Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor
Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor
Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor
Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor
Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor
Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor
Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor
Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor

Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor

FOB Reference Price: Get Latest Price
≥1 Sets
US $3700
≥10 Sets
US $2500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Voltage:
220V/380V
Marketing Type:
Hot Product 2021
Weight (KG):
350 kg
Product Name:
z type fruits vegetable snack chips potato modular belt conveyor
Frame material:
304 stainless steel
Belt material:
modular
Belt width:
30-60cm
lifting height:
100-800 cm
angle:
30-60 degree
speed:
adjustable
Baffle:
70-100 mm
inclined length:
made according to need
vibration hopper:
150L

Quick Details

Power:
750W
Warranty:
1 Year
Width or Diameter:
420mm
Place of Origin:
Guangdong, China
Voltage:
220V/380V
Marketing Type:
Hot Product 2021
Weight (KG):
350 kg
Product Name:
z type fruits vegetable snack chips potato modular belt conveyor
Frame material:
304 stainless steel
Belt material:
modular
Belt width:
30-60cm
lifting height:
100-800 cm
angle:
30-60 degree
speed:
adjustable
Baffle:
70-100 mm
inclined length:
made according to need
vibration hopper:
150L
Specification

Automatic industrial food grade vertical lift incline z type fruits vegetable snack chips potato modular belt conveyor :

Advantages:
1. The conveyor belt is made of food grade PP material and made by mold method, with good appearance, not easily deformed, bear high and low temperature.
2. The machine allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices.
3. The conveyors is easy installation and disassembly, the belt can be wash by water directly.


Inclined Conveyor is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical,
cosmetic, chemical industry, .such as snack foods, frozen foods, vegetables, fruits, chemicals and other granules.

Product Description
Frame
High quality 304 stainless steel or carbon steel
Working capacity
4--6M3/H
Complete belt width
420mm
Valid working belt width
300mm
Baffle height
70mm
Lifting height
320cm or others customized
Speed
Controlled by inverter, adjustable
Working power
Single phase 220V 50HZ or 3 phase 380V 50hz, 60hz
1.1KW
Belt material
food grade PP Modular plastic belt, PU or PVC belt

Belt material:

There are PP plastic modular belt, PVC green belt, PVC baffle belt or PU belt.

Control box:

High quality 304 stainless steel electric box, simple design, easy operation.
Inverter control the speed

Vibration feeder hopper:

Fully high quality 304 stainless steel vibration hopper, it is 150L
We can also can make its size and volume according to your need.
Its vibration frequency can be adjustable too.

Machines for customers:

We normally will make the conveyor according to customer's need, so the height, the angle, the material will be different.

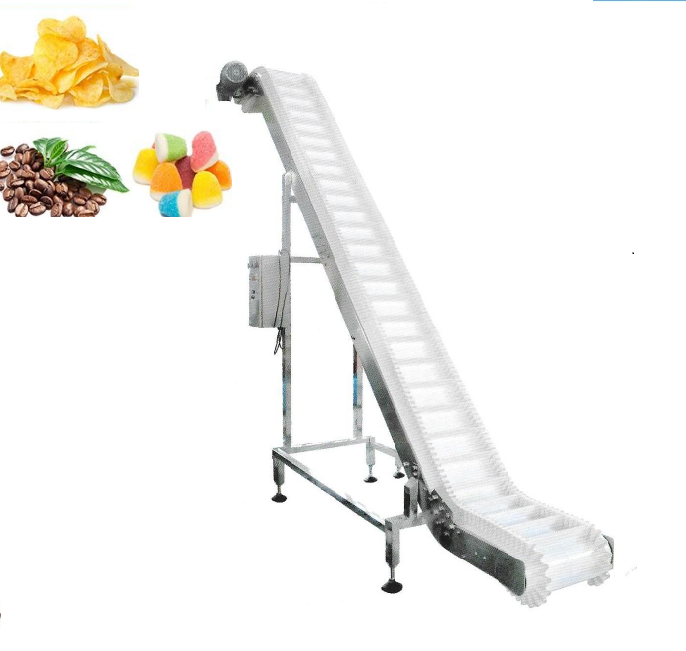

Z shape belt conveyor

This type of belt is chain plate with hook, so that the products can be 90 degree lift up without dropping.
Its speed is much faster than the Z bucket type elevator, as this is roller belt type conveyor. Working capacity will be much bigger too.

Packing:

All our machines are packed by new and strong wood similar cases, they are suit for long sea or land or air transportation.
