Quick Details
-
Brand Name:
-
Intel
-
Model Number:
-
M.2 nvme SSD case
-
Place of Origin:
-
Guangdong, China
-
Ports:
-
Thunderbolt 3 Type-C , M-Key NVMe connector
-
Chipset:
-
JHL6540 / TPS65983 / Si52112
-
Flash:
-
W25Q80DV 8Mbit
-
Power Consumption:
-
< 7 Watt
-
Rated Volt / Current:
-
5 Volt, <1.5A
-
Working Standard:
-
Laptop or Dssktop
-
Operating System Support:
-
Microsoft Windows &Mac OS
-
Max. Speed:
-
3,940 MB/s, Normally Sequential Read 2800MB/s / Write 2500MB/s
-
Product name:
-
Thunderbolt 3 AR SP M.2 PCI-E 3x4 SSD Enclosure
-
SSD type:
-
pci-e m.2 nvme port
Quick Details
-
Size:
-
1.8"
-
Case Material:
-
Aluminum
-
Internal Interface:
-
nvme
-
Brand Name:
-
Intel
-
Model Number:
-
M.2 nvme SSD case
-
Place of Origin:
-
Guangdong, China
-
Ports:
-
Thunderbolt 3 Type-C , M-Key NVMe connector
-
Chipset:
-
JHL6540 / TPS65983 / Si52112
-
Flash:
-
W25Q80DV 8Mbit
-
Power Consumption:
-
< 7 Watt
-
Rated Volt / Current:
-
5 Volt, <1.5A
-
Working Standard:
-
Laptop or Dssktop
-
Operating System Support:
-
Microsoft Windows &Mac OS
-
Max. Speed:
-
3,940 MB/s, Normally Sequential Read 2800MB/s / Write 2500MB/s
-
Product name:
-
Thunderbolt 3 AR SP M.2 PCI-E 3x4 SSD Enclosure
-
SSD type:
-
pci-e m.2 nvme port

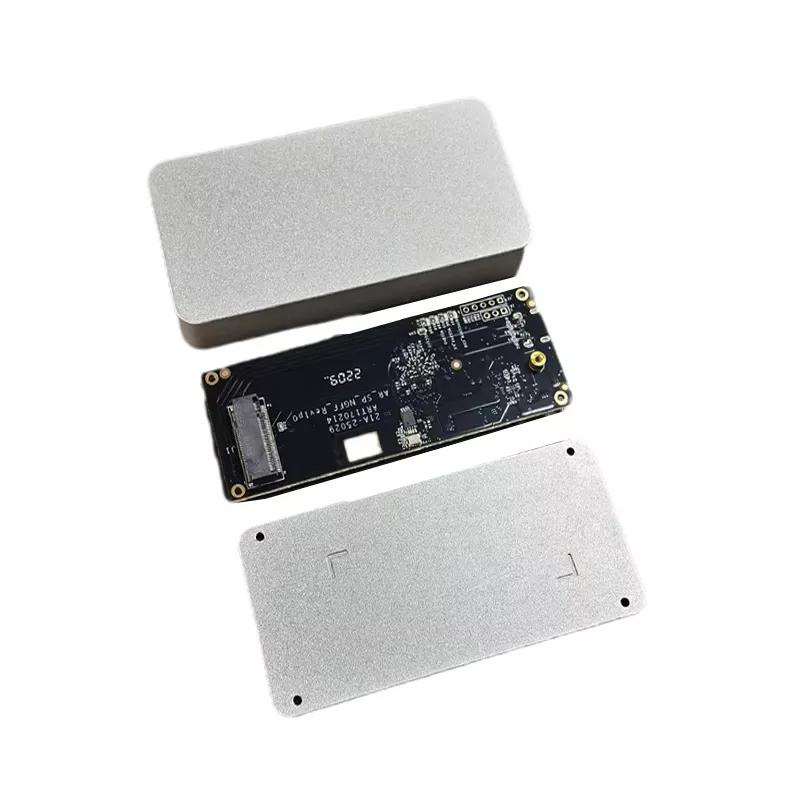

Product :Thunderbolt 3 AR SP M.2 PCI-E 3x4 SSD Enclosure
Thunderbolt 3 NVMe SSD Enclosure Pci-E To Nvme Ngff M-Key Ahci Ssd Convert Case
If you don't like this enclosure ,we can make your own designed enclosure case ,we can supply the single enclose PCB board.
Main Features:
Thunderbolt™ 3 NVMe SSD Enclosure is designed with unique aluminum with plastic chassis and user-friendly installation. It provides data transfer speed up to 6-7 times faster than SATA due to its NVMe spec (PCIeGen3 x4 lanes), and can transfer a 4K movie within seconds. The product is popular among Thunderbolt™ 3 systems users, Macbook enthusiasts for example.
1. Small and portable storage, aluminum design providing NVMe SSD giving maximum theoretical speed up to 3,940 MB/s
2. Thunderbolt™ 3 provides speed up to 40Gbps, allows NVMe SSDs to achieve peak performance, 6-7 times the sequential read/write speeds of SATA.
3. Heat sink integrated giving the best ventilation for NVMe SSD running at high speed.
4. Enclosure followed with 0.5m Thunderbolt 3 pigtail cable (Intel Certified) ensure NVMe SSD best performance
5. Plug-and-play connection, no installation need.
Specification Sheet :
|
Ports |
Thunderbolt 3 Type-C , M-Key NVMe connector |
|
Chipset |
JHL6540 / TPS65983 / Si52112 |
|
Flash |
W25Q80DV 8Mbit |
|
Power Consumption |
< 7 Watt |
|
Rated Volt / Current |
5 Volt, <1.5A |
|
Working Standard |
Laptop or Dssktop with Thunderbolt 3 hardware system
|
|
Operating System Support |
Microsoft Windows &Mac OS |
|
Max. Speed |
Maximum theoretical speed 3,940 MB/s, Normally
|
|
Certification
|
Intel |
|
Apple |
