Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
90-152 mm
-
Drilling Depth:
-
25 m
-
Mobility:
-
portable
-
Dimensions:
-
6300*2250*2700 mm
-
Drilling diameter:
-
90-152 mm
-
Depth of economical drilling:
-
25 m
-
Drilling hardness:
-
f=6-20
-
Rotary speed:
-
0-90 rpm
-
Feed stroke:
-
3175 mm
-
Travelling speed:
-
0-2.5 km/h
-
Climbing capacity:
-
≤30°
-
Ground clearance:
-
500 mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Dimension(L*W*H):
-
6300*2250*2700 mm
-
Weight:
-
5250 KG, 5250 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
90-152 mm
-
Drilling Depth:
-
25 m
-
Mobility:
-
portable
-
Dimensions:
-
6300*2250*2700 mm
-
Drilling diameter:
-
90-152 mm
-
Depth of economical drilling:
-
25 m
-
Drilling hardness:
-
f=6-20
-
Rotary speed:
-
0-90 rpm
-
Feed stroke:
-
3175 mm
-
Travelling speed:
-
0-2.5 km/h
-
Climbing capacity:
-
≤30°
-
Ground clearance:
-
500 mm
Product Parameters
Open Pit Mine Blast KG430 Crawler Ore Rock Hard Stone Quarrying Breaking Boring Machines
|
Weight
|
5250 KG
|
|
Dimensions
|
6300*2250*2700 mm
|
|
Drilling hardness
|
f=6-20
|
|
Drilling diameter
|
90-152 mm
|
|
Depth of economical drilling
|
25 m
|
|
Rotary speed
|
0-90rpm
|
|
Rotary torque
|
5000 N·m
|
|
Lifting force
|
40 KN
|
|
Method of Feed
|
Oil cylinder-leaf chain
|
|
Feed stroke
|
3175 mm
|
|
Travelling speed
|
0-2.5 km/h
|
|
Climbing capacity
|
≤30°
|
|
Ground clearance
|
500 mm
|
|
Tilt angle of Beam
|
Down 110°, up 35°, total 145°
|
|
Swing angle of boom
|
Left 91°, right 5°, total 96°
|
|
Pitch angle of drill boom
|
Down 55° up 15°, total 70°
|
|
Swing angle of drill boom
|
Left 32°, right 32°, total 64°
|
|
Leveling angle of track
|
±10°
|
|
Compensation length of beam
|
900 mm
|
|
Supporting power
|
Yuchai YC4DK80-T302 (58KW2200r/min)
|
|
DTH hammer
|
K40
|
|
Drilling rod
|
76*2 m + 76*3 m
|
|
Air consumption
|
13-20 m³/min
|
|
Maximum height of horizontal hole
|
2850 mm
|
|
Minimum height of horizontal hole
|
350 mm
|
Recommended air compressors
Diesel engine portable screw air compressor:
Kaishan KSCY-550/13;
Kaishan KSCY-580/17
Note: Air compressor selection subject to thole diameter and air hose length.
Product Features
Open Pit Mine Blast KG430 Crawler Ore Rock Hard Stone Quarrying Breaking Boring Machines
1. The Rig machine with Yuchai YC4DK80-T302 (58KW2200r/min), meeting environmental protection requirements.
2. The four-wheel belt of the folded track frame is adopted, and the frame has an automatic leveling function
3. High-pressure and large-displacement plunger motor travels to increase working pressure, increase climbing performance and overall machine transition efficiency
4. Optimize the structure of the drill arm to meet the needs of drilling at various angles.
Product Display

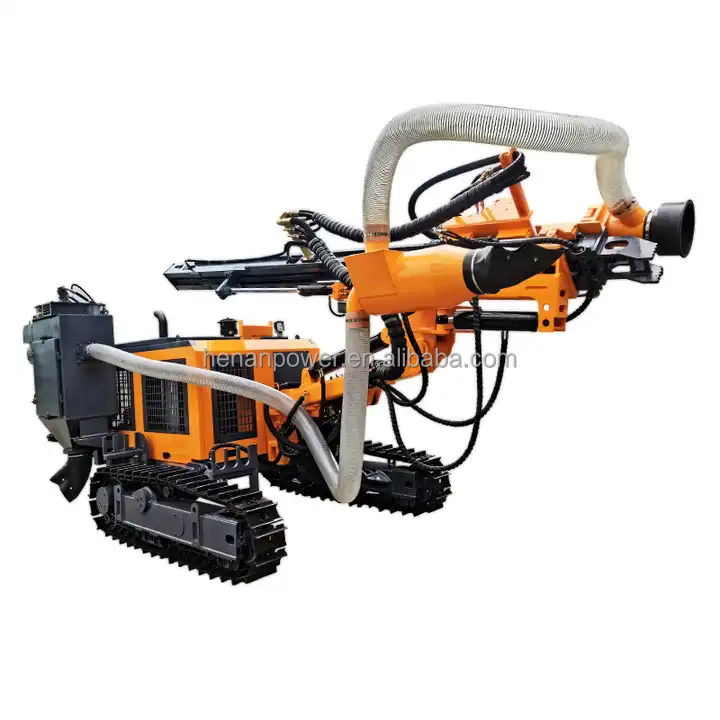

Open Pit Mine Blast KG430 Crawler Ore Rock Hard Stone Quarrying Breaking Boring Machines
