Quick Details
-
Voltage:
-
380V/50Hz or customrized
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Trihope
-
Dimension(L*W*H):
-
6460*1400*1500
-
Weight:
-
1900 KG
-
Certification:
-
ISO
-
Product scope:
-
Copper / Aluminum rectangular wire
-
Section area:
-
5-100mm2(String cable unit 4 sets)
-
Lapping pitch:
-
10~32 mm, step less adjustable
-
Lapping head rated speed:
-
500~600 rpm/min
-
Paper Pad OD:
-
330 mm
-
Paper Pad ID:
-
75 mm
-
Paper Pad width:
-
8~30 mm
-
Paper thickness:
-
0.040~0.125 mm
-
Carrying weight:
-
Max. 800 kg
Quick Details
-
Packaging Type:
-
Cartons, Other
-
Packaging Material:
-
Plastic, Wood, Other
-
Driven Type:
-
Electric
-
Voltage:
-
380V/50Hz or customrized
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Trihope
-
Dimension(L*W*H):
-
6460*1400*1500
-
Weight:
-
1900 KG
-
Certification:
-
ISO
-
Product scope:
-
Copper / Aluminum rectangular wire
-
Section area:
-
5-100mm2(String cable unit 4 sets)
-
Lapping pitch:
-
10~32 mm, step less adjustable
-
Lapping head rated speed:
-
500~600 rpm/min
-
Paper Pad OD:
-
330 mm
-
Paper Pad ID:
-
75 mm
-
Paper Pad width:
-
8~30 mm
-
Paper thickness:
-
0.040~0.125 mm
-
Carrying weight:
-
Max. 800 kg

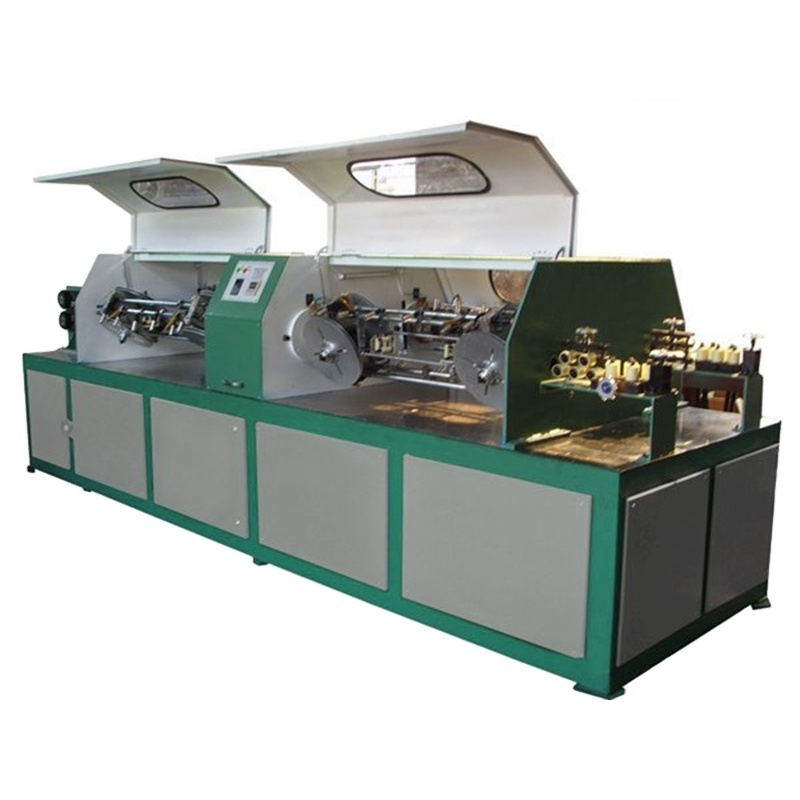

P aper Wrapping Machine
1.Notes to model code
1)WLZB-1/4 Paper Wrapping Machine
2)WLZB Horizontal Crawling Traction Paper Lapping Machine
3)1 /4 one product line with one paper tapping heads, each taping head may wrapping 4 layers of paper,
so it can wrap Max.1*4=4 in total
4) X Number of paper layers
| 2. Main data | |
| Product scope | Copper / Aluminum rectangular wire |
| Section area | 5~100 mm²(String cable unit 4 sets) |
| Lapping pitch | 10~32 mm, step less adjustable |
| Lapping head rated speed | 500-600 rpm/min |
| Paper Pad OD | 330 mm |
| Paper Pad ID | 75 mm |
| Paper Pad width | 8~30 mm |
| Paper thickness | 0.040~0.125 mm |
| 3. Scope of supply | |
| Main machine | 1 unit |
| FS-800 pay-off unit | 1 unit |
| LS-800 take-up unit | 1 unit |
| Electric control system | 1 set |
| Accessories | 1 set |
| Foundation layout | 1 set |
| Anchor bolts | 1 set |
| Technical documents | 1 set |
| 4.PS-800 pay off | 1 unit |
| Lifting and lowering by electric lift wooden dish,belt and pulley damping pay off | |
| Up/down | Motor |
| Clamping | Shaft |
| Carrying weight | Max. 800 kg |
| 5.WLZB-1/4 main machine components list in detail: | |
| 1)Straightening device | 1 set |
| 2)Paper tapping head | 2 set |
| 3)Pulling Caterpillar | 1 set |
| 4)Meter counter | 1 set |
| 6.LS-800 take up unit | 1 unit |
| 7.Electrical control |
