Quick Details
-
Model Number:
-
UBX50-18GM75-D4-H5
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BXUAN
-
Output:
-
0-10V/4-20mA/NPN/PNP/2*NPN/2*PNP
-

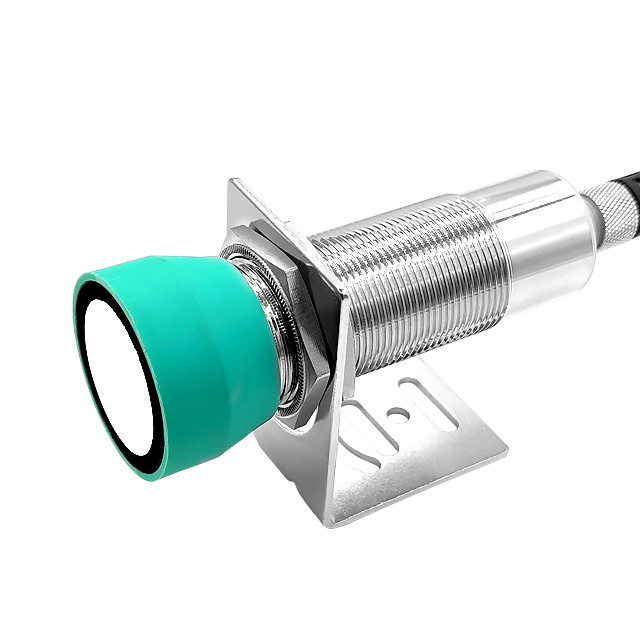

Name:
-
Ultrasonic Sensor
-
Detection Distance:
-
40-500mm
-
Material:
-
brass, nickel-plated
-
Installation Size:
-
M18
-
Connection Mode:
-
Connector plug/cable,2m
-
Dead band:
-
0-40mm
-
Output type:
-
NPN NO/NC
-
Protection level:
-
IP65
-
Connection method:
-
V15 (5 pin) M12 cable / 2 m PVC cable
-
Repeat accuracy:
-
1%
Quick Details
-
Use:
-
50-500mm
-
Mounting Type:
-
Vertical installation
-
Description:
-
Distance detection
-
Model Number:
-
UBX50-18GM75-D4-H5
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BXUAN
-
Output:
-
0-10V/4-20mA/NPN/PNP/2*NPN/2*PNP
-
Name:
-
Ultrasonic Sensor
-
Detection Distance:
-
40-500mm
-
Material:
-
brass, nickel-plated
-
Installation Size:
-
M18
-
Connection Mode:
-
Connector plug/cable,2m
-
Dead band:
-
0-40mm
-
Output type:
-
NPN NO/NC
-
Protection level:
-
IP65
-
Connection method:
-
V15 (5 pin) M12 cable / 2 m PVC cable
-
Repeat accuracy:
-
1%
Products Description
|
Product model
|
UBX30-GM1840-D4-H4
|
UBX50-GM1875-D4-H5
|
UBX30-GM1840-DI-H4
|
UBX50-GM1875-DI-H5
|
|||
|
|
UBX30-GM1840-D5-H4
|
UBX50-GM1875-D5-H5
|
UBX30-GM1840-DU-H4
|
UBX50-GM1875-DU-H5
|
|||
|
Detection range
|
50. 300mm
|
50...500mm
|
50. 300mm
|
50...500mm
|
|||
|
Non-detection
zone |
0...50
|
0mm ..50mm
|
0...50mm
|
0mm ..50mm
|
|||
|
Transducer frequency
|
About 390KHz
|
About 380KHz
|
About 390KHz
|
About 380KHz
|
|||
|
response time
|
About 30ms
|
About 50ms
|
About 50ms
|
About 50ms
|
|||
|
switching frequency
|
≤ 13Hz
|
≤ 13Hz
|
≤ 13Hz
|
≤ 4Hz
|
|||
|
type of output
|
D4: NPN NO/NC D5：PNP NO/NC
|
|
|
|
|||
|
|
DI:4-20mA NO/NC DU: 0-10V NO/NC
|
|
|
|
|||
|
working voltage
|
10-30V DC ripple 10%
|
|
|
|
|||
|
Rated working current
|
200mA Passage/overload protection
|
|
2 x 100 mA , short-circuit/overload protected
|
|
|||
|
repeatability
|
≤ 1%
|
|
|
|
|||
|
Range adjustment
|
Adjust the farthest and nearest range through the adjusting line
|
|
|
|
|||
|
Degree of
protection |
IP65
|
|
|
|
|||
|
Connection mode
|
H4 (4-pin) M12 connecting wire/2m PVC cable
|
|
|
|
|||
|
LED yellow light
|
The yellow light of the switch status indicator flashes. The target is detected under the set status
|
|
|
|
|||
|
LED red light
|
The red light is always on: error
Red light flashing: no target is detected in the set state |
|
|
|
|||
