Features:
1.Fireproof, anti-static design
2.Stem explosion-proof device
3.The ball is designed with a pressure balance hole
4.Double-layer stem packing and disc-type shrapnel device.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
AFK
-
Standard or Nonstandard:
-
Standard
-
Valve type:
-
2 way
-
Material:
-
Stainless steel 304,316, 316L
-
Certification:
-
CE
Quick Details
-
Port Size:
-
4 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Q911F
-
Brand Name:
-
AFK
-
Standard or Nonstandard:
-
Standard
-
Valve type:
-
2 way
-
Material:
-
Stainless steel 304,316, 316L
-
Certification:
-
CE
Product Description
|
Product
|
Q911F 3-piece electric ball valve
|
|
Material
|
SS316 , SS304 or 316L
|
|
Pressure
|
10-16 Bar
|
|
Connection
|
Thread
|
|
Seal
|
FTFE, PPL, Metal Seal
|
|
Environmental Temperature
|
-30℃ ~60℃
|
|
Applicable Media
|
Water, oil, Acids, viscous fluids etc
|
|
Warranty
|
1 year
|
Q911F electric thread ball valve and butt welding ball valve body with the introduction of Taiwan's advanced technology, reasonable structure, handsome in appearance; valve seat with flexible sealing structure, sealed and reliable, easy opening and closing; stem with inverted seal structure, the valve chamber abnormal boost, the stem will not be washed out.
Two-piece, three-piece ball valve connection with another welding (BW) socket welding (SW), and can bring the international standard ISO platform and locking device. Three-piece ball valve small size, composed of three parts of the shell, through the four long bolts from both ends of the middle of the valve body and valve ball. The advantage is that maintenance of the demolition without the need to remove the pipe thread, the direct removal of four bolts, the middle part of the valve body can be removed.
Applicable to light industrial machinery small and narrow space, with particles, fiber properties of the occasion. Electric wire mouth ball valve is widely used in food, environmental protection, light industry, petroleum, paper, chemical , teaching and research equipment, electricity and other industries in the inductrial automatic control system.
Detailed Image

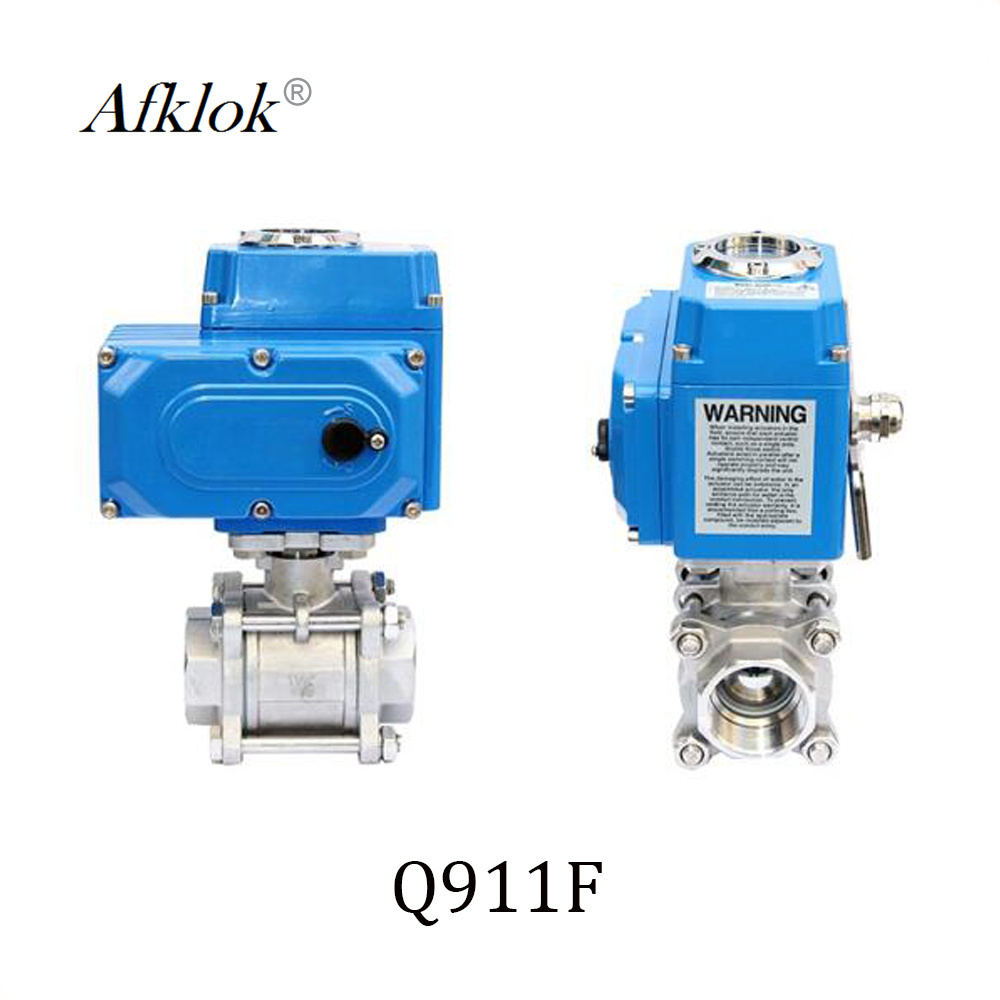

Q911F 3-piece electric ball valve
Ordering Instruction
1.Voltage: DC24V, DC220V, AC110V, AC380V
2.Medium type, temperature, pressure
3.Control type: on-off type, Passive contact type, Valve position signal feedback type, Intelligent adjustment type.
4.Intelligent adjustment type: Input signal 4-20mA, 1-5V, 0-10V, Output signal:4-20mA, 1-5V, 10-10V
Specification
|
SDV sereies actuator specification
|
|
Q911F Electric 3-piece Ball Valve
|
|
||
|
Power
|
AC110, 220, 380V/DC24, 220V
|
DN
|
DN15-100mm
|
||
|
Torque
|
50N·M~2000N·M
|
PN
|
PN1.6, 2.5, 4.0, 6.4Mpa
|
||
|
Optional
|
On-off type, switch signal type, Intelligent type
|
Valve shaft
|
Stainless steel
|
||
|
Actuation Range
|
0~90℃±5°℃
|
The Material of body
|
WCB, SS304/316/316L
|
||
|
Actuation time
|
15s/30s/60s
|
The Material of valve body
|
SS304/316/316L
|
||
|
Environmental Temperature
|
-30℃~60℃
|
The Material of sealing and seat
|
PTFE, PPL, Metal Seal
|
||
|
Manual operation
|
Attached handle operation
|
Temperature
|
PTFE=180℃, PPL=300℃
|
||
|
Limited
|
Electrical and mechanical double linit
|
Structure type
|
3-piece, BW, SW
|
||
|
IP
|
IP-67(Explosion-proof enclosure: Exd Ⅱ BT4 IP67 optional)
|
Applicable medium
|
Water, oil, Acids, viscous fluids etc
|
||
|
Input signal
|
0-10, 1-5VDC/4-20mA(Intelligent type)
|
Feature
|
Compact structure, small size, large circulation capacity
|
||
