Quick Details
-
Size:
-
12400X2500X3650mm
-
Place of Origin:
-
SHANDONG
-
Usage:
-
Truck trailer
-
Color:
-
Customer's Request
-
Landing Gear:
-
SAF two speed 28t Heavy Duty Landing Gear
-
Suspension:
-
Mechanical Suspension
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST or other brand
-
Axle:
-
13/16 Ton, 3 axles FUWA
-
Tire:
-
12.00R22.5(Brand optional)
-
Brake System:
-
Wabco re 6 relay valve T30/30 spring brake chamber 3 X 40L air tanks
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
42.5ton
-
Brand Name:
-
YUNSHENG
-
Size:
-
12400X2500X3650mm
-
Place of Origin:
-
SHANDONG
-
Usage:
-
Truck trailer
-
Color:
-
Customer's Request
-
Landing Gear:
-
SAF two speed 28t Heavy Duty Landing Gear
-
Suspension:
-
Mechanical Suspension
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST or other brand
-
Axle:
-
13/16 Ton, 3 axles FUWA
-
Tire:
-
12.00R22.5(Brand optional)
-
Brake System:
-
Wabco re 6 relay valve T30/30 spring brake chamber 3 X 40L air tanks
Products Description

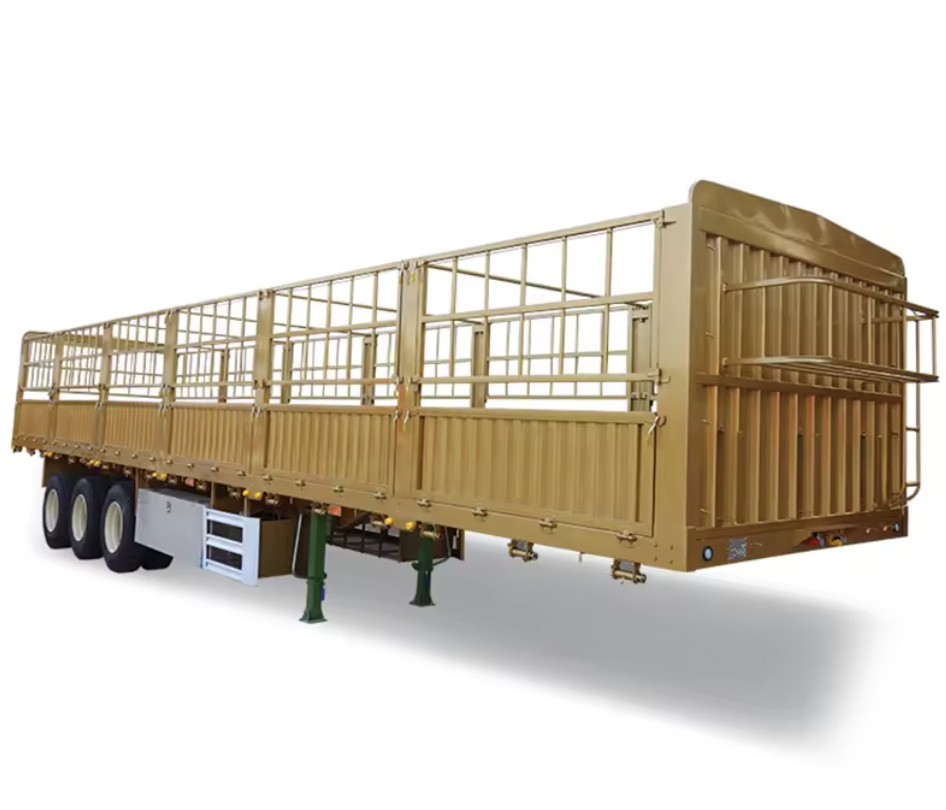

3 Axle Fence Semi Trailer
Fence semi trailer generally less expensive compared to other specialized trailers, making them a cost-effective option for businesses that require flexibility in cargo transportation..
Specification
|
Products Name
|
Wosheng 3 Axle Fence Steel Stake Semi Trailer
|
|
Max Payload
|
42.5 ton
|
|
Size
|
12400X2500X3650mm
|
|
Tare weight
|
7500kg
|
|
Color
|
According to customer's requirment
|
|
Axle
|
3 axles 13ton FUWA
|
|
Suspension
|
Mechanical Suspension
|
|
Wheel
|
6780X1310X1310
|
|
King Pin
|
2"(50mm)or3.5"(90mm)
|
|
Landing gear
|
SAF two speed 28t Heavy Duty Landing Gear
|
|
leaf spring
|
90(w)mm*13(thickness)mm*10(layer)
|
|
platform plate
|
3mm
|
|
logo
|
According to customer's requirment
|
|
Application
|
Coal/ Livestock/Vegetable/Cargo Loading
|
|
SIZE
|
12400X2500X3650mm
|
|
Payload
|
42.5 ton
|
|
Main beam
|
Height: 500mm
upper plate is 14mm middle plate is 8mm down plate is 16mm Q345B Steel |
|
Axles
|
3 axles 13ton FUWA
|
|
side wall height
|
600-1700mm(can be customized)
|
|
side beam
|
16mm channel steel(material is Q235B steel)
|
|
Bottom Platform
|
3mm steel plate
|
|
Suspension
|
Mechanical Suspension
|
|
leaf spring
|
90(w)mm*13(thickness)mm*10(layer)
|
|
tire
|
12.00R22.5 Trangle or other brand
|
|
Rim
|
9.0-22.5
|
|
Kin pin
|
2"(50mm)or3.5"(90mm)
|
|
Landing gear
|
SAF two speed 28t Heavy Duty Landing Gear
|
|
Braking system
|
Wabco re 6 relay valve; T30/30+T30 spring brake chamber; three units of 40L air tanks
|
|
Electrical SYSTEM
|
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector etc.) |
|
Spare Wheel Bracket
|
1 piece of Spare Wheel Bracket
|
|
Accessory
|
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
|
|
Packaging and delivery
|
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China
port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
|
remarks
|
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
|
Details Images
TWIST LOCK
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Landing Gear
The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle
Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Brake System
T30/30 Spring brake chamber. WABCO valve,
ABS/EBS system optional. dual line brake pipe.
