Quick Details
-
Worktable Length:
-
5600 MM
-
Worktable Width:
-
2100 MM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Uniliner
-
Model Number:
-
UL-288L
-
Warranty:
-
12 Months
-
Max Push Power for Pulling Tower:
-
95 KN
-
Rated Voltage:
-
220/380 V
-
Working Range of Pulling Tower:
-
360 Degree
-
Max Load Bearing:
-
3500 KG
-
Color:
-
Blue+yellow
-
Certification:
-
CE / ISO-9001
-
Company history:
-
13 Years Producing Experience
-
Delivery Time:
-
30 Days
-
Payment:
-
50% deposit
Quick Details
-
Weight:
-
2100 KG
-
Bench Height:
-
520MM
-
Max. Lifting Capacity:
-
3500Kg
-
Worktable Length:
-
5600 MM
-
Worktable Width:
-
2100 MM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Uniliner
-
Model Number:
-
UL-288L
-
Warranty:
-
12 Months
-
Max Push Power for Pulling Tower:
-
95 KN
-
Rated Voltage:
-
220/380 V
-
Working Range of Pulling Tower:
-
360 Degree
-
Max Load Bearing:
-
3500 KG
-
Color:
-
Blue+yellow
-
Certification:
-
CE / ISO-9001
-
Company history:
-
13 Years Producing Experience
-
Delivery Time:
-
30 Days
-
Payment:
-
50% deposit
Products Description

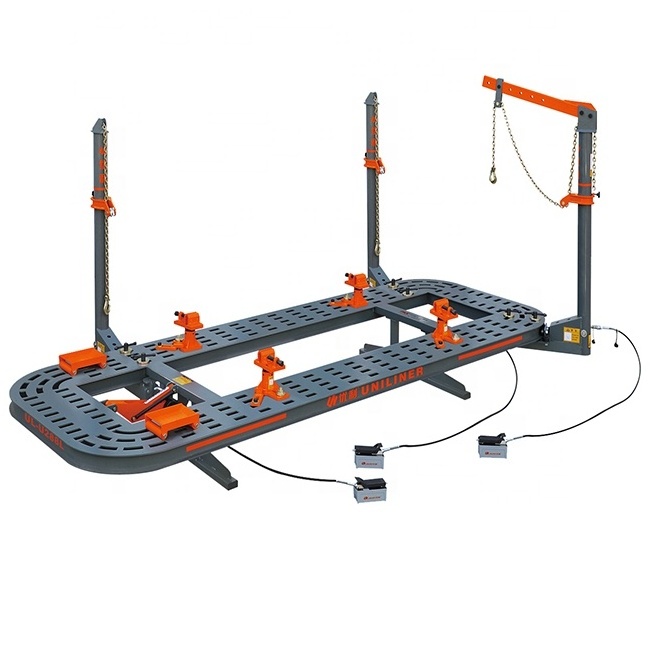

UL-U288, working platform made of fate plate and square holes steels is designed professionally for body collision repair by choosing better material, improving welding technique and enhancing stress intensity to make the repairing work more precise and faster. One of important features is no-blind working range, which is in accord with the technician's habit to make more convenient operation. It can be widely used for nearly all kinds of imported cars, commercial vehicles and SUVs collision repair.
|
FRAME LENGTH 5600MM
|
|
FRAME WIDTH 2100MM
|
|
FRAME LENGTH 520MM
|
|
MAX PUSH POWER FOR PULLING TOWER 100KN
|
|
AIR SUPPLY REQUIRED 0.8MPA
|
|
WORKING RANGE OF PULLING TOWER 360°
|
|
MAX LOAD BEARING 3500KG
|
Detailed Images
The main clamp
Tiger main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient.
Hydraulic cylinder
Tilt hydraulic lifting platform makes the accidental vehicle loaded and unloaded more conveniently (even drive the car onto the platform directly).
The pulling tower
Towers can be rotated 360 degrees along the platform and be made of 10mm seamless steel pipe, which means more convenient moving and high intensity if both towers straighten in diagonal line.
Platform
Platform is made of high-quality manganese steel, procedures including CNC plasma cutting, CO2 welding (Panasonic), polishing (shot blasting cleaning machine) and power coating ensure the platform with high flatness, strong anti-torsion strength, no-blind fixing ways and efficient straightening.
