Quick Details
-
Brand Name:
-
Royaland
-
Model Number:
-
SME302015
-
External Size:
-
30*20*15
-
Product name:
-

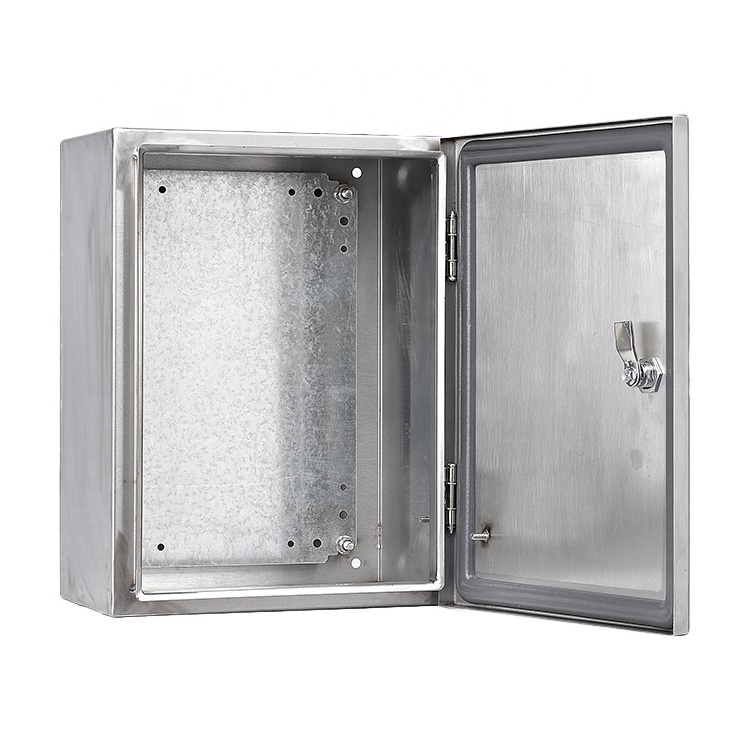

Stainless Steel Enclosure
-
Product number:
-
SME302015
-
Size(cm):
-
30*20*15
-
Material:
-
AISI304 or AISI316 stainless steel
-
Colour:
-
RAL7035 or RAL7032
-
Package:
-
Paper Carton
-
Delivery time:
-
30 Days
-
Customization:
-
Accept Enclosure Customized
-
Application:
-
installation in commercial and light industrial premises
-
Usage:
-
accommodate various types of switchgear and controlgear assemblies
Quick Details
-
Protection Level:
-
IP66
-
Type:
-
DISTRIBUTION BOX
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Royaland
-
Model Number:
-
SME302015
-
External Size:
-
30*20*15
-
Product name:
-
Stainless Steel Enclosure
-
Product number:
-
SME302015
-
Size(cm):
-
30*20*15
-
Material:
-
AISI304 or AISI316 stainless steel
-
Colour:
-
RAL7035 or RAL7032
-
Package:
-
Paper Carton
-
Delivery time:
-
30 Days
-
Customization:
-
Accept Enclosure Customized
-
Application:
-
installation in commercial and light industrial premises
-
Usage:
-
accommodate various types of switchgear and controlgear assemblies
Product Description
Applications:
Metal Enclosures are designed to install various electrical components and switchgear in commercial and light industrial premises.
Specifications:
* Made of cold roll steel sheet of thickness 1.2mm -2.0mm
* Textrured epoxy polyester powder coating in RAL7035 or RAL7032
* Mounting plate made of galvanized steel or plain steel painted in RAL2004 smooth finish
* Polyurethane gasket
* Degree of protection up to IP66
* Complies with IEC 60529 standard
* External mechanical impact resistance up to IK10
Metal Enclosures are designed to install various electrical components and switchgear in commercial and light industrial premises.
Specifications:
* Made of cold roll steel sheet of thickness 1.2mm -2.0mm
* Textrured epoxy polyester powder coating in RAL7035 or RAL7032
* Mounting plate made of galvanized steel or plain steel painted in RAL2004 smooth finish
* Polyurethane gasket
* Degree of protection up to IP66
* Complies with IEC 60529 standard
* External mechanical impact resistance up to IK10
|
Product Range
|
|
|
|
|
||||
|
Model
|
H
|
W
|
D
|
No.of lock
|
||||
|
SME252015
|
250
|
200
|
150
|
1
|
||||
|
SME302015
|
300
|
200
|
150
|
1
|
||||
|
SME302515
|
300
|
250
|
150
|
1
|
||||
|
SME302520
|
300
|
250
|
200
|
1
|
||||
|
SME303020
|
300
|
300
|
200
|
1
|
||||
|
SME303030
|
300
|
300
|
300
|
1
|
||||
|
SME403015
|
400
|
300
|
150
|
1
|
||||
|
SME403020
|
400
|
300
|
200
|
1
|
||||
|
SME404015
|
400
|
400
|
150
|
1
|
||||
|
SME404020
|
400
|
400
|
200
|
1
|
||||
|
SME503020
|
500
|
300
|
200
|
1
|
||||
|
SME504015
|
500
|
400
|
150
|
1
|
||||
|
SME504020
|
500
|
400
|
200
|
1
|
||||
|
SME505020
|
500
|
500
|
200
|
2
|
||||
|
SME604020
|
600
|
400
|
200
|
2
|
||||
|
SME605020
|
600
|
500
|
200
|
2
|
||||
|
SME605025
|
600
|
500
|
250
|
2
|
||||
|
SME606020
|
600
|
600
|
200
|
2
|
||||
|
SME606025
|
600
|
600
|
250
|
2
|
||||
|
SME606030
|
600
|
600
|
300
|
2
|
||||
|
SME705020
|
700
|
500
|
200
|
2
|
||||
|
SME705025
|
700
|
500
|
250
|
2
|
||||
|
SME806020
|
800
|
600
|
200
|
2
|
||||
|
SME806025
|
800
|
600
|
250
|
2
|
||||
|
SME806030
|
800
|
600
|
300
|
2
|
||||
|
SME1006025
|
1000
|
600
|
250
|
2
|
||||
|
SME1006030
|
1000
|
600
|
300
|
2
|
||||
|
SME1008020
|
1000
|
800
|
200
|
2
|
||||
|
SME1008025
|
1000
|
800
|
250
|
2
|
||||
|
SME1008030
|
1000
|
800
|
300
|
2
|
||||
|
SME1206025
|
1200
|
600
|
250
|
3
|
||||
|
SME1206030
|
1200
|
600
|
300
|
3
|
||||
|
SME1208025
|
1200
|
800
|
250
|
3
|
||||
