Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
RP27 Push Band switch
-
Certification:
-
ISO14001/ISO9001
-
Service:
-
One-stop servie
-
Operating temperature:
-
-40℃~ 85℃
-
Number of positions:
-
10
-
Rotational life:
-
30,000 cycles Min
Quick Details
-
Brand Name:
-
Soundwell
-
Model Number:
-
RP27
-
Type:
-
switch push button
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
RP27 Push Band switch
-
Certification:
-
ISO14001/ISO9001
-
Service:
-
One-stop servie
-
Operating temperature:
-
-40℃~ 85℃
-
Number of positions:
-
10
-
Rotational life:
-
30,000 cycles Min
|
Rotary Switch Model
|
RP27 series
|
|
Number of positions
|
10
|
|
Rotational life
|
30,000 cycles Min
|
|
Working temperature
|
-40℃~ 85℃
|
|
Contact resistance
|
100mΩ Max
|
|
|
|

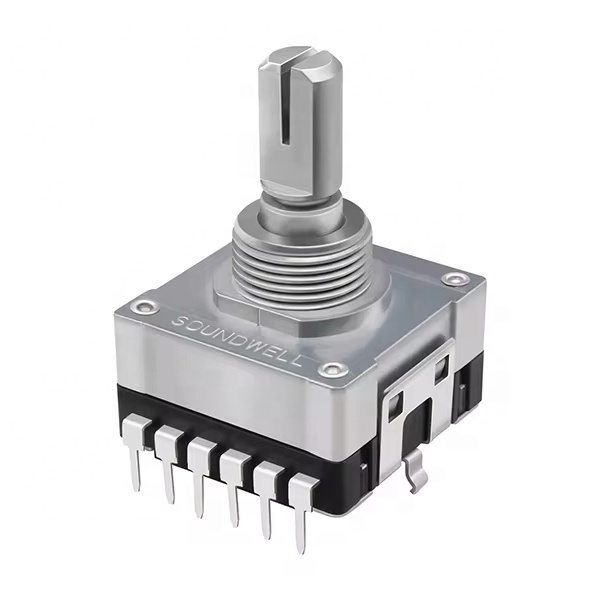

RP27 Rotary Switch
Main Specifications
|
Dimensions
|
27mm*27mm
|
|
|
|
|||
|
Rated power
|
DC 30V 0.3A
|
|
|
|
|||
|
Rotational Torque
|
400-600 gf.cm
|
|
|
|
|||
|
Contact resistance
|
100mΩ Max
|
|
|
|
|||
|
Number of positions
|
10
|
|
|
|
|||
|
Operating temperature
|
-40℃~ 85℃
|
|
|
|
|||
|
Rotational life
|
30,000 cycles Min
|
|
|
|
|||
|
Applications
|
Gas stoves, microwave ovens, multimedia audio/amplifiers and other household appliances;
|
|
|
|
|||
|
Product features
|
Metal shaft design with clear sense of click;
Good sealing and high reliability |
|
|
|
|||
|
Functions
|
Mainly used for function switching, speed control and temperature adjustment.
|
|
|
|
|||

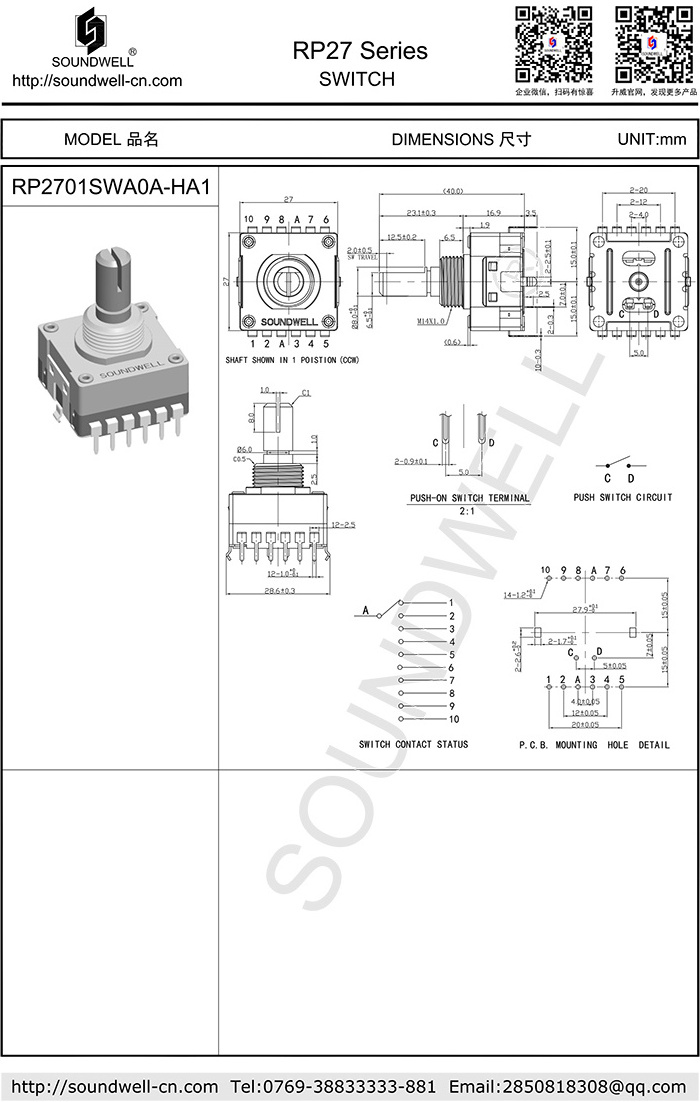

RP27
Rotary Switch
Specifications
1. Rotational Torque: 400~600gf.cm 2. Step angle: 36°±3° 3. Number of detent: 10
Two、ELECTRICAL CHARACTERISTIC
Three、ENDURANCE CHARACTERISTIC
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
