Quick Details
-
Dimension(L*W*H):
-
3240*1610*1810
-
Weight:
-
180kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
No overseas service provided
-
Model:
-
pro208
-
Engine:
-
D902-E3-CKMS1
-
No. of cylinders:
-
4
-
Overall length:
-
3240mm
-
Overall width:
-
1610mm
-
Overall height:
-
1810mm
-
Grain Tank Capacity (L):
-
898[0.898]
-
Used for:
-
farm
-
row:
-
2
-
Harvesting width(mm):
-
1050
-
Application:
-
Farm
Quick Details
-
Model Number:
-
PRO208
-
Place of Origin:
-
China
-
Brand Name:
-
kubota
-
Dimension(L*W*H):
-
3240*1610*1810
-
Weight:
-
180kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
No overseas service provided
-
Model:
-
pro208
-
Engine:
-
D902-E3-CKMS1
-
No. of cylinders:
-
4
-
Overall length:
-
3240mm
-
Overall width:
-
1610mm
-
Overall height:
-
1810mm
-
Grain Tank Capacity (L):
-
898[0.898]
-
Used for:
-
farm
-
row:
-
2
-
Harvesting width(mm):
-
1050
-
Application:
-
Farm

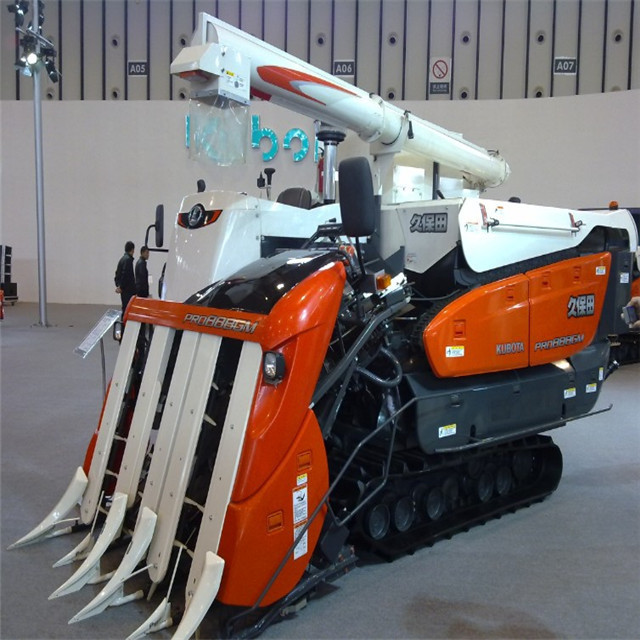

CHINA KUBOTA PRO208 COMBINE HARVESTER, MINI COMBINE HARVESTER PRO208, KUBOTA RICE HARVESTER PRO208 :
| KUBOTA HARVESTER 4LBZ-105(PRO208) | ||||
| Dimension | Overall length(mm) | 3240 | ||
| Overall width(mm) | 1610 | |||
| Overall height(mm) | 1810 | |||
| Engine | Model | D902-E3-CKMS1 | ||
| Pattern | Vertical water-cooled 3 cylinder 4 troke diesel engine | |||
| Cylinder capacity ([cc]L) | 898[0.898] | |||
| rated output/speed(ps[kw]/rpm) | 19.9[14.6]/2900 | |||
| Burnt oil | 0#diesel | |||
| Travel unit | track | width*contact length(mm) | 400x1190 | |
| Centre distance | 810 | |||
| Average ground pressure(kpa[kgf]/cm2) | 0.1 | |||
| transmission mode | Mechanical variable speed+hydraulic stepless variable speed | |||
| Speed grade | Stepless (HST) | |||
| Running speed | Advance (m/s) | ]standard:0~0.8 walking :0~1.20 | ||
| Back off (m/s) | ||||
| turning way | Brake change | |||
| Harvest unit | row | 2 | ||
| Harvesting width(mm) | 1050 | |||
| Harvest height(mm) | 650~1300 | |||
| Lodging adaptive(degree) | manual | |||
| Threshing unit | Threshing system | Axial flow type threshing gear | ||
| Threshing cylinder | Diameter*width(mm) | 390*600 | ||
| Rotational speed(rpm) | 524 | |||
| cereal discharge unit | cereal collection tank | capacity(L) | 130 | |
| cereal ejection port number(L) | 130(2.6bag) | |||
| Ejection method | In bag | |||
| Suitable crops | Rice wheat rape | |||
| Operational efficiency (A unit of area/ hour) | 1.2-2.7 | |||
TRADE ITEM:
| MOQ | 1 UNIT | |||
| Delivery Time | 2 weeks from the date of signing the contract and receiving advance payment. | |||
| Payment Item | T/T for 30% advance payment and 70% balance payment before shipment | |||
| Container loading | 3 sets in a 40' container | |||
| Terms of Shipment | FOB | |||
| Port of Shipment | Main Port, Thailand | |||
| Date of Shipment | To be discussed later | |||
| remark | 2. Some terms may be amended according to your demand! | |||
| 3.If quantity large, we can talk about price again and give you some discount. | ||||
| 4. We will be very appreciated if you can confirm our quotation and sign it back once you have. | ||||
ADVANTAGES:
1.With the help of Synchro-Shuttle system located under the steering for ease of operation, KUBOTA L Special
tractor can be switched between forward and reverse without stopping. These features make gear shifting
easier, smooth operation and powerful agility.
2.KUBOTA L Special tractor has a great balance between weight, ground clearance and horse power which help you to work in any puddle or cross ridges.
3.With 8 forward, 8 reverse speeds and the proper set speed for each gear, KUBOTA L Special tractor s speed can be chosen to suit with various implements.
4.Two selectable PTO gear speeds; 540 and 750 rpm*, allow you to choose the right speed to suit various working conditions, including soil pulverization by rotary and atomized spraying by boom sprayer.
