Quick Details
-
Brand Name:
-
ESINO
-
Model Number:
-
ES-GP34
-
Type::
-
Gps Tracker, Vehicle Gps Tracker
-
Function::
-
gps car tracker
-
Use::
-
Hand Held
-
Battery::
-
rechargeable 180mAh
-
SIM card type::
-
GSM Sim Card
-
Network::
-
GSM/GPRS
-
Color::
-
Black,White
-
GPS accuracy::
-
5 Meters
-
Host size::
-
133x77x64mm
-
Host weight::
-
0.23kg
Quick Details
-
Positioning Mode:
-
GPS, LBS, Real-Time Positioning
-
Function:
-
street view, Over-Speed Warning, Geofence
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESINO
-
Model Number:
-
ES-GP34
-
Type::
-
Gps Tracker, Vehicle Gps Tracker
-
Function::
-
gps car tracker
-
Use::
-
Hand Held
-
Battery::
-
rechargeable 180mAh
-
SIM card type::
-
GSM Sim Card
-
Network::
-
GSM/GPRS
-
Color::
-
Black,White
-
GPS accuracy::
-
5 Meters
-
Host size::
-
133x77x64mm
-
Host weight::
-
0.23kg

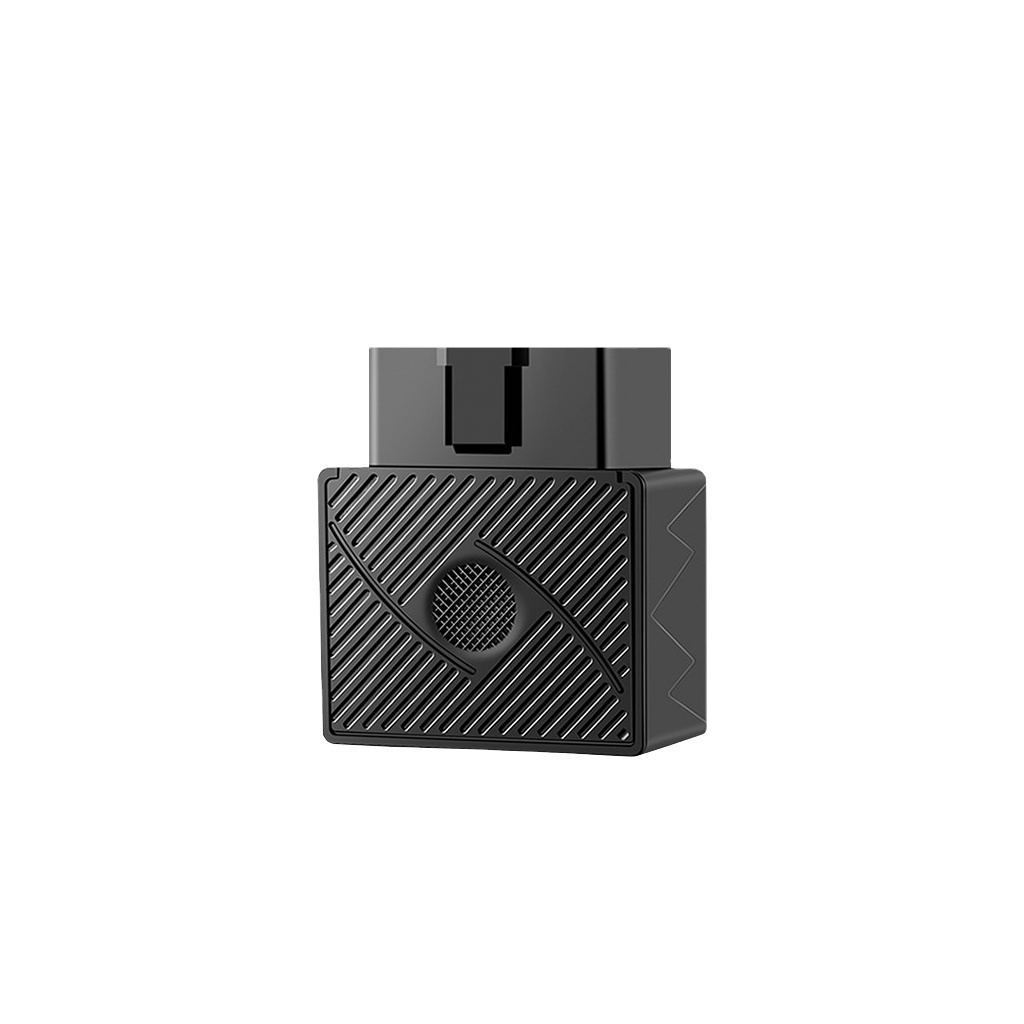

GPS OBD vehicle speed limiter and Truck speed limiter tracker
|
Mechanical |
Size |
62mm(L) x 50mm(W) x 25mm(H) |
|
Weight |
51g |
|
|
Interface |
OBD Port: Support A/B type 16 pin standard OBDII port. Configuration interface: Mini-USB SOS button interface: MMCX SIM card interface: Push-Push Type |
|
|
Supported Vehicle Protocols |
Passenger vehicle:ISO15031, JOBD, EOBD, OBDII HD vehicle:J1939,J1708, HD-JOBD. |
|
|
Power |
Working Voltage |
8-32VDC |
|
Working Current |
Max:<120mA 13.8DC <80mA 27.6VDC Sleep:<10mA 12/24VDC |
|
|
Backup battery |
3.7V/150mAH |
|
|
Position |
GPS,QZSS,GLONASS, Galileow, A-GPS (Multi-choices) |
|
|
GPS |
Receiver Channels:56 Reacquisition Sensitivity:-160dBm Position accuracy:2.5m CEP Cold Start:30s Hot Start :1s |
|
|
GLONASS |
Receiver Channels:56 Reacquisition Sensitivity:-156dBm Position Accuracy:4.0m CEP Cold Start:32s Hot Start:1s |
|
|
Data Transmission |
TCP/SMS |
|
|
WCDMA |
Frequency: HSPA 800/850/900/1700/1900/2100 MHz, Quad-bands GPRS/EDGE(quad band GPRS/EDGE) Network protocol: Embedded TCP/IP stack Certification:GCF,PTCRB,R&TTE,CE,FCC,IC |
|
|
3 axis Accelerometer |
+/-16g |
|
|
Flash storage |
8M BYTE FLASH |
|
|
LED Indication |
2G/GPS /OBD indication |
|
|
Antenna |
2G |
Internal |
|
GPS |
Internal |
|
