Quick Details
-
Tube Length(ft):
-
2, 3, 4
-
Color Temperature(CCT):
-
3000-6500K
-
Lifespan (hours):
-
54000
-
Working Time (hours):
-
54000
-
Product Weight（kg）:
-
0.4
-
Input Voltage(V):
-
AC100-240V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 48
-
Working Lifetime(Hour):
-
70000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Strong Lumen
-
Product Name:
-
T8 LED TUBE
-
Cover:
-
Clear Cover /Frosted Cover
-
Efficacy:
-
Milky Cover:160lm/w , Clear Cover: 170lm/w
-
Chip type:
-
SMD 2835
-
Color index:
-
Ra>80
-
Power factor:
-
PF>0.9
-
End cap:
-
G13 + metal ring (rotatable cap with lock available)*
-
Color:
-
W:5800-6400K, L:3800-4300K, N:2800-3300K
-
Beam angle:
-
Clear cover:120°; Frosted Cover:140°
-
Warranty:
-
5 years
Quick Details
-
Warranty(Years):
-
5
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Body Material:
-
Aluminum
-
Tube Length(ft):
-
2, 3, 4
-
Color Temperature(CCT):
-
3000-6500K
-
Lifespan (hours):
-
54000
-
Working Time (hours):
-
54000
-
Product Weight（kg）:
-
0.4
-
Input Voltage(V):
-
AC100-240V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 48
-
Working Lifetime(Hour):
-
70000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Strong Lumen
-
Product Name:
-
T8 LED TUBE
-
Cover:
-
Clear Cover /Frosted Cover
-
Efficacy:
-
Milky Cover:160lm/w , Clear Cover: 170lm/w
-
Chip type:
-
SMD 2835
-
Color index:
-
Ra>80
-
Power factor:
-
PF>0.9
-
End cap:
-
G13 + metal ring (rotatable cap with lock available)*
-
Color:
-
W:5800-6400K, L:3800-4300K, N:2800-3300K
-
Beam angle:
-
Clear cover:120°; Frosted Cover:140°
-
Warranty:
-
5 years
1.2m t8 36w fluorescent lamp
Specification
| ype | T8 LED TUBE |
| Voltage | AC100-240V/(AC100-277V available) |
| Chip type | LED2835 Epistar |
| Efficacy | Milky Cover:160lm/w , Clear Cover: 170lm/w |
| Color index | >80 (>90,85 are available) |
| Power factor | PF>0.9 |
| Cover | Frosted or clear |

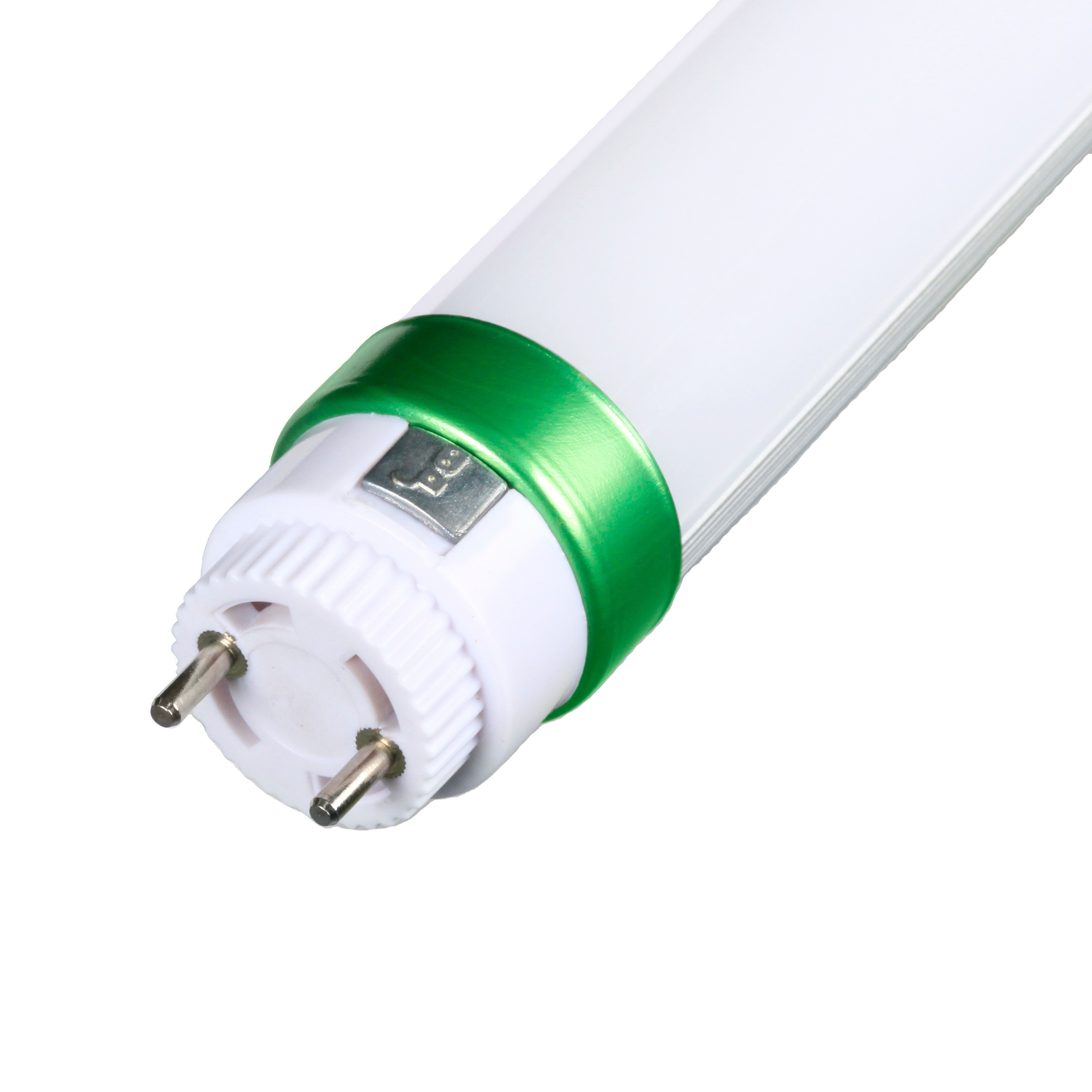

| End cap | G13 + metal ring (rotatable end cap available) |
| Color | W:5800-6400K, L:3800-4300K, N:2800-3300K |
| Material | Aluminum body+PC Lens |
| LED current | 40mA |
| Beam angle | Clear cover:120°; Frosted Cover:140° |
| Warranty | 5 years |
Display
Why choose our T8 LED tube
Photometric Data
I nstallation for single LED tube
| T8 Fluorescent light | T8 LED Tube Light | ||||
| Length | Power(W) | Actual Lumen | Efficacy | Power | Power saving rate |
| 600mm | 18 | 945 | 110lm/w | 10 | 44% |
| 130lm/w | 8 | 56% | |||
| 160lm/w | 6 | 67% | |||
| 175lm/w | 6 | 67% | |||
| 900mm | 30 | 1680 | 110lm/w | 14 | 53% |
| 130lm/w | 12 | 60% | |||
| 160lm/w | 10/12 | 67% | |||
| 175lm/w | 9 | 70% | |||
| 1200mm | 36 | 2170 | 110lm/w | 20 | 44% |
| 130lm/w | 16 | 56% | |||
| 160lm/w | 12 | 67% | |||
| 175lm/w | 10 | 72% | |||
| 1500mm | 58 | 3570 | 110lm/w | 30 | 48% |
| 130lm/w | 25 | 57% | |||
| 160lm/w | 22 | 62% | |||
| 175lm/w | 20 | 62% | |||
Test report
Certificates
Application
1. Commercial Complexes and other Public facilities
2. Schools, Colleges, Universities
3. Places where need energy saving and high color rendering index lighting
4. High maintenance or temperature sensitive environments
Our clients:
Sylvania SONY, EPSON, IKEA,
and many retailers....
Our cases:
Madrid Subway, PLA Airport,
Daily Price Store.....
company Porfile
1. Top leading professional LED lighting manufacturer in China. focus on high quality, welcome to test our products for any details.
2. Strong R&D department . owner of several Patents of LED lighting tubes.
3. Production site over 1 0,000m2 , monthly output 300,000pieces
Show of Factory
Our team: we are here, ready to serve you!
