Quick Details
-
Power:
-
2.2kw, electrical ,manual or diesel
-
Min. Lifting Height:
-
4m
-
Table Size:
-
900L*700W*1100Hmm
-
Overall Dimensions:
-
5400*1600*1900mm
-
Weight:
-
1800 kg
-
Product name:
-

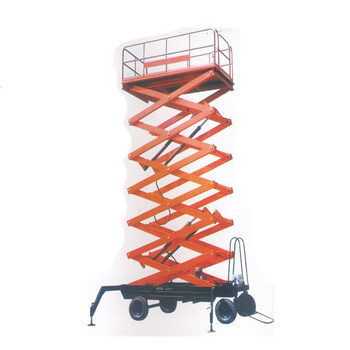

500 kg scissor lift platform
-
Certification::
-
CE / ISO 9001
-
Lift Drive / Actuation::
-
Hydraulic
-
Warranty::
-
24Months
-
Safety Function::
-
Emergency Stop/Emergency Decline
-
Color:
-
As your request
-
Application:
-
Aerial Construction Work
-
Feature:
-
Easy Operation Safety Convenience
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DOWELL
-
Power:
-
2.2kw, electrical ,manual or diesel
-
Min. Lifting Height:
-
4m
-
Table Size:
-
900L*700W*1100Hmm
-
Overall Dimensions:
-
5400*1600*1900mm
-
Weight:
-
1800 kg
-
Product name:
-
500 kg scissor lift platform
-
Certification::
-
CE / ISO 9001
-
Lift Drive / Actuation::
-
Hydraulic
-
Warranty::
-
24Months
-
Safety Function::
-
Emergency Stop/Emergency Decline
-
Color:
-
As your request
-
Application:
-
Aerial Construction Work
-
Feature:
-
Easy Operation Safety Convenience
Products Description
Product Paramenters
|
Specification
|
Height (m)
|
Capacity (kgs)
|
Size table(mm)
|
Overall dimension(mm)
|
Power(Kw)
|
Weight (kgs)
|
|
QYCY0.5-4
|
4
|
500
|
2100*830
|
2250*950*1100
|
1.5
|
800
|
|
QYCY0.5-6
|
6
|
500
|
2100*830
|
2250*950*1100
|
1.5
|
880
|
|
QYCY0.5-8
|
8
|
500
|
2100*930
|
2250*1060*1380
|
1.5
|
1050
|
|
QYCY0.5-10
|
10
|
500
|
2100*1230
|
2040*1580*1650
|
2.2
|
1360
|
|
QYCY0.5-12
|
12
|
500
|
2550*1530
|
2796*1670*1750
|
2.2
|
2260
|
|
QYCY0.5-14
|
14
|
500
|
2812*1530
|
3067*1730*1810
|
2.2
|
2486
|
|
QYCY0.5-16
|
16
|
500
|
2812*1600
|
3067*1810*2080
|
3
|
3063
|
|
QYCY0.5-18
|
18
|
500
|
3070*1600
|
3067*1810*2080
|
2.2
|
3900
|
|
QYCY1.0-10
|
10
|
1000
|
2100*1200
|
2250*1350*1420
|
3
|
1700
|
|
QYCY2.0-12
|
10
|
2000
|
2100*1530
|
2250*1750*1850
|
3
|
1250
|
* The specific weight of this product shall be subject to the actual negotiation.
*
Safety Device
Safety Interlock: Lock the platform when it is out of control
Safety Sensor:
The operation must be stopped immediately the safety
edge meets obstacles during operation.
edge meets obstacles during operation.
Emergency lowering:
The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
hydraulic valve manually or rolling screw rod.
*
Emergency Stop
The lifting and lowering process can be stopped immediately by pressing the emergency button.
Details Images
Application
Our Advantages
Product packaging
1.Strong and powerful rubber tracks are used with track width and height adjustable.
2.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
