Quick Details
-
Feeding side:
-
two
-
Application:
-
Eps Foam Block
-
suitable for material:
-
foam,plastic,EPE,eva foam,etc.
-
Columns:
-
Four
-
Stroke:
-
50-240mm
-
Cutting area:
-
610X1600mm
-
Cutting force:
-
30 tons
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Processing Type:
-
Foaming Machine
-
vacuum or hydraulic:
-
hydraulic oil
-
Feeding side:
-
two
-
Application:
-
Eps Foam Block
-
suitable for material:
-
foam,plastic,EPE,eva foam,etc.
-
Columns:
-
Four
-
Stroke:
-
50-240mm
-
Cutting area:
-
610X1600mm
-
Cutting force:
-
30 tons
vertical hydraulic polyurethane foam cutting machine
What application of our foam cutting machine?
1.application

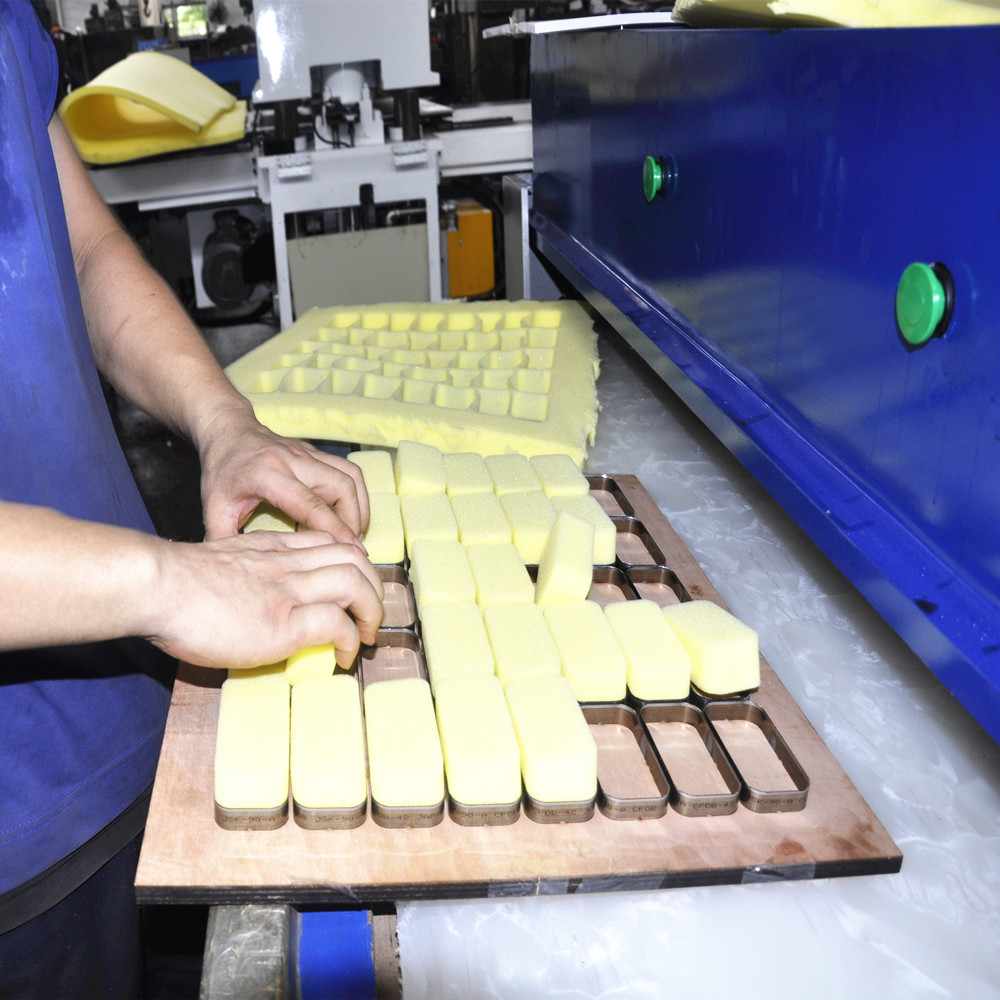

used for die cutting foam,cleaning sponge,EVA,EPE,scouring pad material and so on.
What advantages of our foam cutting machine?
2.main advantages
1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area.
2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.
3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.
4.Central automatic lubrication system, increases machine durability, prolong the working time.
5.Suitable for single-layer or multi-layer sheet or roll materials.
What technical data of our foam cutting machine?
foam product making hydraulic eva foam cutting machine
3.Technical data
|
Models |
HG-B30T/63'' |
|
Input power source |
220V/380V /415V |
|
Cutting Area(mm) |
610*1600 mm or 610*1220mm or custom |
|
Machine Dimension(mm) |
1950*1320*1260mm |
|
Stroke(mm) |
50-240mm |
|
Operation precision |
±0.01mm |
|
Motor power(kw) |
2.2kw |
|
Machine Weight(kg) |
2000kg |
|
Cutting Force |
30Tons,40Tons,50Tons or custom |
foam product making hydraulic eva foam cutting machine
4.after-sale service
1.During the first year,all parts are for free,except the consumables and artificially damaged.
2.We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.we also can provide oversea service.
3.You are also welcomed to our plant for training.We will responsible for the restaurant and meals,the training is for free.
4.We manufacture many embossing machines and hydraulic cutting machines.Such as,four-column plane cutting,gantry,roller cutting.Please find more info on our website.
5.We welcome you come to visit our plant,give us your suggestions,we will try our best to satisfy you.
Agent wanted
We want agent from all over the world,we welcome agent come to our plant for business negotiation.We give agent competitive price and guarantee the quality,it ’ s good that you can do after sale service in your area for customer convenience.
We appreciated that if you can supply following details,so we can give you more useful suggestion:
1.The cutting size(width*length)?
2.The minimum and maximum cutting thickness?
3.The Cutting material?
5.machine photo
6.working photo
