Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOKO
-
Wireless technology:
-
WIFI&BLE
-
Support Service:
-
ODM/OEM/White-label/firmware flashed/logo print
-
Material:
-
ABS+PC
-
System requirements:
-
Android 4.1 or higher, iOS 8 or higher
-
Color:
-
White/Black/can be customized
-
Certificate:
-
CE/ROHS/FCC
-
Warranty:
-
1 Year
-
Product name:
-
gateway
-
Weight:
-
0.2kg
-
Dimensions:
-
38x42x69mm
Quick Details
-
Chipset:
-
esp32
-
Application:
-
gateway
-
Model Number:
-
MK110
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOKO
-
Wireless technology:
-
WIFI&BLE
-
Support Service:
-
ODM/OEM/White-label/firmware flashed/logo print
-
Material:
-
ABS+PC
-
System requirements:
-
Android 4.1 or higher, iOS 8 or higher
-
Color:
-
White/Black/can be customized
-
Certificate:
-
CE/ROHS/FCC
-
Warranty:
-
1 Year
-
Product name:
-
gateway
-
Weight:
-
0.2kg
-
Dimensions:
-
38x42x69mm
Gateway solution ODM/OEM manufacturer Mass market esp32 wifi BLE gateway scan ble sensor beacon
The plug can be programmed to communicate with your servers.
The plug is approved UL(UL#:E501497&E499341)!
1.Introduction
MK110
is a new type of small BLE gateway socket
integrating WIFI and BLE wireless communication technology.With the mini size,it is more convenient for people to use it.And its technology parameters perform well,the maximum scanning distance of BLE is up to 130m.
MK110 scans BLE devices nearby
to gather location or temperature information by BLE,and then uploads these messages to the cloud servers with WIFI,so as to realize indoor positioning and environment monitoring.
2.Feature
- U.S. type
- Mini size,lightweight
- Build in ESP32 module integrating WIFI&BT wireless techonoly
- The maximum scanning distance of BLE can reach 130m
- Support OTA software upgrade
- Support multiple server platforms such as EMQTT, AWS, ALI,also provide configuration protocol for customers to access their own server platform
- Provide IOS and android SDK for customers to develop their own APP
- Schematic diagrams are available for customers to develop firmware
- UL/ FCC certification
3.Basic Parameter
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | Wireless technology | BLE&WIFI | |
| 2 | Input voltage | 120VAC | |
| 3 | Output voltage | 120VAC | |
| 4 | Max load current | 15A | |
| 5 | Max load | 1800W | |
| 6 | Operation temperature& humidity | 0ºC~40 ºC/10%~90% | |
| 7 | Plug type | US | |
| 8 | Dimension | 42x38x69mm |
4.Technology parameter
4.1 WIFI
| NO. | Type | Desciption | Remark |
|---|---|---|---|
| 1 | WIFI protocol | 802.11b/g/n | |
| 2 | Frequence band | 2.4Ghz | |
| 3 | Coverage | <100m | Open and no shielding space |
| 4 | Transmission power | 11n MCS7 13dB,11b 18.5dB |
4.2 BLE
| NO. | Type | Desciption | Remark |
|---|---|---|---|
| 1 | BT standard | V4.2 BLE | |
| 2 | Max scanning distance | 130m | Open and no shielding space |
| 3 | Max scanning devices quantity | 350/min | |
| 4 | BLE scanning rate | 150times/s | |
| 5 | Receiving sensitivity | -97dB |
4.3 Hardware Parameter
| NO. | Type | Desciption | Remark |
|---|---|---|---|
| 1 | ESP32 Module | BLE&WIFI | |
| 2 | RGB | Different colors used to distinguish the device status | Tri-colors RGB |
| 3 | Button | Reset&set BLE broadcast on/off |
4.4 Software Parameter
| NO. | Type | Desciption | Remark |
|---|---|---|---|
| 1 | Communication protocol | MQTT V3.1.1 | |
| 2 | Encription protocol | TLS V1.2 | |
| 3 | Encription mode | OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK | |
| 4 | Firmware upgrade mode | OTA |
4.5 Indicator Status
| NO. | Type | Desciption | Remark |
|---|---|---|---|
| 1 | Blue and green lights flash alternately once | Factory reset successsfully | |
| 2 | Indicator light is off | Plug is not powered on/Plug is powered on but BLE is off | |
| 3 | Flash green | BLE is on and broadcasting data | |
| 4 | Solid green | APP successfully connected to the device BLE | |
| 5 | Flash blue | Device is connecting to network or server | |
| 6 | Solid blue | Device is successfully connected to server |
4.6 Button Function
- Short press button: Set the BLE broadcast status. For devices that not connected to network, short press button can change the BLE broadcast status.
- Long press button for 10s: restore factory settings. In any case after the device powered on, press the button and hold for 10s to enter the factory reset.
4.7 Production Appearance

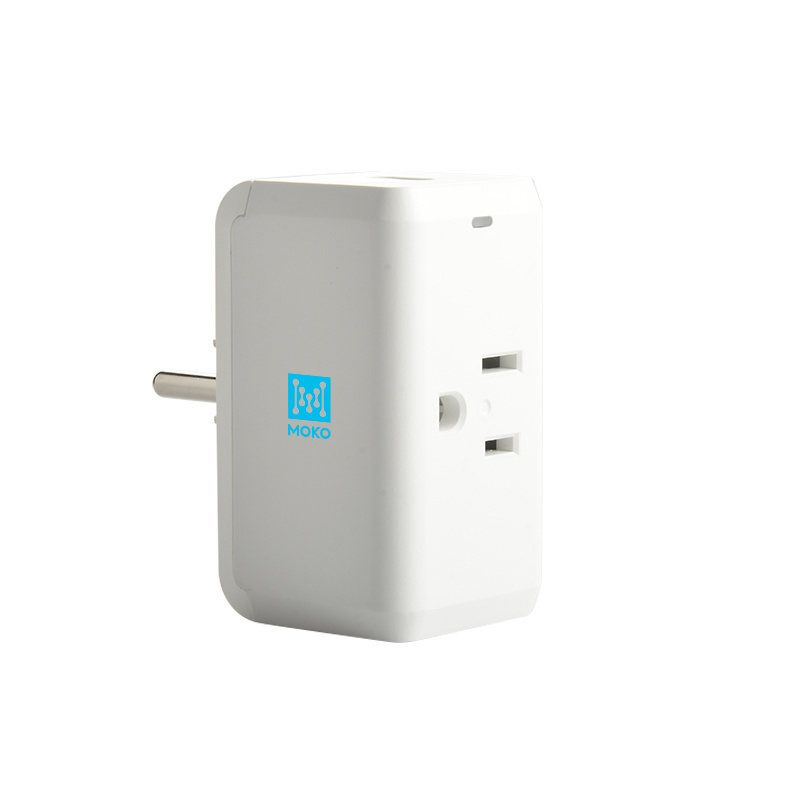

4.7.1 Production picture
4.7.2 Dimensions
All units are mm,total volume is 38x42x69mm
What's MOKO advantage?
*Can make custom upgrades existing features(function development or customized firmware)
*Can support multiple wireless communication ways,including Wi-Fi,BLE,Lora etc.
*Can provide related SDK and configuration app(IOS&Android)
*Can support connect to multiple cloud platform(Amazon/MS Azure/Google etc)
*Can customize enclosure
*Can design packaging box,label, etc
*Can communicate with certification authority directly if you have any needs
MOKO could provide one-step solution for IOT plug.
Q1:Could you provide the design solution for us?
A:Yes,we can custom the product according to your requirement
Q2: What kind of solution you can offer?
A:1.PCB Design and Manufacturing
2.Enclosure Design and Manufacturing
3.Function Development and Customized Firmware
4.Customized APP
5.Package Design and Manufacturing
6.Certification services
Q3:How to work with you?
A:1.You provide
the your requirement then we confirm it.
2.Establish the project and R&D department research and development
3.Confirm the first sample and testing
4.Modifing the first sample then confirm the final one
5.Mass production
Q4:
What is your MOQ
?
A:
For our existing products,there are no MOQ,we can provide you samples to test our quality first.
Q5: How long is your products quality warranty?
A: We provide one year factory quality warranty.
