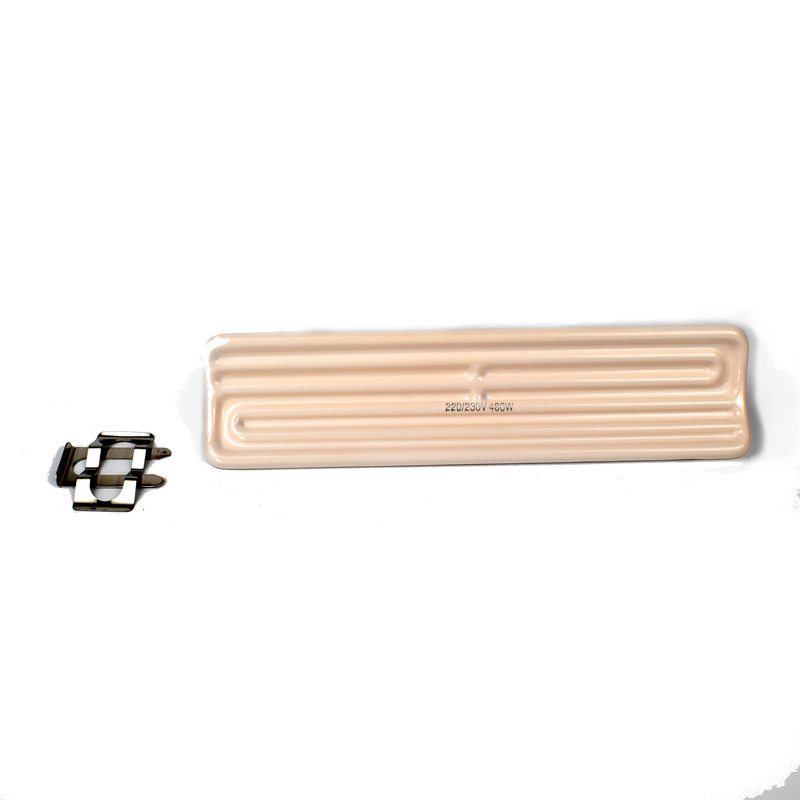

BRIGHT 230V 400W 245*60mm Electric Curved Shape IR Ceramic Infrared Heater Plate Element

BRIGHT 230V 400W 245*60mm Electric Curved Shape IR Ceramic Infrared Heater Plate Element

FOB Reference Price: Get Latest Price

≥5 Pieces

US $7

≥50 Pieces

US $6

≥500 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Industries:: Plastic heating, Barbecue stove, sauna, Food insulation

Place of Origin:: Jiangsu, China

Brand Name:: BRIGHT

Dimension(L*W*H):: 245*60mm/Customized

Weight:: 0.25 KG

Working Temperature Range:: 1 - 750 ℃

Core Components:: Heating Wire

Product Name:: Infrared Ceramic Heater

Element Type:: Trough / Flat / Hollow

Thermocouple:: K or J type

Color:: White, Pink,Black,Yellow

Power:: 250~1000W

Resistance:: Cr20Ni80

Accessories for option:: Reflector or Thermocouple

Average Operating Life:: Up to 10,000 hrs

Certification:: CE, Rohs, ISO9001

Customized service:: Accept customized service

Quick Details

Type:: Infrared Heater

Power Source:: Electric

Voltage:: 230V/Customized

Applicable Industries:: Plastic heating, Barbecue stove, sauna, Food insulation

Place of Origin:: Jiangsu, China

Brand Name:: BRIGHT

Dimension(L*W*H):: 245*60mm/Customized

Weight:: 0.25 KG

Working Temperature Range:: 1 - 750 ℃

Core Components:: Heating Wire

Product Name:: Infrared Ceramic Heater

Element Type:: Trough / Flat / Hollow

Thermocouple:: K or J type

Color:: White, Pink,Black,Yellow

Power:: 250~1000W

Resistance:: Cr20Ni80

Accessories for option:: Reflector or Thermocouple

Average Operating Life:: Up to 10,000 hrs

Certification:: CE, Rohs, ISO9001

Customized service:: Accept customized service

Products Description

Product Name	Infrared Ceramic Heater
Color	White, Pink,Black,Yellow
Thermocouple	K or J type
Element Type	Trough / Flat / Hollow
Resistance	Cr20Ni80
Voltage	110V/120V/220V/230V/240V/380V/450V
Wattage	Customized
Infrared wave length	2 to 10 micron (far infrared wave)
Max. Operating temp	750 ℃
Wattage tolenrance	±5%
Voltage tolenrance	±5%
Sheath material	High thermal shock resistance ceramic material

Features

★1.Durable, splash-proof, non-corrosive finish.

★2.Watt densities from 3 w/cm² (tolerance within +/- 2% ).
★3.Maximum temperature output is 1292 F (700 C.).
★4.Available color in white/ black/yellow.
★5.Standard voltages: 220/230v.
★6.Estimated life in excess of 10,000 hours.
★7.Available With thermocouple & without thermocouple.

Application

1.Pet healthcare, nesting, swine.

2.Anti moisture systems.
3.Superb Baking and drying performance,more applicable in winter.
4.Provide the reptiles to imitate the natural infrared sun and heat.

Order Notification

Order Guidance

Welcome your inquiry, we provide cutomized service. Pls tell us the following specifications in your inquiry as far as possible.
1. Voltage :110V/120V/220V/230V/240V/380V/450V 2. Wattage:Customized.
3. Color : Yellow. black or white, ect.
4. Type : Hollow/Flat/ARC/ bulb.
5. Applicatio.

Multi Specification Styles

Different shape

They come in different shapes. A flat surface spreads the infrared energy over a wider area, while a concave surface focuses the energy more to a desired spot.

Different color

Ceramic heaters come in different colors which may indicate the temperature range. Some of these heaters also change color when hot in order to easily recognize failed elements in a heater bank.

Packaging and Delivery

Packaging

Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
