- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/110V, 220V/50HZ,110V/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Dimension(L*W*H):
-
1050*550*900mm
-
Weight:
-
67 KG
-
Speed(m/min):
-
0-12 (0-16)
-
Temperature Range:
-
0-300
-
Overall Conveyor Loading (kg):
-
≤10
-
Sealing Width (mm):
-
10
-
Printing Type:
-
Solid Ink Roller
-
External Dimensions (mm):
-
1050*550*900
-
Conveyor Table Size (mm):
-
930*153
-
Certificate:
-
CE
Quick Details
-
Packaging Type:
-
Bags, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V/110V, 220V/50HZ,110V/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Dimension(L*W*H):
-
1050*550*900mm
-
Weight:
-
67 KG
-
Speed(m/min):
-
0-12 (0-16)
-
Temperature Range:
-
0-300
-
Overall Conveyor Loading (kg):
-
≤10
-
Sealing Width (mm):
-
10
-
Printing Type:
-
Solid Ink Roller
-
External Dimensions (mm):
-
1050*550*900
-
Conveyor Table Size (mm):
-
930*153
-
Certificate:
-
CE
Product Description
Description:

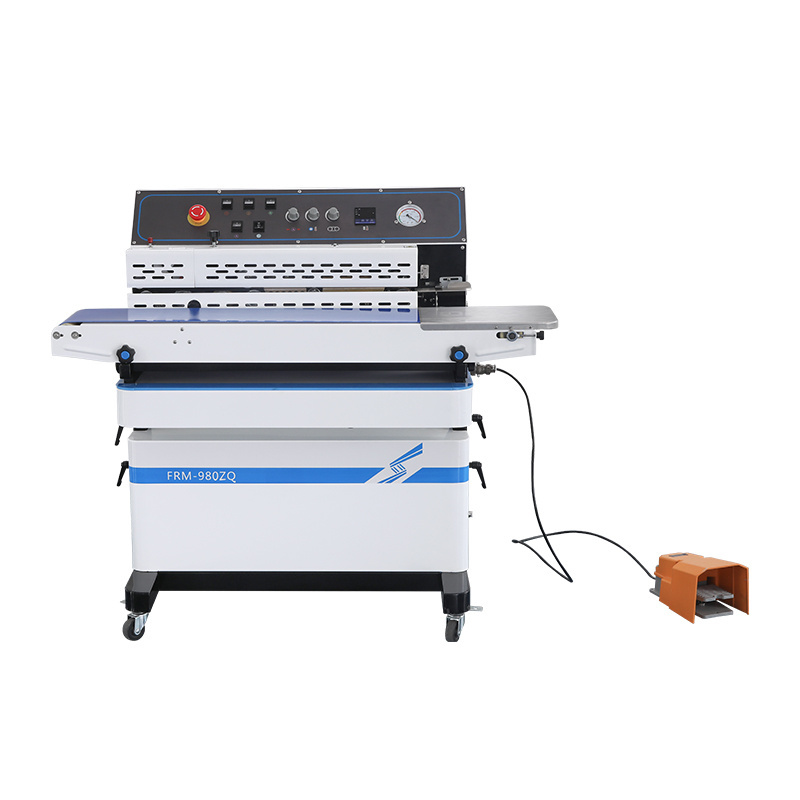

1. FRM-980ZQ series Nitrogen Flushing Packaging Machine can seal any heat-sealable materials.
2. Two Mode: Exhaust gas+Sealing;Gas Flushing+Sealing.
3. The print wheel equipped to the machine can be used for both R arrange and T arrange of types.
4. For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT). If necessary, counting device can be equipped as well.
Features:
1. Constant temperature control and temperature is adjustable.
2. Stepless speed regulation
3. Solid-ink coding is featured by high definition, various selectable colors, instant dry while printing, strong adhesive property.
Application:
FRM-980ZQ series Nitrogen Flushing Packaging Machine is applied to pack fragile or bulking objects generally.
1. FRM-980ZQ series Nitrogen Flushing Packaging Machine can seal any heat-sealable materials.
2. Two Mode: Exhaust gas+Sealing;Gas Flushing+Sealing.
3. The print wheel equipped to the machine can be used for both R arrange and T arrange of types.
4. For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT). If necessary, counting device can be equipped as well.
Features:
1. Constant temperature control and temperature is adjustable.
2. Stepless speed regulation
3. Solid-ink coding is featured by high definition, various selectable colors, instant dry while printing, strong adhesive property.
Application:
FRM-980ZQ series Nitrogen Flushing Packaging Machine is applied to pack fragile or bulking objects generally.
Product Paramenters
|
|
FRM-980ZQ
|
|
Voltage (V/Hz)
|
AC 220/50 110/60
|
|
Moter Power (W)
|
50
|
|
Suction Pump Power(W)
|
750
|
|
Sealing Power (W)
|
300*2
|
|
Printing Heating Power (W)
|
40×2
|
|
Sealing Speed (m/min)
|
0-12 (0-16)
|
|
Sealing Width (mm)
|
10
|
|
Temperature Range (℃)
|
0-300
|
|
Printing Type
|
Solid Ink Roller
|
|
Distance from Sealing Center to Conveyor Table (mm)
|
10-40
|
|
Distance from Base Plate to Interior Conveyor(mm)
|
68-85
|
|
Conveyor Table Size (L×W) (mm)
|
930×153
|
|
Overall Conveyor Loading (kg)
|
≤10
|
|
External Dimensions (L×W×H) (mm)
|
1050×550×900
|
|
Net Weight (kg)
|
67
|
Product packaging
|
Model
|
FRM-980ZQ
|
|
Pcs/CTN (pc)
|
1
|
|
Package Type
|
W/C
|
|
Gr. Wt. (kg)
|
94
|
|
Net. Wt. (kg)
|
80
|
|
Dimensions(cm)
|
110*62*120
|
|
Volume each set (cbm)
|
0.818
|
