Quick Details
-
Specification:
-
any size with your request
-
Length:
-
2meters or your request
-
Thickness:
-
1mm-5mm or up to your request
-
Standard:
-
ISO/CE, ISO4427, AS/NZS4437, DIN8074
-
Pressure:
-
0.6mpa, 0.8mpa, 1.0mpa, 1.6mpa, 2mpa
-
Certificate:
-
SNI, CE, ISO, GOST
-
Purpose:
-
water supply and drainage, irrigation
-
Color:
-
Black/ blue
-
Sample:
-
Freely Supplied
-
Delivery Time:
-
5-10 Days
-
OEM:
-
Accpet OEM Orders
-
Package:
-
PP Bag+Cardboard+rope
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
REHOME
-
Specification:
-
any size with your request
-
Length:
-
2meters or your request
-
Thickness:
-
1mm-5mm or up to your request
-
Standard:
-
ISO/CE, ISO4427, AS/NZS4437, DIN8074
-
Pressure:
-
0.6mpa, 0.8mpa, 1.0mpa, 1.6mpa, 2mpa
-
Certificate:
-
SNI, CE, ISO, GOST
-
Purpose:
-
water supply and drainage, irrigation
-
Color:
-
Black/ blue
-
Sample:
-
Freely Supplied
-
Delivery Time:
-
5-10 Days
-
OEM:
-
Accpet OEM Orders
-
Package:
-
PP Bag+Cardboard+rope
I.Details:
|
ITEMS |

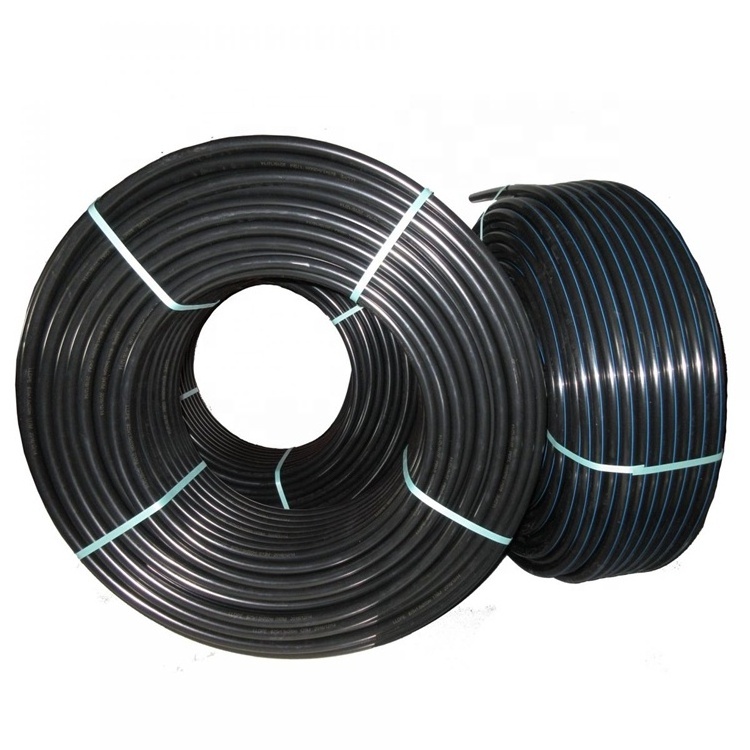

HDPE PIPE |
|
MATERIAL |
POLYETHYLENE (PE100) |
|
PRESSURE RATING |
PN5,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25 |
|
SIZE RANGE |
16-630MM |
|
STANDARD |
ISO 4427-2, EN 12201-2, AS/NZS 4130, BS 6920, GB/T 13663. |
|
COLORS |
BLACK, BLUE |
|
CERTIFICATE |
ISO14001, OHSAS18001, ISO9001, CE |
|
CONNECTION |
SOCKET FUSION, BUTT FUSION, ELECTRIC FUSION |
II.Advantage:
(1) High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(2) Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
(3) Corrosion Resistant: resist chemical matters or electron chemical corrosion.
(4) Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
(5) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
(6) Long Life: more than 50 years under normal conditions.
(7) Recycled and Environment-friendly.
III.Specification:
|
Spec(mm) |
Thickness(mm) |
Package(m/bale) |
|||
|
S5 1.25mpa |
S4 1.6mpa |
S3.2 2.0mps |
S2.5 2.5mpa |
||
|
20 |
2.0 |
2.3 |
2.8 |
3.4 |
120 |
|
25 |
2.3 |
2.8 |
3.5 |
4.2 |
120 |
|
32 |
2.9 |
3.6 |
4.4 |
5.4 |
80 |
|
40 |
3.7 |
4.5 |
5.5 |
6.7 |
60 |
|
50 |
4.6 |
5.6 |
6.9 |
8.3 |
40 |
|
63 |
5.8 |
7.1 |
8.6 |
10.5 |
24 |
|
75 |
6.8 |
8.4 |
10.3 |
12.5 |
16 |
|
90 |
8.2 |
10.1 |
12.3 |
15.0 |
8 |
|
110 |
10.0 |
12.3 |
15.1 |
18.3 |
8 |
|
160 |
14.6 |
17.9 |
21.9 |
26.6 |
4 |
