Quick Details
-
Grade:
-
Galvanized
-
Place of Origin:
-
Guangdong, China
-

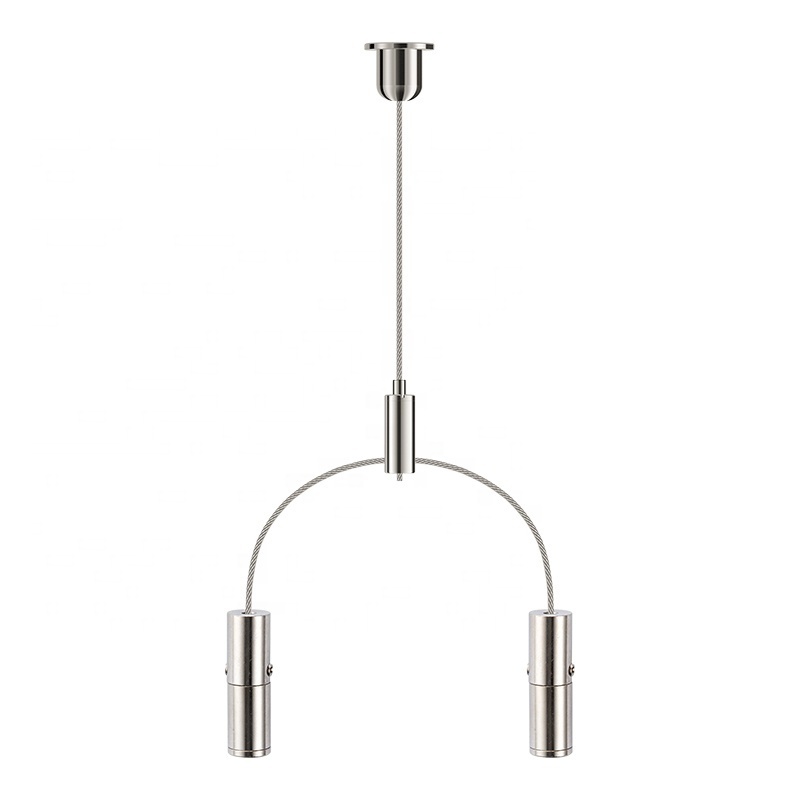

Product name:
-
Self Locking Steel Wire Y Shape Pendant Light Kit Light Suspension Kit
-
material of cable:
-
stainless steel or galvanized
-
length:
-
as requirement 2m-3m
-
breaking load:
-
20-50kg
-
cable construction:
-
1*7,7*7,1*19,7*19,etc
-
diameter of cable:
-
1.2mm,1.5mm,etc.
-
key word:
-
Ceiling Lamp Hanging Kit
-
package:
-
carton
-
MOQ:
-
100~500pcs
Quick Details
-
Steel Grade:
-
Galvanized
-
Type:
-
galvanized
-
Tolerance:
-
±1%
-
Grade:
-
Galvanized
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Self Locking Steel Wire Y Shape Pendant Light Kit Light Suspension Kit
-
material of cable:
-
stainless steel or galvanized
-
length:
-
as requirement 2m-3m
-
breaking load:
-
20-50kg
-
cable construction:
-
1*7,7*7,1*19,7*19,etc
-
diameter of cable:
-
1.2mm,1.5mm,etc.
-
key word:
-
Ceiling Lamp Hanging Kit
-
package:
-
carton
-
MOQ:
-
100~500pcs
|
1.Diameter |
1.2mm/1.5mm |
Custom-made available |
|
2.construction |
7*7,7*19,1*7,1*19 etc
|
|
|
3.material |
stainless steel or galvanized steel or other |
|
|
4.MOQ |
500pcs |
|
| 5.length | 2M-3M or as requirement | |
| 6.type | hanger wire/lighting cable | |
| 7.coating |
PVC,PU,PE,nylon,etc |
|
|
8.end parts of fittings |
a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc |
|
|
9.Lead time |
7days if there were enough material in stock |
|
|
10.sample |
Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. |
|
|
11.Application |
1.Suspensions and ceiling Wire ropes are made of stainless steel matched with nickel plated copper lighting ceiling and locking fittings . 2.One side of the ceiling wire ropes can be locked to the wall ,and the other side can hang and lifting lights or decorations ,and the length can be adjustable . Suspensions and ceiling Wire ropes can be fashionable and attractive |
|
|
12.specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost. |
|
how to choose material: 1stain 1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
|
Diameter |
construction |
weight(100m) |
Minimum Breaking load(N) |
|
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
|
7*7 |
0.393 |
650 (65kg) |
|
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
|
7*7 |
0.566 |
950(95kg) |
|
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
|
7*7 |
0.884 |
1500(150kg) |
|
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
|
7*7 |
1.273 |
2100(210kg) |
|
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
|
7*7 |
1.527 |
2650(265kg) |
|
2.4mm |
1*19 |
2.851 |
5650(565kg) |
|
|
7*7 |
2.264 |
3800(380)kg |
|
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
|
7*7 |
2.381 |
4100(410kg) |
|
3.2mm |
7*7 |
4.024 |
6850(685kg) |
|
|
7*19 |
3.901 |
6800(680kg) |
|
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
|
7*7 |
5.502 |
9600(960kg) |
|
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
|
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
|
4.5mm |
7*7 |
7.958 |
13500(1350kg) |
|
4.8mm |
7*19 |
8.778 |
15300(1530kg) |
|
6.0mm |
7*19 |
8.716 |
23900(2390kg) |
