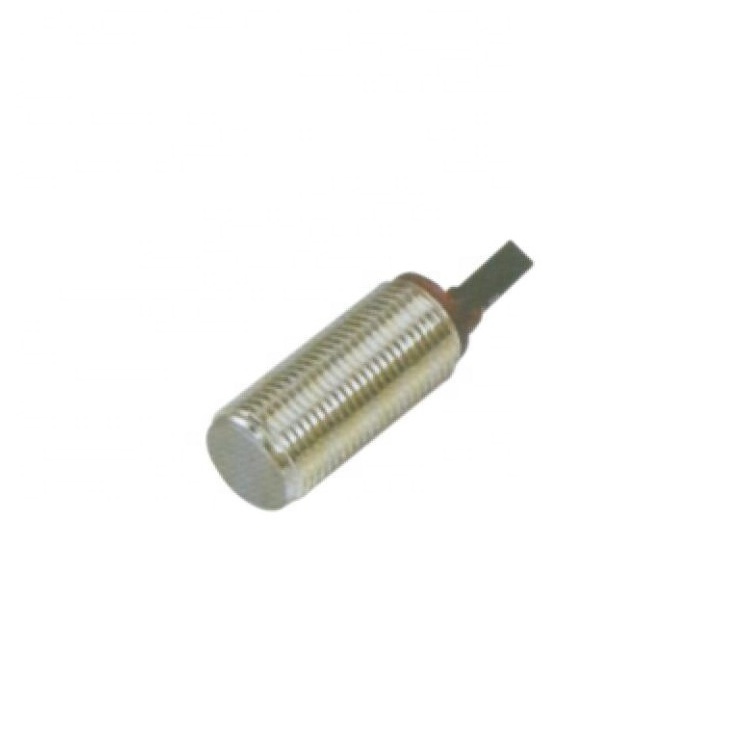

NJK-5002C NPN NO Normally Open DC6-36V Inductive Electric Magnetic Switch 10mm Hall Effect Sensor

NJK-5002C NPN NO Normally Open DC6-36V Inductive Electric Magnetic Switch 10mm Hall Effect Sensor

Model: NJK-5002C Supply voltage : 5-30VDC; Detection distance :10mm (effective detection distance 0-10mm) ;

Output : NPN three lines Output state normally open (NO)

Thread Diameter: 12MM ; thread length: 32MM ; Load current :150MA (no more than)

Detect objects : metal material ; Product Material: Metal ;parts: Copper plastic components; PBT External leads:1.2 m (standard, others according to customer requirements) ;Output indication: LED (red);

Net Weight : 50g ;Package Content : 1 x Hall Effect Sensor

Product description

Feature

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

1. Switch category(LJ: inductance type; LJC: capacitance type; SM: Hall type; AM: safety explosion-proof type; XM: mimic linear type; HM: reed type)

2. Outward appearance code(C: Cylinder type; F: Angular column type and plane installation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)

5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)

Model: NJK-5002C;Supply voltage:5-30VDC ;Detection distance:10mm (effective detection distance 0-10mm);Load current :150MA (no more than) ;Output form: NPN three lines Output state normally open (NO);Detect objects: metal material; Features: magnetic induction input, digital voltage signal output Wide supply voltage range High frequency Long life, small volume, convenient installation Can directly connect the transistor and TTL,MOS and so on logic circuit

Note: If you need other items, please check our Specification Sheet and inform us Item No. by mail, thanks!

When proximity switch is close to some target object, it will send out control signal. It is widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect. It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.
