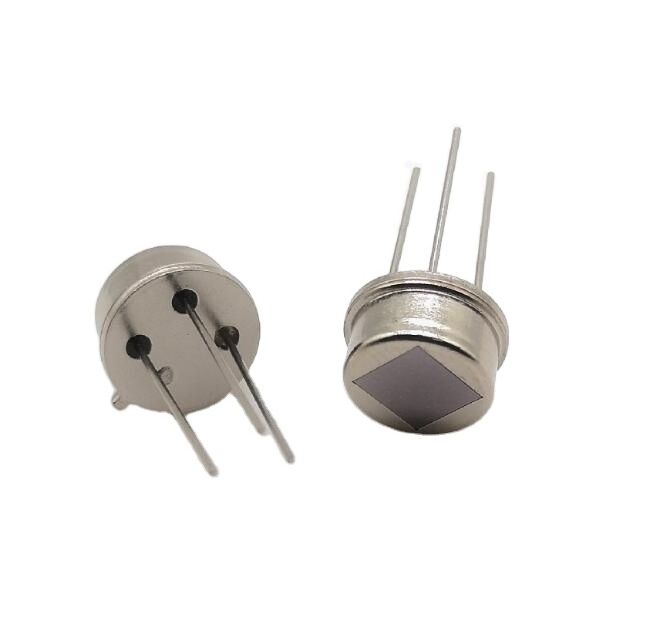

Wide rang Square Window Quad Elements pir probe sensor D205B for human detect lights, sensor switch
PIR motion sensor
Item No.: D205B
Quad sensing elements are applied to suppress the interference resulting from circumstance temperature variation, to raise signal output and to be sensitive in all directions.
This type senor has the technical merits of both single and dual type. As a result, the operating stability of the sensor is greatly improved.
Typical Applications
1.automatic light switch control,
2.security systems, ir camera
3.burglar alarms,
4.led bulb, led tube, street lgihts, sensor switch ,
5.intellectualized toys, etc.,
6.especially in the field of ceiling mount applications.
Data sheet for PIR D205B
| Recommended Model | D205B big window |
| Encapsulation Type | TO-5 |
| IR Receiving Electrode | 0.7×2.4mm, 4elements |
| Window Size | 4.9×4.9mm |
| Spectral Response | 5-14µm |
| Transmittance | ≥75% |
| Output Signal[Vp-p] | ≥5000mV |
| Sensitivity | ≥4300V/W |
| Detectivity (D*) | 1.6 ×108 cmHz1/2/W |
| Noise[Vp-p] | <70mV |
| Output Balance | <10% |
| Offset Voltage | 0.3-1.2V |
| Supply Voltage | 3-15V |
| Operating Temp | -30-70ºC |
| Storage Temp | -40-80ºC |
Working Principle
The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the sensor is greatly improved.
we can accept all sorts of functions with customized products.
for example: the size/output signal/Operating voltage/power etc would be optional.
Our company is a factory, we concentrate on this business more than 20years, so there have many types, KP506B,RE200B,KP500B, LHI778, LHI878, LHI968, D203S, D203B and many others. If you are interested in, please send inquiry to us.
