Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa
-
Voltage:
-
220/380/415/440V
-
Dimension(L*W*H):
-
Based on the model
-
Name:
-
Plastic Screw Conveyor
-
Type:
-
Horizontal & inclined
-
Application:
-
Grain, coal, chemical, powder etc.
-
Diameter:
-
200mm
-
Max. Length:
-
40m
-
Pitch:
-
200mm or 160mm
-
Rotate speed:
-
50rpm, 84rpm, 130rpm or as your demands
-
Loading capacity:
-
as required
-
Motor brand:
-
YuTong, ABB, SIEMENS etc.
-
Color:
-
Costomized
-
Certification:
-
CE, ISO9001
Quick Details
-
Power:
-
0.55- 22KW
-
Warranty:
-
2 years
-
Width or Diameter:
-
150-800mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa
-
Voltage:
-
220/380/415/440V
-
Dimension(L*W*H):
-
Based on the model
-
Name:
-
Plastic Screw Conveyor
-
Type:
-
Horizontal & inclined
-
Application:
-
Grain, coal, chemical, powder etc.
-
Diameter:
-
200mm
-
Max. Length:
-
40m
-
Pitch:
-
200mm or 160mm
-
Rotate speed:
-
50rpm, 84rpm, 130rpm or as your demands
-
Loading capacity:
-
as required
-
Motor brand:
-
YuTong, ABB, SIEMENS etc.
-
Color:
-
Costomized
-
Certification:
-
CE, ISO9001

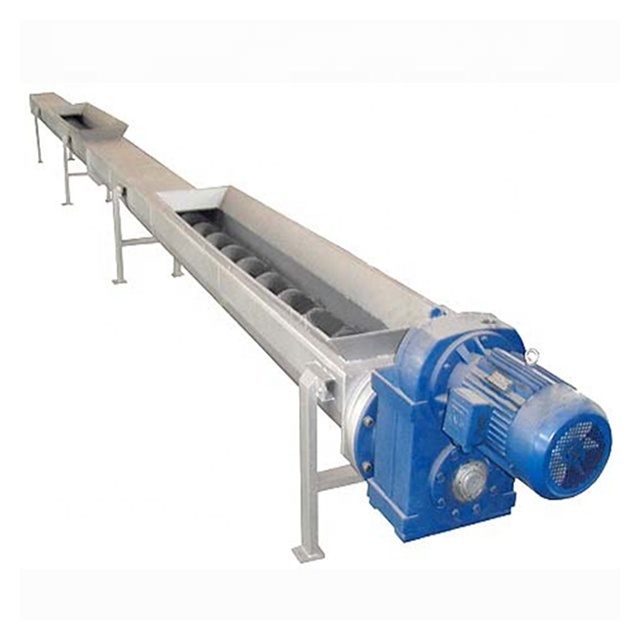

Factory Direct Sale Plastic Screw Conveyor Spiral Auger Cement Conveying
Advantages:
1. Efficient delivery : small diameter , high rotating speed, large transmission capacity, variable pitch of spiral body, and small resistance of intermediate bearing make loading material smoothly, quickly and evenly.
2. Random arrangement : conveyor has good integral rigidity and can transport the products flatly or steeply inclined, it can be connected with its corollary equipment directly , and can be set up and dismantled easily with small floor space.
3. Good lubrication : low oil lubricating sliding tile, multilayer labyrinth oil seal design and integral lubricating system composed of of oil pump, distributor and pipeline are convenient and can completely lubricate all the running parts.
4. Reliable sealing : the dust cover of reducer is reliable for preventing leakage which can protect reducer and create good working condition. Improved peephole can prevent water seepage and material leakage.
Product accessories:
|
LS type |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
|
GX type |
|
200 |
250 |
300 |
400 |
500 |
|
|
|
|
Screw diameter(mm) |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
|
Sc Screw pitch(mm) |
160 |
200 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
|
Rotate speed(r/min) |
60 |
50 |
50 |
50 |
50 |
50 |
50 |
45 |
35 |
|
Delivery value(φ=0.33m³/h) |
7.6 |
11 |
22 |
36.4 |
66.1 |
93.1 |
160 |
223 |
304 |
|
Pd1=10m(kw) Power |
1.5 |
2.2 |
2.4 |
3.2 |
5.1 |
5.1 |
8.6 |
12 |
16 |
|
Pd1=30m(kw) Power |
2.8 |
3.2 |
5.3 |
8.4 |
11 |
15.3 |
25.9 |
36 |
48 |
