Quick Details
-
Max. Loading Capacity:
-
200-5000L
-
Weight (KG):
-
250 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JinFeng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
0.75 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
homogenizer mixing blender boiler
-
Application scope:
-
High Viscosity Product
-
Heating method::
-
Electric or Steam
-
Button parts::
-
DELIXI
-
PLC system::
-
Delta
-
Motor::
-
Siemens
-
Polishing grade::
-
>300U
-
Power(W):
-
0.75KW~45KW
Quick Details
-
Barrel Volume (L):
-
200 L
-
Max. Loading Volume (L):
-
200 L
-
Range of Spindle Speed(r.p.m):
-
1 - 3000 r.p.m
-
Max. Loading Capacity:
-
200-5000L
-
Weight (KG):
-
250 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JinFeng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
0.75 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
homogenizer mixing blender boiler
-
Application scope:
-
High Viscosity Product
-
Heating method::
-
Electric or Steam
-
Button parts::
-
DELIXI
-
PLC system::
-
Delta
-
Motor::
-
Siemens
-
Polishing grade::
-
>300U
-
Power(W):
-
0.75KW~45KW
Top sale industrial CE electric steam heating cosmetic shampoo liquid soap paste mixer machine
Characteristic
High speed disperser, strong mixing scattered viscous, solid liquid materials production can quickly dissolve in the liquid AES, AESA, LSA of refractory materials, save the energy consumption and shorten the production cycle.
Stepless speed change device, is used in the main mixing in low temperature, high viscous when reducing bubble formation; Gear pump cycle discharging device, can speed up the product formation and rapid discharge.
Use
PMC stirring reaction tank is mainly used in liquid detergent, such as detergent, shampoo, shower gel, etc.) the configuration of the product, the reaction machine mixing, dispersing, heating and cooling, pump, and other functions into an organic whole, is the ideal equipment manufacturer to make liquid.

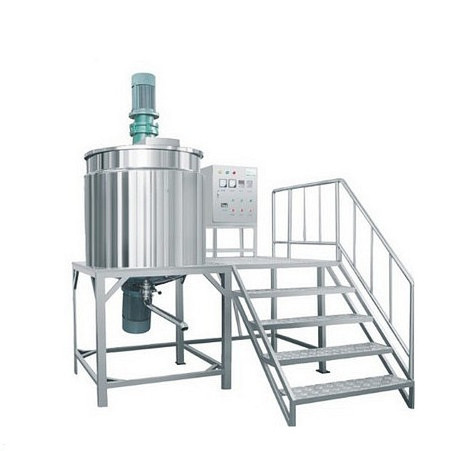

Reference Picture
Technical parameter
| Specification | Volume (L) | Blending Power (KW) | Blending rotation speed (r/min) | Homogenizing Power(KW) | Homogenizing rotation speed (r/min) |
Heating
method |
| PMC-200 | 200 | 1.5 | 0~65 | 3 | 3000 |
Steam Heating or Electric heating |
| PMC-500 | 500 | 2.2 | 0~65 | 4 | 3000 | |
| PMC-1000 | 1000 | 2.2 - 4 | 0~65 | 7.5 | 3000 | |
| PMC-1500 | 1500 | 4 - 5.5 | 0~65 | 11 | 3000 | |
| PMC-2000 | 2000 | 5.5 | 0~65 | 11 | 3000 | |
| PMC-3000 | 3000 | 7.5 | 0~53 | 15 | 3000 | |
| PMC-5000 | 5000 | 11 | 0~53 | 22 | 1500 |
Application field
1. Package: PE film cover inside and then plywood case.
2. Accept terms: EXW , FOB , C&F , CIF , etc.
3. Shipping by Express , Air or Sea based on customers' requirements and lowest cost solution.
Terms & Conditions:
Payment: T/T 30% in advance, balance paid before shipment,video inspection or person inspection before shipment
Delivery: 25-30 days after receiving the deposit.
Packing: wooden case
Validity: 1year
Sales After Service:
Guaranty: One Year
One set of consumable accessories will be provided with the machine.
Before delivery, we will adjust the machine to fit for your product.
Any question, you can mail/call us at any time. And our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad.
All spare parts are always available for delivery
Manual is in English.
Installation/ Training:
The installation can be provided by theJINFENG Company. It must be after shipment and machine has arrived and factory must be ready equipped with all necessary requirements before booking installation with JINFENG Company. Our engineers will come to the site for the complete and final installation. During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure. The purchase at US$80-100/person/day plus all local transportation, accommodation, air tickets (round trip). Day charges include travel day.
Factory
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requirements.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Our Services
1. We have professional engineers and high-quality sales team who are good at English to ensure zero communication barriers to you.
2. Any damage or shortage of our goods when you receive your items, please take some photos for a witness.We will deal with it in 24 hours.
3. If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair.
4. We offer the video to you teach you how to use ,fix ,maintain this machine.
5. When the machine broken suddenly ,We offer the instruction teach you how to deal with the emergency.
Full production line for cream(for your reference)
Semi-automatic production line,
Water treatment → EDI,ultraviolet(alternative) → water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → semi-automatic filling machine → semi-automatic capping machine → semi-automatic labeling machine → inject printer → conveyor(alternative)
Automatic production line,
Water treatment → EDI,ultraviolet(alternative) → water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → automatic filling and capping machine → automatic labeling machine → inject printer
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
