Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER AUTO EQUIPMENT
-
Model Number:
-
LPB-9000E
-
Warranty:
-
24 months, 24 months
-
Product name:
-

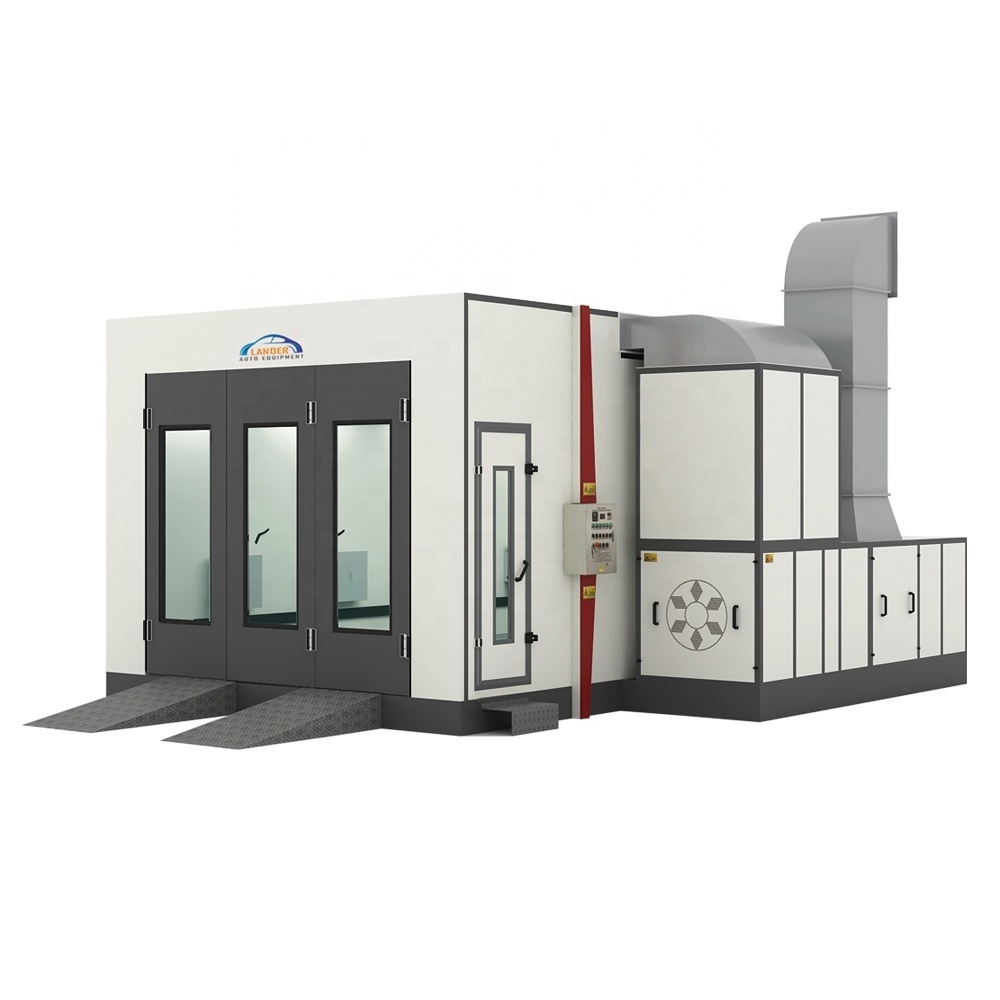

CE Approved New Design Infrared Heating Car Spray Paint Booth for Sale
-
Usage:
-
Car Painting and Baking
-
Heating System:
-
Infrared Lamps or Diesel Heating
-
Fans kind:
-
Centrifugal Fans CE
-
Lighting System:
-
LED Light
-
Illuminance:
-
≥1000LUX
-
Filters:
-
Environmental 3 Filter Process
-
Color:
-
Blue/Orange/Red/White
-
Environmental certificate:
-
CE Approved Car Spray Booth
Quick Details
-
Power:
-
38.5 KW
-
External Size:
-
7000*5350*3350mm
-
Internal Size:
-
6900*4000*2650mm
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER AUTO EQUIPMENT
-
Model Number:
-
LPB-9000E
-
Warranty:
-
24 months, 24 months
-
Product name:
-
CE Approved New Design Infrared Heating Car Spray Paint Booth for Sale
-
Usage:
-
Car Painting and Baking
-
Heating System:
-
Infrared Lamps or Diesel Heating
-
Fans kind:
-
Centrifugal Fans CE
-
Lighting System:
-
LED Light
-
Illuminance:
-
≥1000LUX
-
Filters:
-
Environmental 3 Filter Process
-
Color:
-
Blue/Orange/Red/White
-
Environmental certificate:
-
CE Approved Car Spray Booth
Product Description
|
SPECIFICATIONS FOR LPB-9000E SPRAY BOOTH
|
|
|
|
|||
|
Outside Dimensions(mm)
|
7000*5350*3350(L*W*H)
|
Inside Dimensions(mm)
|
6900*4000*2650(L*W*H)
|
|||
|
Front Door(mm)
|
2800×2600mm(W×H)
|
Service Door(mm)
|
650*1800(W×H)
|
|||
|
Total Power
|
38.5 KW
|
Voltage
|
380V/50 or 60Hz/3Ph, etc.
|
|||
|
Cabin System
|
Wall Panel
|
50mm EPS colorful steel skin board, tongue& groove style compound construction, anti-flame and heat-insulation, steel sheet thinkness: 0.476mm
|
|
|||
|
|
Ceiling Panel
|
0.8mm Galvanized Steel Sheet
|
|
|||
|
|
Basement
|
Grid Plates (Galvanized)* 2 rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame.loading weight is 600KG/wheel.
Diamond Plates (Powder Coated or Galvanized)* 3 rows. 2 ramps,each size 800x2,000mm(WxL) |
|
|||
|
|
Glass
|
5mm Safety Tempered Glass
|
|
|||
|
|
Windows
|
Square Glass Window with wide vision
|
|
|||
|
|
Front Door
|
3 folds,size is 2,800×2,600mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock
|
|
|||
|
|
Service Door
|
Size is 650×1,800mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock
|
|
|||
|
Air Make-up System
|
Air-Intake Fan System
|
2*4KW Centrifugal fan
|
|
|||
|
|
Air-Exhaust Fan System
|
Optional
|
|
|||
|
|
Air Capacity
|
24000m³/h
|
|
|||
|
|
Air Flowing Speed
|
0.25m/s in empty booth
|
|
|||
|
Purification System
|
Primary Filter
|
Filtering rate > 83%
G3 Grade(EN779),type:C16-300 ; Fibre glass filter, G3 Grade(EU-3) |
|
|||
|
|
Air-Intake Filter
|
Filtering rate > 97%
Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5) |
|
|||
|
|
Air-Exhaust Filter
|
Filtering rate > 70%
Fibre glass filter, G2 Grade(EU-3) |
|
|||
|
Heating System
|
10 units infrared curing lamps for heating, 3 lamps/unit, 1kw/lamp, each unit have a cover, a stainless steel mirror refector and 3 tubes,total 30 tubes. Infrared heat radiation have a feature of high penetration, efficient, no noise, pollution free etc.
|
|
|
|||
|
|
Max. Heating Temperature:80℃
|
|
|
|||
|
Lighting System
|
Ceiling Light
|
8 Units, total 32pcs, 36w LED lamp, with Light Fixtures, anti-explosion designed
|
|
|||
|
|
Side Light
|
Optional
|
|
|||
|
|
Illumination
|
≥1000LUX
|
|
|||
|
Control System
|
Switched Control Panel
|
Button type control box, with main switch
Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. |
|
|||
|
Accessories
|
All Hardware, Fasteners, and Sealants
|
|
|
|||
LANDER Auto Equipment is a specialists manufacturer and supplier of spraybooths and associated equipment. Our position as clear market dealers is highlighted by expertise that spans a wide range of applications, from high volume conveyorised production, car body repair and large scale special projects.
As well as being powerful force in workshop and bodyshop productivity, we have produced spraybooths that meet and exceed the highly specific demands of the aviation industries and the relentless demands of industry and manufacturers.
Our spraybooths are in operation throughout the world, creating the ultimate clean-air environments for spraying and ensuring fast drying times for fast, energy-efficient production. Also we can customize for customer based on the detailed request.
Detailed Images
Packing & Delivery
Our Service
Our Company
Certifications
FAQ
Q: How do you ganrantee the production quality?
Q: Have you exported to our country?
A: From now on, we have did business with foreign friends from 128 countries, such as USA, Canada, UK, Italy, South Africa......
Q: May I know the Lead time?
A:The lead time of our machine is 7-10 days. When you order more, we need to check the production schedule.
Q: May I know the Lead time?
A:The lead time of our machine is 7-10 days. When you order more, we need to check the production schedule.
Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
Q: What is your payment terms?
A: We accept T/T, Western Union, L/C, Alibaba Trade Assurance, etc.
A: We accept T/T, Western Union, L/C, Alibaba Trade Assurance, etc.
Q: Can you provide the whole workshop automotive equipment?
A: Yes. we can. And we have help many customers to start their body shops, some from Canada, UAE, Germany,Tailand, etc.
A: Yes. we can. And we have help many customers to start their body shops, some from Canada, UAE, Germany,Tailand, etc.
Q: Can I have a visit to your company?
A: Sure, welcome to visit us. Our factories are located in Jinan and Yantai of Shandong Province.
A: Sure, welcome to visit us. Our factories are located in Jinan and Yantai of Shandong Province.
