Quick Details
-
Encoding:
-
MPEG-4 AVC/H.264
-
Rate Control:
-
CBR/VBR
-
Sampling rate:
-
48KHz
-
Language:
-
English
-
Dimension:
-
482*300*44mm (WxLxH)
-
Weight:
-
3 kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Model Number:
-
DT-MCE-9236S-16/DT-MCE-9244S-24
-
Encoding:
-
MPEG-4 AVC/H.264
-
Rate Control:
-
CBR/VBR
-
Sampling rate:
-
48KHz
-
Language:
-
English
-
Dimension:
-
482*300*44mm (WxLxH)
-
Weight:
-
3 kg
★Modulator

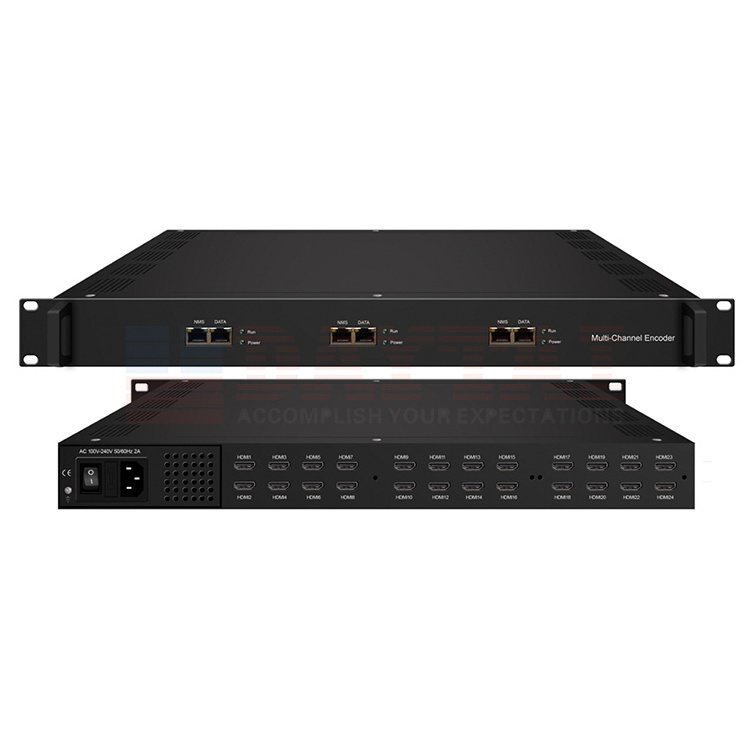

Digital TV Headend 16Way Multi-Channel Encoder,(DT-MCE-9236S-16/DT-MCE-9244S-24 ) Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 16/24 HDMI inputs with very 8 HDMI ports share
one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.Order Information:DT-MCE-9228S-8 OR DT-MCE-9236S-16 OR DT-MCE-9244S-24 is optional,Power requirements:AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz,Power Plug:European standard Plug or American standard Plug is optional.
one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.Order Information:DT-MCE-9228S-8 OR DT-MCE-9236S-16 OR DT-MCE-9244S-24 is optional,Power requirements:AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz,Power Plug:European standard Plug or American standard Plug is optional.
★
Features
⊙Support “Null PKT Filter” function
⊙IP output over UDP and RTP/RTSP protocol
⊙Support QR code, LOGO, caption insertion
⊙Control via web management, and easy updates via web
⊙16 or 24 HDMI inputs with SPTS and MPTS output (2 or 3 Encoder Modules share the same one NMS port and DATA port)
⊙MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
⊙IP output over UDP and RTP/RTSP protocol
⊙Support QR code, LOGO, caption insertion
⊙Control via web management, and easy updates via web
⊙16 or 24 HDMI inputs with SPTS and MPTS output (2 or 3 Encoder Modules share the same one NMS port and DATA port)
⊙MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
★
Specification
|
Item
|
Spccification
|
|
|
||
|
Video
|
Resolution
|
input
|
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i |
||
|
|
|
Output
|
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P |
||
|
|
Encoding
|
|
MPEG-4 AVC/H.264
|
||
|
|
Bit-rate
|
|
1~20Mbps each channel
|
||
|
|
Rate Control
|
|
CBR/VBR
|
||
|
|
GOP Structure
|
|
IP…P (P Frame adjustment, without B Frame )
|
||
|
Audio
|
Encoding
|
|
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
|
||
|
|
Sampling rate
|
|
48KHz
|
||
|
|
Resolution
|
|
24-bit
|
||
|
|
Audio Gain
|
|
0-255 Adjustable
|
||
|
|
MPEG-1 Layer 2 Bit-rate
|
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
||
|
|
LC-AAC Bit-rate
|
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
||
|
|
HE-AAC Bit-rate
|
|
48/56/64/80/96/112/128 kbps
|
||
